A High Speed Paper Cup Machine gives a cup producer a controlled way to form, seal and discharge paper cups for food-service and takeaway packaging. The most useful comparison starts with cup size, approved paper grade, sealing method, planned production rhythm and the electrical conditions available at the factory.
YG publishes three configurations for 3–16 oz cup formats. Their published speed range is 65–85 pieces per minute, while paper specifications extend from 150 g to 300 g depending on the model. Those values help a buyer narrow the configuration; a final proposal should still confirm the cup drawing, material and included tooling.
How a High Speed Paper Cup Machine Forms Paper Cups?

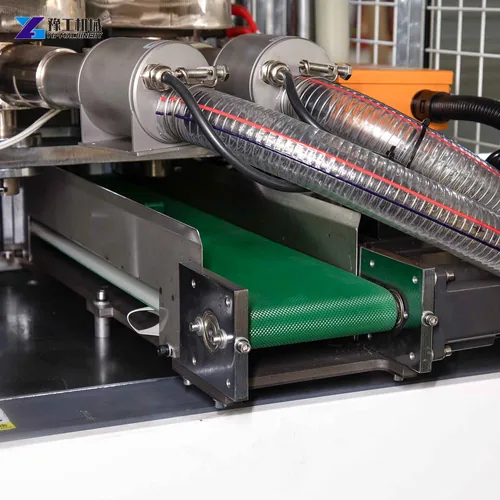

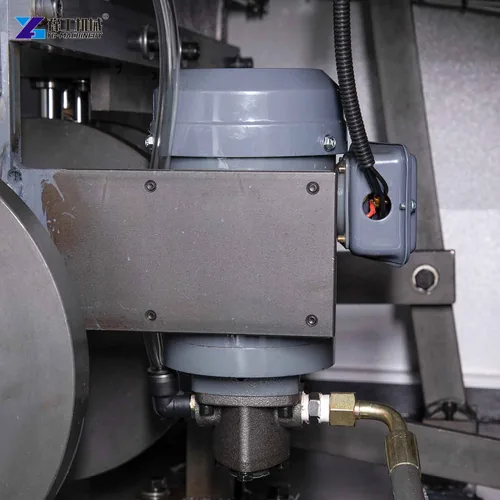

Paper stock enters through a controlled feed path, is shaped into a side wall and then joined before the cup bottom is formed and sealed. The finishing sequence creates the rim and sends an acceptable cup toward collection. Each stage depends on stable paper handling and correctly matched tooling.
The table brings the published YG 800, YG C800 and YG S800 values into one buyer comparison. It should be used to match the cup drawing, paper range, power supply and installed space before a quotation is requested.
Complete High Speed Paper Cup Machine Parameter Table
The values below are published reference parameters for the identified models or cup-forming operation configuration. Confirm the final scope, included equipment and working conditions in the quotation.
| Parameter | YG 800 | YG C800 | YG S800 |
| Cup Size | 3–16 oz | 3–16 oz | 3–16 oz |
| Published Speed | 65–75 pcs/min | 70–80 pcs/min | 75–85 pcs/min |
| Cup Paper | 150–180 g | 150–300 g | 160–300 g |
| Power Supply | 380 V / 50 Hz | 380 V / 50 Hz | 380 V / 220 V |
| General Power | 4.5 kW | 5 kW | 6 kW |
| Cup Top Diameter | 45–90 mm | 45–90 mm | 45–90 mm |
| Cup Bottom Diameter | 35–70 mm | 35–70 mm | 35–70 mm |
| Cup Height | 32–135 mm | 32–135 mm | 32–135 mm |
| Machine Size | 2115 × 1000 × 1700 mm | 2115 × 1000 × 1700 mm | 2100 × 1200 × 1800 mm |
| Weight | 1680 kg | 1680 kg | 2000 kg |
Choose Cup Formats and Match Paper Stock
Define top diameter, bottom diameter, overall height and target ounce range from the actual cup drawing. A Paper Cup Forming Machine is selected for a dimensional range, not only for a nominal cup size. Include wall artwork, paper thickness and whether a bottom pattern affects the forming process.
A Paper Cup Forming Machine should be reviewed with the actual cup drawing before tooling is finalized. A Disposable Paper Cup Machine proposal also benefits from the same clear material and packaging inputs.
Paper grade, coating type, storage condition and roll quality influence feeding and sealing consistency. Buyers should send representative material details with their cup specification. This allows the recommended cup-forming setup and heating approach to be reviewed together rather than treating paper as an afterthought.
Prepare Utilities and Control Paper Cup Quality
Verify the available voltage, frequency, grounding, protective devices and cable route before delivery. The published models list 380 V or 380 V / 220 V options depending on configuration. Reserve space for paper rolls, finished cups, inspection, maintenance access and safe movement around the machine.
When demand changes, a Paper Cup Forming Machine review can identify tooling and utility requirements early. A Disposable Paper Cup Machine plan should keep those decisions visible to both purchasing and the production crew.
Approve a first-off sample against the agreed dimensions, seam appearance, bottom seal and rim finish. During production, keep a simple record of material batch, accepted settings and inspection intervals. A consistent routine helps the team isolate a material change before adjusting several machine settings at once.
Set Up Tooling, Maintenance and the Buying Checklist
Keep the tooling set identified by cup drawing and size. Before a changeover, clean the work zone, inspect guides and verify that the correct cup dimensions have been entered into the production plan. Run controlled samples before releasing the new format to normal output.
Shift checks should cover lubrication points, guards, sensors, heaters, transmission parts and collection areas according to the supplied manual. Cleaning should remove paper dust and trim without damaging sensors or moving components. Planned maintenance protects repeatability and supports a cleaner production area.
Send the required cup drawing, paper material, desired production range, power conditions, workshop layout and destination. Ask for the applicable model, tooling scope, packing list and commissioning requirements in writing. This turns a general machine enquiry into a configuration that can be evaluated clearly.
Related packaging resources include the Paper Roll Slitting Machine and the Other Machine category. Contact YG Machinery with a cup drawing for a configuration review.
High Speed Paper Cup Machine FAQ
The published YG 800, YG C800 and YG S800 models are listed for 3–16 oz cup formats; provide the actual drawing for configuration confirmation.
The listed models run at 65–75, 70–80 or 75–85 pieces per minute, depending on the selected configuration.
The three models list paper ranges from 150–180 g through 160–300 g. The final paper and cup design should be confirmed together.
Send cup dimensions, paper details, target output, power supply, factory layout and destination for a practical configuration review.
Request a High Speed Paper Cup Machine Configuration
Send YG Machinery your material or product specification, required configuration, available utilities, application plan and destination. Our team can review the High Speed Paper Cup Machine details and prepare a suitable quotation.
