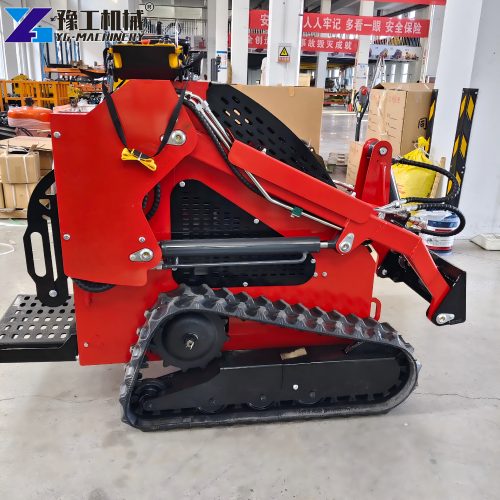

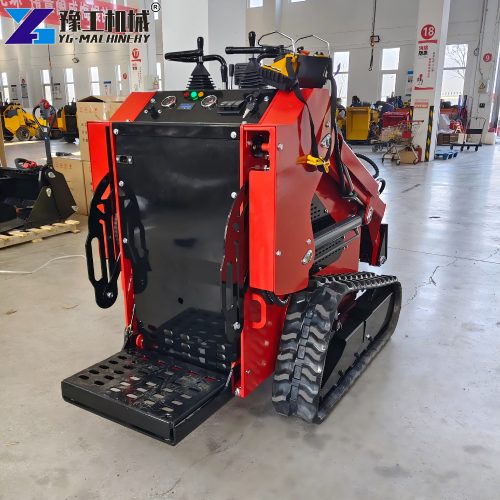

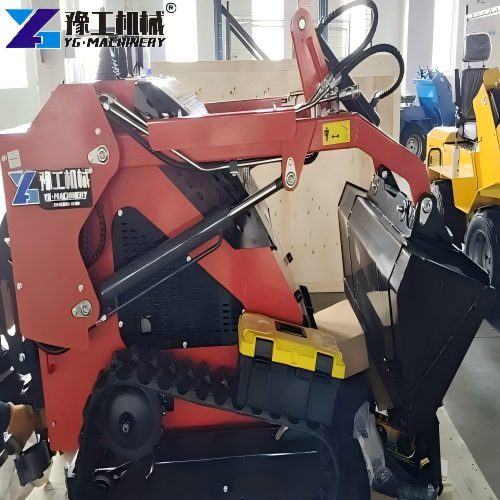

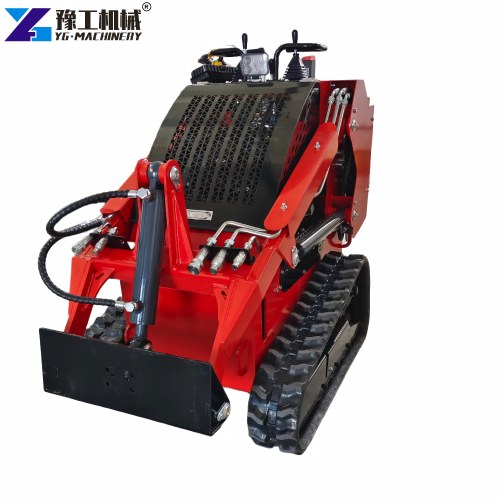

An electric mini track loader is becoming a preferred choice for contractors, landscapers, farmers, and rental companies. As environmental standards continue to evolve, more businesses are looking for equipment that combines efficiency with lower operating costs. Compared with traditional diesel-powered machines, electric models offer quieter operation, simpler maintenance, and cleaner performance. They are also suitable for indoor projects where exhaust emissions may be a concern. The YG electric mini track loader is designed to deliver reliable performance in a compact package, helping operators complete loading, transporting, and material handling tasks efficiently across various job sites.
Electric Mini Track Loader Parameters
The following specifications provide an overview of the YG loader and its operating capabilities.
| Performance | Rated Load（t) | 0.8 | |
| Bucket rated capacity（m)³ | 0.3 | ||
| Dumping height（mm) （at 45°） | 1780 | ||
| Lifting Height（mm) | 3140 | ||
| Dumping Reach（mm) | 980 | ||
| Max. Lifting weight（kg） | 600 | ||
| Max. Excavation Force（kn) | 1000 | ||
| Max. Grade ability | 30° | ||
| Max. Turning Angel | 38°±1 | ||
| Swing degree of the rear axle | 7° | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 3840 | |
| Bucket width（overall width） | 1160 | ||
| Overall Height(mm) | 2330 | ||
| Wheel base(mm) | 850 | ||
| Min Ground Clearance(mm) | 240 | ||
| Net Weight（kg) | 1980kg | ||
| Turning radius | 2610mm | ||
| Battery | Battery Model No. | 6-EVF-203A | |
| rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage | 72V | ||
| Working hours（h） | 4-5h | ||
| Transmission System | Hydraulic System | Motor No. | CBHV |
| Voltage | 72V | ||
| Power | 5000W | ||
| Displacement（ml/r) | 18 | ||
| Tyres | Type | 26*1200-12 | |
| working pressure（mpa) | 0.3 | ||
| Power | 4000W | ||
| Number of walking motors | 2 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | External Gear Pump | ||
| Steering Cylinder Bore（mm) | 63 | ||
| Qty（pc） | 1 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 250 | ||
| Parking Brake | Drum Brake | ||
| Distribution Valve | Model | DL10 | |
| Type | Triple valve stem | ||
| Dumping Cylinder-Bore | Ø80 | ||
| Lifting Cylinder-Bore | Ø63 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 30 | |
| Brake Fluid（L) | 0.8 | ||
The compact dimensions allow the machine to operate in narrow spaces, while the electric drive system delivers stable power output for daily work. In addition, the machine offers good maneuverability and dependable performance on construction sites, farms, landscaping projects, and municipal maintenance jobs.
Electric Mini Track Loader Vs Traditional Skid Steer Loader
Many buyers compare an electric loader with a conventional skid steer before making a purchasing decision. Although both machines perform similar tasks, they differ in several important areas.
1. Power Source:A traditional skid steer uses a diesel engine, while an electric track loader relies on rechargeable batteries and electric motors. As a result, it produces no direct exhaust emissions during operation and can work effectively in both outdoor and enclosed environments.
2. Operating Costs:Fuel expenses often account for a significant portion of ownership costs. However, electricity generally costs less than diesel fuel in many regions. In addition, electric machines require fewer maintenance services because there is no engine oil, fuel filter, or exhaust system to maintain, helping reduce long-term operating expenses.
3. Noise Levels:Noise can affect productivity and workplace comfort. An electric compact loader typically operates more quietly than a diesel-powered machine, making it suitable for residential projects, indoor facilities, and noise-sensitive work environments.
4. Environmental Impact:Many companies are adopting greener construction practices. Therefore, electric equipment is becoming increasingly attractive because it helps reduce emissions while supporting sustainability goals and environmental compliance requirements.
Why Are More Businesses Choosing Electric Skid Steer For Sale?
Demand for electric skid steer for sale models continues to increase worldwide as businesses seek efficient and environmentally responsible equipment solutions.
1. Increasing Environmental Requirements:Governments and project owners are placing greater emphasis on reducing emissions and improving environmental performance. Therefore, many contractors are investing in electric machinery to meet project requirements and support long-term sustainability objectives.
2. Lower Ownership Costs:Reducing operating expenses remains a priority for many businesses. Since electricity is often more affordable than diesel fuel and maintenance requirements are lower, companies may achieve better cost control throughout the equipment’s service life.
3. Better Indoor Performance:Many jobs take place inside warehouses, factories, greenhouses, shopping centers, and livestock facilities. Because an electric track loader produces no direct exhaust emissions, it creates a cleaner working environment and offers greater flexibility for indoor applications.
4. Improved Battery Technology:Battery technology has advanced significantly in recent years. Modern systems provide more stable performance, improved energy efficiency, and greater reliability, making electric machinery a practical option for a wider range of applications.
5. Versatile Applications:This machine can perform multiple tasks with different attachments. Operators can use buckets, pallet forks, sweepers, and other tools to increase productivity, making it a valuable asset across construction, agriculture, landscaping, and material handling industries.
How Long Does An Electric Mini Track Loader Run On A Single Charge?
Battery runtime is one of the most important considerations for buyers evaluating electric equipment.
1. Standard Working Time:The YG loader provides approximately 4 to 5 hours of operating time under normal working conditions. This runtime is suitable for many light-duty and medium-duty applications commonly found in construction, landscaping, and agricultural environments.
2. Factors Affecting Runtime:Several factors influence battery performance, including workload intensity, terrain conditions, attachment usage, and operating habits. Heavy lifting, steep slopes, and continuous operation generally increase power consumption and may reduce overall runtime.
3. How To Maximize Battery Efficiency:Operators can improve battery performance by following recommended charging procedures, avoiding complete battery discharge, conducting regular inspections, and using smooth operating techniques. Proper battery care helps maintain consistent performance and extends service life.
Buy Your Electric Compact Loader From YG Machinery
Selecting a reliable supplier is just as important as choosing the right machine. YG Machinery offers practical equipment solutions backed by manufacturing experience and customer-focused service.
Quality Manufacturing
YG Machinery emphasizes practical design, strict quality control, and dependable performance. Every machine undergoes testing before delivery to help ensure reliable operation in demanding working conditions.
Competitive Factory Pricing
As a direct manufacturer, YG Machinery can provide cost-effective equipment solutions for contractors, distributors, rental companies, and project owners. This approach helps customers obtain quality equipment while maintaining budget control.
Customization Options
Different projects often require different configurations. Therefore, YG Machinery offers customization options to meet specific operational requirements and improve working efficiency.
Professional After-Sales Support
YG Machinery provides technical assistance, spare parts support, and responsive customer service to help customers maintain equipment performance throughout its operating life.
In addition to this loader, YG Machinery also supplies Industrial Shot Blasting Machines, Hydro Seed Machines, Tracked Mini Cranes, Automatic Wall Plaster Machines, Automatic Brick Making Machines, Wood Shredders, Mortar Sprayer Machines, Portable Sand Blasting Machines, and Industrial Dry Ice Blasters. These products serve industries including construction, landscaping, surface treatment, recycling, industrial cleaning, and infrastructure development. By sourcing multiple machines from one supplier, customers can simplify procurement and benefit from consistent technical support.
If you are looking for an electric skid steer for sale that combines efficiency, low operating costs, and reliable performance, the YG solution is worth considering. Contact YG Machinery today for detailed specifications, pricing information, and a customized quotation tailored to your project requirements.
