YG supported a returning paper-cup producer in Albania that was expanding its cup-forming capacity while keeping paper flow, format setup and finished-cup handling under control. The project demonstrates how an Automatic Paper Cup Machine can be planned around the actual cup range and factory workflow.
The selected solution was reviewed against 3–16 oz cup formats, available power, paper supply, workspace, tooling and inspection needs. This approach kept the equipment configuration aligned with the producer’s operating plan from the first discussion through commissioning preparation.
Project Objectives and Automatic Paper Cup Machine Parameters

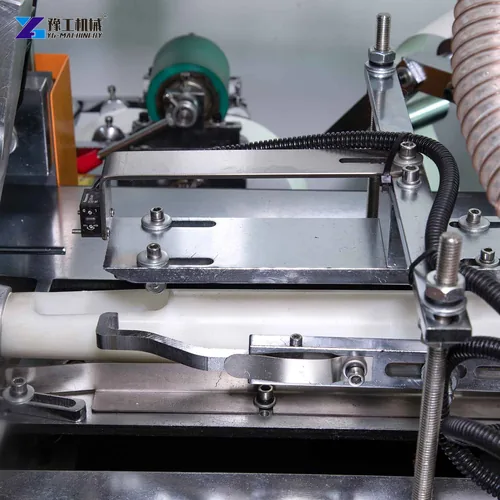

The objective was to prepare a reliable cup-forming arrangement for regular disposable-cup production. The project team first clarified the cup formats and material route, then used those requirements to narrow the available Automatic Paper Cup Machine configuration. This avoided selecting a model solely from a headline speed.
The published YG model values provided a shared configuration baseline. Cup size, paper range, electrical requirement, physical size and published speed were reviewed together so the planned production area could support the selected equipment.
Complete Automatic Paper Cup Machine Parameter Table
The values below are published reference parameters for the identified models or returning cup producer project configuration. Confirm the final scope, included equipment and working conditions in the quotation.
| Parameter | YG 800 | YG C800 | YG S800 |
| Cup Size | 3–16 oz | 3–16 oz | 3–16 oz |
| Published Speed | 65–75 pcs/min | 70–80 pcs/min | 75–85 pcs/min |
| Cup Paper | 150–180 g | 150–300 g | 160–300 g |
| Power Supply | 380 V / 50 Hz | 380 V / 50 Hz | 380 V / 220 V |
| General Power | 4.5 kW | 5 kW | 6 kW |
| Cup Top Diameter | 45–90 mm | 45–90 mm | 45–90 mm |
| Cup Bottom Diameter | 35–70 mm | 35–70 mm | 35–70 mm |
| Cup Height | 32–135 mm | 32–135 mm | 32–135 mm |
| Machine Size | 2115 × 1000 × 1700 mm | 2115 × 1000 × 1700 mm | 2100 × 1200 × 1800 mm |
| Weight | 1680 kg | 1680 kg | 2000 kg |
Plan Cup Formats and the Installation Area
The customer’s cup drawings and intended product mix were treated as the core input. Top diameter, bottom diameter, height, paper construction and print requirements all affect tooling and setup. Keeping the format list clear helps the supplier prepare a useful proposal and helps the factory organize future changeovers.
A Paper Cup Machine For Sale proposal becomes clearer when the buyer supplies current cup drawings and material details. This Paper Cup Production plan keeps future format questions connected to the original configuration.

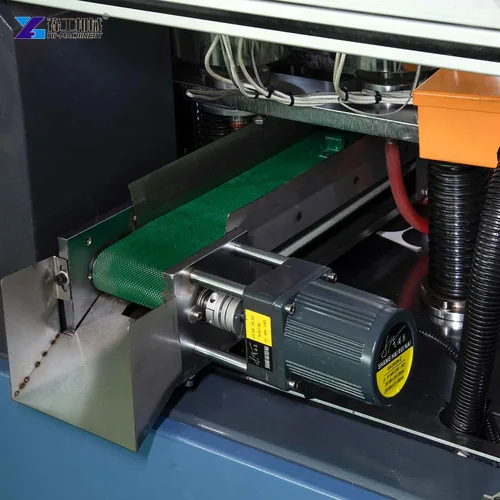

The layout reserved space for paper feeding, machine access, finished-cup collection, inspection and packing. Power routing and safe operator circulation were included before the equipment arrived. A practical installation plan supports orderly commissioning and makes later maintenance easier.
Commission the Machine and Control Cup Quality
Commissioning was organized around inspection, utility confirmation, no-load checks, controlled paper feeding and first-off cup evaluation. Accepted samples were kept as a production reference. The team used gradual setup changes rather than altering several variables at the same time.
A Paper Cup Machine For Sale also needs a controlled commissioning plan so the selected cup format, paper path and inspection routine can be accepted as one operating system.

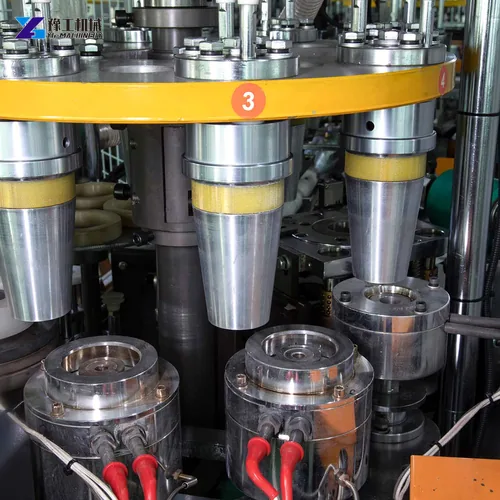

The process focused on cup dimensions, seam appearance, bottom integrity, rim quality and clean handling. A simple record tied each check to the current material and format. This creates a clear response path whenever a new roll, format change or operator handoff requires attention.
Build Long-Term Support Around Production Needs

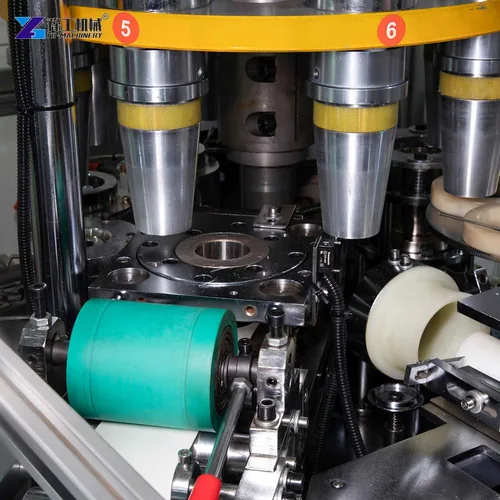

Ongoing support centered on configuration clarity, ordinary maintenance preparation and questions that arise as production formats evolve. Keeping the machine, cup drawing and material details together makes communication more useful than relying on a brief verbal description of a problem.
A future expansion should begin with demand, cup format, floor capacity, operator coverage and packaging requirements. The same planning approach can be applied to another Automatic Paper Cup Machine or to a more complete line arrangement. The goal is measured growth that protects product consistency.
The Paper Roll Slitting Machine and Other Machine category provide related paper-processing references. Request a YG configuration review with the planned cup range and site details.
Automatic Paper Cup Machine FAQ
The published YG 800, YG C800 and YG S800 configurations are listed for 3–16 oz cup formats.
Provide cup drawings, paper details, target production plan, available voltage, installation space and destination for a configuration review.
Evaluate first-off samples for dimensions, seam, bottom, rim and appearance, then record the accepted material and setup.
New formats should be reviewed with their drawing, paper and tooling requirements so the suitable configuration can be confirmed.
Request a Automatic Paper Cup Machine Configuration
Send YG Machinery your material or product specification, required configuration, available utilities, application plan and destination. Our team can review the Automatic Paper Cup Machine details and prepare a suitable quotation.
