The machine is a widely used surface treatment solution for cleaning metal components. It removes rust, oxide scale, welding residue, old paint, and other surface contaminants while improving surface quality before painting, coating, or assembly. Because the workpiece is suspended during operation, the cleaning process becomes more uniform and efficient. This makes the equipment an ideal choice for manufacturers that require consistent surface preparation and reliable production performance.

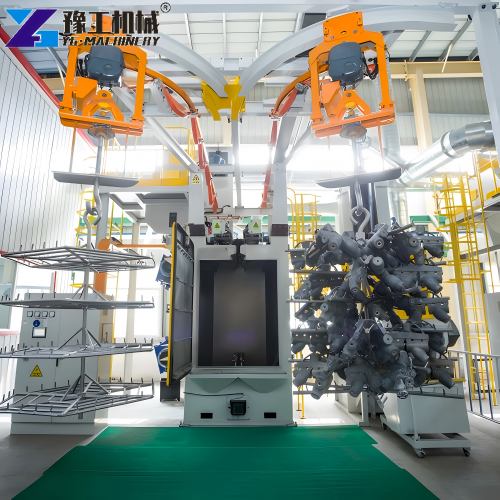

A hanger shot blasting machine is especially suitable for large, heavy, and irregularly shaped workpieces. During operation, the hook rotates continuously, allowing steel shots to reach multiple angles of the component. As a result, hidden corners, grooves, and complex surfaces receive more effective treatment. Compared with manual cleaning methods, the machine helps improve productivity while reducing labor requirements. Therefore, it has become a popular solution in modern metal processing industries.
Hanger Type Shot Blasting Machine Parameters
The following specifications represent some of the standard models available from YG Machinery. Customized configurations are also available based on project requirements.
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
YG can customize machine dimensions, hook capacity, blast wheel quantity, conveyor systems, and automation levels according to customer requirements.
Features of Industrial Hanger Type Shot Blasting Machine
1. Efficient Blast Wheel System
The machine adopts high-performance blast wheels that project steel shots at high velocity. This allows rust, scale, and contaminants to be removed quickly while maintaining stable cleaning quality. The optimized wheel design also helps improve abrasive utilization.
2. Rotating Hook Design

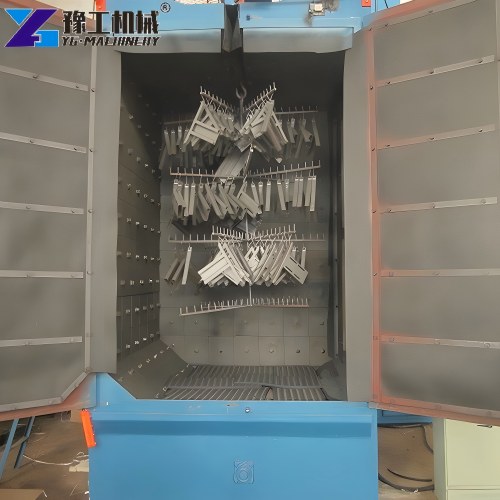

The rotating hook allows workpieces to move continuously during blasting. Consequently, steel shots can reach multiple surfaces and reduce untreated areas. This feature is particularly useful for components with complex structures.
3. Durable Blast Chamber
YG uses wear-resistant liners to protect the blast chamber from abrasive impact. These liners help reduce maintenance frequency and extend equipment service life. As a result, customers can benefit from long-term operational stability.
4. Intelligent Control System
The machine is equipped with an easy-to-use control system. Operators can adjust blasting parameters according to different production requirements. This flexibility helps improve production efficiency and simplifies machine operation.
5. Efficient Dust Collection System
An integrated dust collector removes dust and fine particles generated during operation. This helps maintain a cleaner working environment and supports continuous production.
Advantages of YG Hanger Shot Blasting Machine
1. Higher Cleaning Efficiency
YG optimizes blast wheel positioning to maximize abrasive coverage. Therefore, workpieces can achieve a uniform cleaning effect in less time. Higher efficiency also helps increase overall production capacity.
2. Ideal for Complex Components
Many industrial products contain holes, grooves, and uneven surfaces. The rotating hook system allows steel shots to access difficult areas more effectively. This ensures better cleaning consistency across the entire workpiece.
3. Lower Operating Costs
The abrasive recovery system separates reusable steel shots from waste materials automatically. As a result, abrasive consumption can be reduced and operating costs remain under control during long-term use.
4. Stable and Reliable Performance
YG selects quality motors, bearings, and wear-resistant components for every machine. These components contribute to stable operation and help reduce unexpected downtime.
5. Flexible Customization
Production requirements vary from one factory to another. YG offers customized solutions based on workpiece dimensions, production capacity, and available workshop space. This flexibility helps customers find the most suitable equipment configuration.
6. Better Surface Preparation
A properly blasted surface provides stronger coating adhesion and a more uniform finish. This helps improve product appearance and may contribute to longer coating life.
Applications of Hanger Type Shot Blasting Machine
1. Foundry Industry
This equipment is widely used for cleaning steel castings, iron castings, and aluminum castings. It removes residual sand, scale, and oxidation layers while improving surface appearance and product quality.
2. Automotive Manufacturing
Manufacturers use the machine to process wheel hubs, engine components, suspension parts, and transmission housings. Effective surface preparation helps improve coating quality and assembly performance.
3. Steel Structure Industry
Steel beams, columns, bridge components, and welded structures require thorough surface cleaning before painting. The machine helps improve coating adhesion and corrosion protection.
4. Construction Machinery

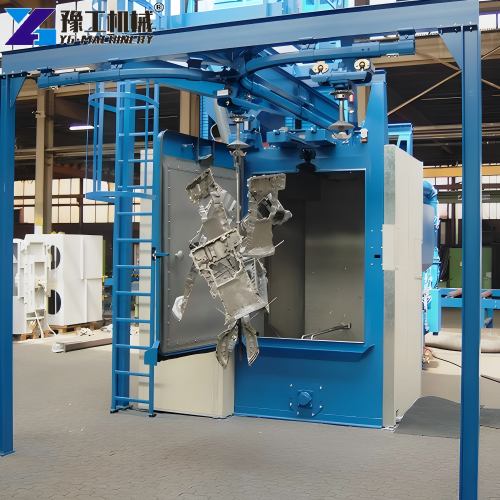

Excavator parts, crane structures, loaders, and other heavy equipment components often require rust removal and surface treatment. A hook type shot blasting machine provides efficient cleaning for these products.
5. Railway Industry
Railway manufacturers use the equipment to clean bogies, brackets, couplers, and structural components before coating and assembly. Consistent cleaning quality helps improve product reliability.
6. Agricultural Machinery
Tractor frames, harvester components, and agricultural equipment parts benefit from thorough cleaning before painting and final assembly. This helps improve appearance and durability.
FAQ About Hanger Type Shot Blasting Machine
It is a machine that suspends workpieces on hooks and cleans metal surfaces using high-speed steel shots.The rotating hook allows different areas of the workpiece to receive uniform treatment, resulting in improved cleaning quality.
There is no significant difference.Both names refer to the same type of equipment that uses hooks to suspend workpieces during the blasting process.
The machine can process castings, forgings, welded structures, steel fabrications, and machinery components.It is particularly suitable for large and irregularly shaped metal products.
Steel shot and steel grit are the most commonly used abrasives.The selection depends on the workpiece material, cleaning requirements, and desired surface finish.
The hanger type shot blasting machine price depends on workpiece size, production capacity, machine configuration, and automation requirements.Providing detailed project information allows YG to recommend a suitable model and prepare a customized quotation.
YG Hanger Type Shot Blasting Machine Manufacturer
YG Machinery specializes in manufacturing industrial shot blasting equipment and customized surface treatment solutions. With extensive production experience and strict quality standards, YG provides reliable equipment for foundries, steel fabrication plants, automotive manufacturers, and machinery producers. From standard machines to customized systems, YG focuses on delivering efficient cleaning performance, durable construction, and professional technical support. Whether you need a hanger shot blasting machine for castings or a hook type shot blasting machine for heavy steel structures, YG can provide a solution tailored to your production needs.
Choosing the right equipment can help improve cleaning efficiency, surface quality, and production performance. Contact YG today to learn more about the most suitable solution for your project.
