A road line marking machine should be chosen by coating type, required line width, marking thickness, gun or shoe arrangement and the work scene. Highways, parking lots, airports and factory lanes do not always use the same material system or equipment package.
YG supplies thermoplastic and cold-paint road marking configurations. The tables below keep every model’s parameters together so buyers can compare real machine data without combining unrelated values.
Send the coating, line widths, daily distance and project scene for a model recommendation.
GET A ROAD MARKING RECOMMENDATION
Choose a Road Line Marking Machine by Paint and Project

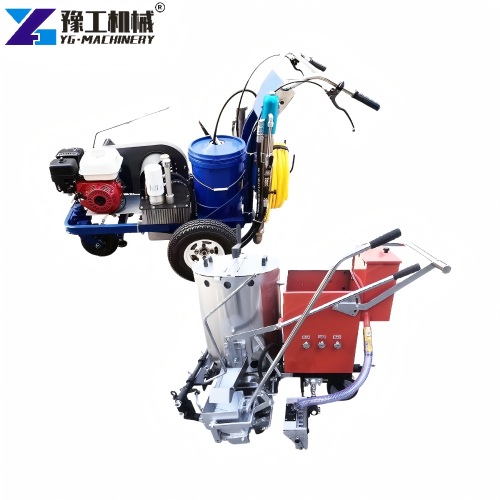

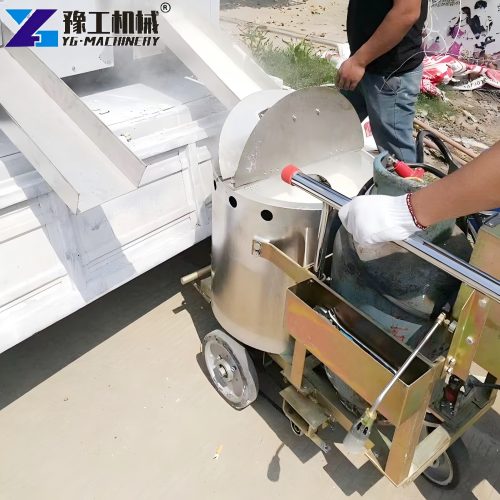

Thermoplastic marking uses heated material and normally works with a preheater, marking shoe and glass-bead system. It fits projects that specify a thicker thermoplastic line and require the crew to coordinate melting, transfer, application and bead placement.

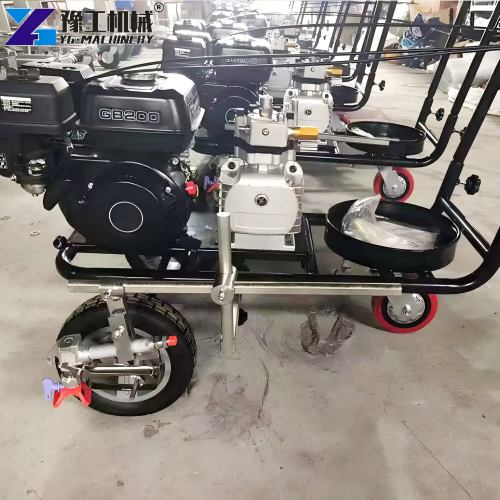

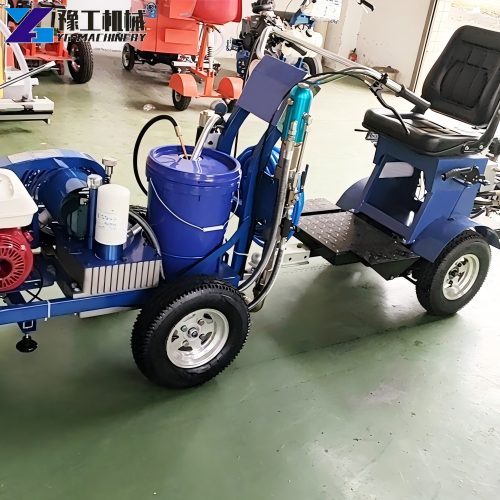

Cold-paint equipment uses liquid coating at ambient temperature. Single- and double-gun arrangements support straight lines, curves, parking bays, arrows and factory safety routes. Review the cold paint road marking machine for that product family and the road marker machine price guide when comparing quotation scope.
YG Thermoplastic Road Line Marking Machine Parameters
| Parameter | Thermoplastic road line marking machine |
| Glass-bead capacity | 25 kg |
| Paint-bucket capacity | 120 kg |
| Hopper widths | 10/15/20/30/40/45 cm |
| Marking thickness | 1.8–3.0 mm adjustable |
| Marking width | 100–450 mm adjustable |
| Weight | 110 kg |
| Dimensions | 1000 × 900 × 1100 mm |
Select the hopper or marking shoe from the required line widths, then confirm material, thickness, bead rate and preheating workflow. The 120 kg bucket and 25 kg bead capacity describe the applicator; supporting equipment must be listed separately in the quotation.
Provide the thermoplastic width, thickness and bead requirement for an applicator and preheater review.
CHECK THERMOPLASTIC CONFIGURATION
YG Cold Paint Road Line Marking Machine Parameters
YG-6L and YG-8L show the difference between a lighter single-gun configuration and a higher-flow double-gun configuration.
| Parameter | YG-6L Single Gun | YG-8L Double Gun |
| Paint flow | 6 L/min | 8 L/min |
| Maximum output pressure | 25 MPa | 30 MPa |
| High-pressure pipe strength | 35 MPa | 40 MPa |
| Maximum spray width | 20 cm | 45 cm |
| Weight | 72 kg | 128 kg |
| Engine power | 4.3 HP | 7 HP |
YG-8S and YG-8D are another model pair with 5.5 hp Honda gasoline-engine references, hydraulic working mode, 8–12 MPa pressure, 0.2–0.4 mm spray thickness and 1600 × 800 × 1200 mm dimensions.
| Parameter | YG-8S | YG-8D |
| Spray guns | Single | Double |
| Unloading flow | 4.8 L/min | 8 L/min |
| Spray width | 100–300 mm | 100–450 mm |
| Weight | 120 kg | 120 kg |
Select one complete model based on the required gun arrangement, line widths and coating. Do not combine the power, weight, flow or width from different models in one quoted configuration.
Road Line Marking Machine Applications by Work Scene
Highway and municipal projects should start from the approved coating, line thickness, bead requirement and traffic-control plan. Parking-lot work adds short sections, corners, arrows and frequent repositioning. Airport and industrial projects may require several widths, colors and acceptance checks.
Before production, prepare the surface and run a trial line. Measure width, thickness, edge definition and bead placement where applicable. Adjust the shoe, nozzle, guide, pressure or travel speed before marking the main area.
Share the project drawing and acceptance requirements so the machine and accessories match the work scene.
Road Line Marking Machine Components and Workflow

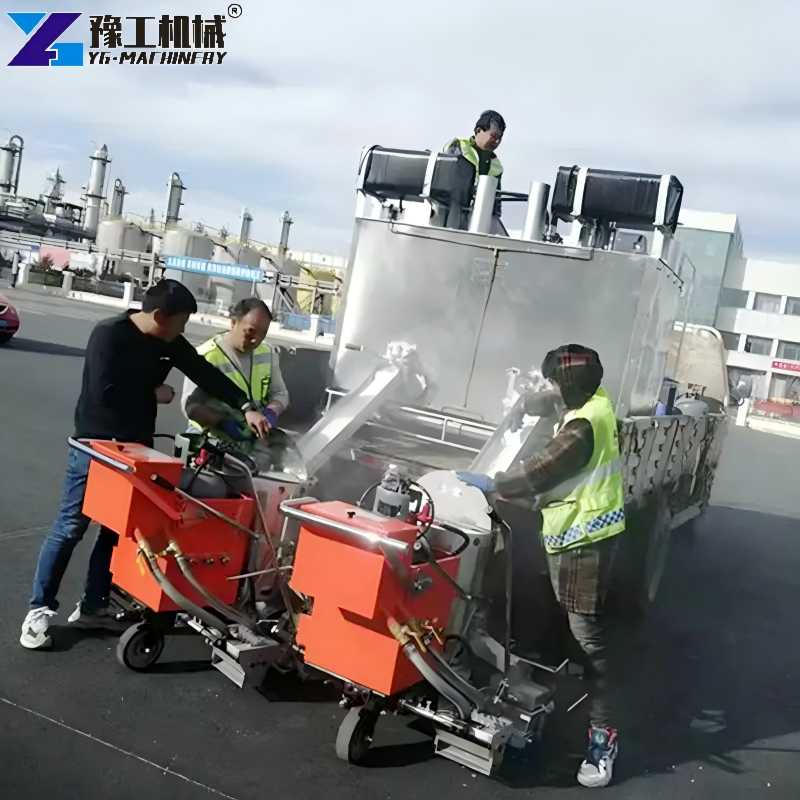

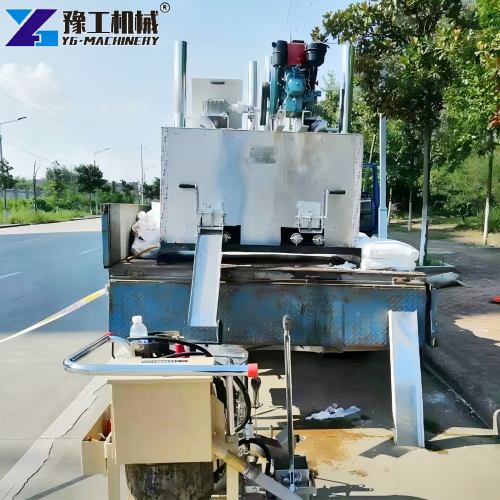

A thermoplastic workflow connects the preheater, molten-material transfer, insulated bucket, marking shoe and bead dispenser. A cold-paint workflow connects the engine, pump, suction filter, hose, gun, nozzle and guide rod. Each system needs its own cleaning, wear-part and safety plan.
Confirm which components are included before ordering. Nozzles, filters, hoses, shoes, bead dispensers, preheaters, primer tools, spare parts and line-removal equipment can change both the quotation and the crew’s site preparation.
Prepare a Road Line Marking Machine Quotation
- Approved paint or thermoplastic material
- Required line widths, thickness and symbols
- Single- or double-gun requirement
- Daily marking distance and working schedule
- Surface condition and traffic-control plan
- Preheater, bead, primer and removal-equipment requirements
- Destination, packing and spare-parts scope
Send the complete marking specification for a model-specific equipment list and quotation.
Road Line Marking Machine FAQ
Thermoplastic equipment applies heated material through a marking shoe, while cold-paint equipment sprays liquid coating through a pump, hose, gun and nozzle.
Cold-paint machines are commonly used for parking bays, arrows and short lines, but the approved coating and required finish determine the final choice.
The listed adjustable marking-width range is 100–450 mm, with hopper-width options of 10/15/20/30/40/45 cm.
YG-8L and YG-8D are listed as double-gun configurations. Their other parameters remain model-specific.
Provide material, widths, thickness, gun requirement, daily distance, project scene, accessories, destination and spare-parts needs.
Get a Road Line Marking Machine Recommendation
Submit the project details below. YG can recommend a thermoplastic or cold-paint configuration and separate the main machine, supporting equipment, spares, packing and delivery scope.
