Urban construction projects often face strict environmental requirements, limited working space, and complex underground conditions. Traditional rock-breaking methods may create excessive noise, vibration, and material waste. Therefore, many contractors choose an excavator drum cutter as a more controlled and efficient solution.
An excavator drum cutter uses a hydraulic motor to drive rotating drums equipped with wear-resistant picks. These drums continuously mill rock, concrete, asphalt, and other materials. As a result, operators can achieve accurate excavation while minimizing damage to nearby structures. In recent years, this attachment has become increasingly popular in municipal engineering, tunneling, demolition, and utility installation projects.
Compared with traditional breaking methods, a hydraulic drum cutter offers smoother excavation surfaces, lower vibration, and improved precision. These advantages make it a valuable attachment for modern construction sites where accuracy and environmental performance matter.
Excavator Drum Cutter Parameters
The following specifications show the available YG Machinery models for different excavator sizes and project requirements.
| Model | YG140 | YG160 | YG180 | YG240 |
| H | 650mm | 820mm | 830mm | 1395mm |
| W | 410mm | 650mm | 780mm | 960mm |
| D | 390mm | 460mm | 480mm | 620mm |
| Excavator weight | 5~10T | 10~15T | 15~21T | 20~24T |
| Max power | 22Kw | 45Kw | 55Kw | 65Kw |
| Speed | 0~120r/min | 0~100r/min | 0~80r/min | 0~90r/min |
| Flow | 40L/min | 100~110L/min | 130~180r/min | 200~250r/min |
| Max Torque | 3200N.m | 5400N.m | 5600N.m | 12800N.m |
YG offers several models to match different excavator classes. Whether the project involves utility trenching, tunnel excavation, or controlled demolition, customers can select a model based on excavator size and hydraulic capacity.
Why Urban Construction Projects Prefer a Drum Cutter Excavator
Urban construction sites often present unique challenges. Buildings, roads, underground pipelines, and public infrastructure require contractors to work carefully. Because of these conditions, a drum cutter excavator has become a preferred choice for many city projects.
1. Lower Noise Levels
Unlike hydraulic breakers that rely on repeated impacts, a drum cutter removes material through continuous milling. Consequently, it generates less noise during operation. This advantage helps contractors meet environmental regulations and reduce disturbances in residential and commercial areas.
2. Reduced Vibration
Strong vibrations can affect nearby buildings and underground structures. However, the milling action creates much lower vibration levels. Therefore, contractors can work closer to sensitive structures with greater confidence.
3. High Cutting Precision
Accuracy is critical in urban construction. The rotating drums remove material gradually and evenly. As a result, operators can create precise trenches, channels, and excavation profiles without excessive overcutting.
4. Improved Site Safety
The controlled cutting process reduces flying debris and improves operator visibility. In addition, smoother operation helps maintain better control throughout the excavation process.
5. Better Performance in Confined Areas
Many city projects take place in tunnels, basements, subway stations, and narrow streets. The compact design of a drum cutter excavator allows efficient operation in these restricted environments.
Because of these benefits, contractors frequently use drum cutters in municipal engineering, underground utility installation, road maintenance, and tunnel construction projects.
Hydraulic Drum Cutter Working Process
Understanding the working process helps operators maximize productivity and extend equipment service life.
1. Installation and Preparation:The attachment is mounted onto the excavator and connected to the hydraulic system. Before operation begins, the operator checks hydraulic flow, pressure, and attachment condition.
2. Positioning the Attachment:The excavator places the cutting drums against the target material. Proper positioning improves cutting efficiency and helps reduce unnecessary wear.
3. Hydraulic Power Transfer:Hydraulic oil powers the internal motor. The motor then transfers torque to the cutting drums, causing them to rotate at the required speed.
4. Continuous Milling Operation:As the drums rotate, the picks grind and cut through rock, concrete, asphalt, or frozen ground. Instead of breaking material with impact force, the attachment removes material layer by layer.
5. Profiling and Surface Shaping:Operators can create smooth trench walls, tunnel contours, and foundation surfaces. This precision often reduces the need for additional finishing work.
6. Material Cleanup:Excavator Drum Cutter Hydraulic Drum Cutter Drum Cutter Excavator Drum Cutter For Sale Excavator Rock Cutter Hydraulic Rock Milling Attachment Excavator Milling Attachment Tunnel Excavation Drum Cutter
After milling, the excavator bucket or support equipment removes the cut material. The site then becomes ready for the next construction stage.
This efficient workflow allows contractors to achieve precise excavation while maintaining productivity and environmental compliance.
Hydraulic Drum Cutter vs Hydraulic Breaker for Rock Construction
Many contractors compare a hydraulic drum cutter with a hydraulic breaker before selecting equipment for rock excavation. While both attachments can handle tough materials, their strengths differ.
| Comparison Item | Drum Cutter | Hydraulic Breaker |
| Working Method | Milling | Impact Breaking |
| Noise Level | Lower | Higher |
| Vibration | Lower | Higher |
| Precision | High | Moderate |
| Surface Finish | Smooth | Rough |
| Urban Construction | Excellent | Limited |
| Tunnel Projects | Excellent | Moderate |
| Hard Rock Performance | Good | Very Good |
| Structural Protection | Better | Moderate |
A breaker often performs well in large demolition projects and extremely hard rock conditions. However, when precision and environmental performance are priorities, the excavator drum cutter often provides greater advantages.
For trenching, tunneling, utility installation, and urban excavation, many contractors prefer milling technology because it offers a balance of efficiency, control, and safety.

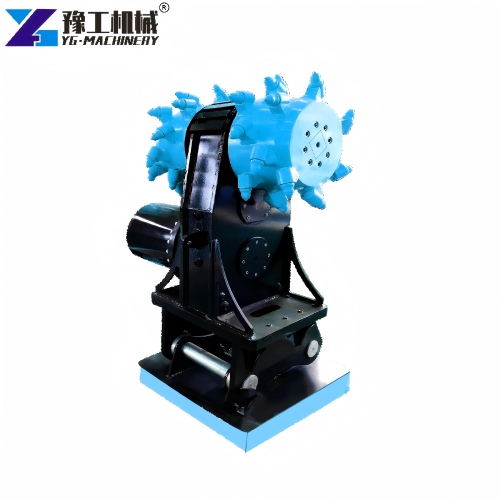

Buy a Drum Cutter for Sale from YG Machinery
When looking for a reliable drum cutter for sale, choosing an experienced manufacturer is important. YG Machinery provides durable and efficient excavator attachments designed for demanding construction environments.
Our drum cutters feature high-torque hydraulic systems, strong structural designs, and multiple model options for different excavator sizes. In addition, we offer professional technical support and worldwide shipping services.
Besides drum cutters, YG Machinery also supplies a wide range of excavator attachments, including Excavator Orange Peel Grapples, Hydraulic Shears for Excavators, Excavator Pile Drivers, Excavator Magnet Attachments, Hydraulic Pile Breakers, and Integrated Rock Drill and Splitter systems.
Contact YG Machinery today to learn more about our attachment solutions and find the right equipment for your construction, demolition, recycling, or foundation project.
