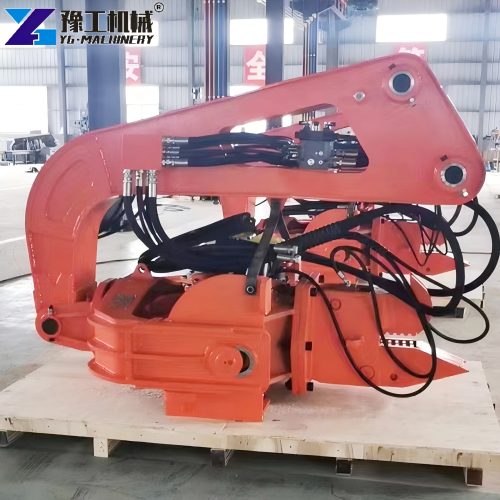

A mini excavator pile driver attachment is an efficient solution for modern foundation construction. It combines the mobility of an excavator with advanced vibration technology, allowing contractors to complete piling projects quickly and accurately. Compared with conventional piling equipment, it requires less working space and offers greater flexibility on crowded job sites.
Today, this equipment is widely used in sheet pile installation, riverbank reinforcement, bridge foundations, road construction, solar farm projects, and municipal engineering. Because it utilizes the excavator’s hydraulic system, operators can move easily between work locations without transporting additional heavy machinery.
Another advantage is versatility. The attachment can install steel sheet piles, H-beams, steel pipe piles, and solar piles. As construction companies continue to focus on efficiency and cost control, more contractors are choosing a mini excavator pile driver attachment to improve productivity and maximize equipment utilization.
Mini Excavator Pile Driver Attachment Parameter
| Model | YG150D | YG250D | YG350D | YG400D | YG450D |
| Eccentric moment(kg*m) | 3.2 | 5.1/5.7 | 7.1 | 9.2 | 11 |
| Speed(rpm) | 2600 | 2600 | 2600 | 2600 | 2600 |
| Excitation force(t) | 24 | 38/42 | 52 | 68 | 81 |
| Operating pressure of oil system(bar) | 200 | 300 | 320 | 330 | 330 |
| Flow demand for hydraulic oil system(lpm) | 100 | 163 | 220 | 260 | 300 |
| Weight(t) | 1.2 | 1.6 | 2.4 | 2.5 | 2.6 |
| Excavator(t) | 8-12 | 20-25 | 25-35 | 35-45 | 40-55 |
YG Machinery offers multiple models to match different excavator sizes and project requirements. Smaller models are suitable for municipal engineering and light foundation work. Larger models provide higher excitation force for demanding infrastructure and large-scale construction projects.
Excavator Pile Driving Construction Process
1. Site Preparation
Proper preparation plays an important role in successful pile installation. Before construction begins, engineers evaluate ground conditions and determine pile locations according to project drawings. Operators then inspect the excavator, hydraulic system, vibration mechanism, and clamp assembly. Careful preparation helps improve safety and reduces unexpected downtime during construction.
2. Pile Positioning
The excavator lifts the pile and places it at the designated position. The hydraulic clamp securely grips the pile before installation starts. Accurate positioning is important because it directly affects the final quality and stability of the structure. Operators carefully adjust pile alignment before activating the vibration system.

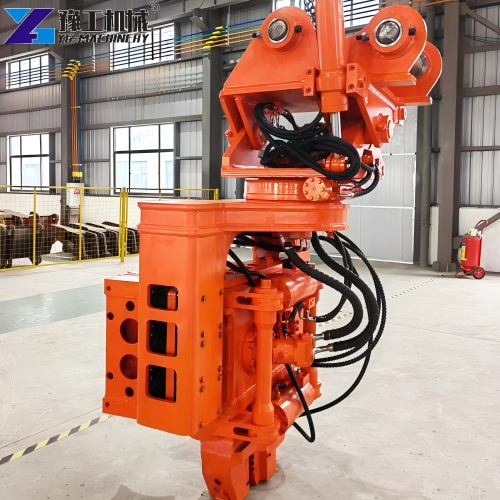

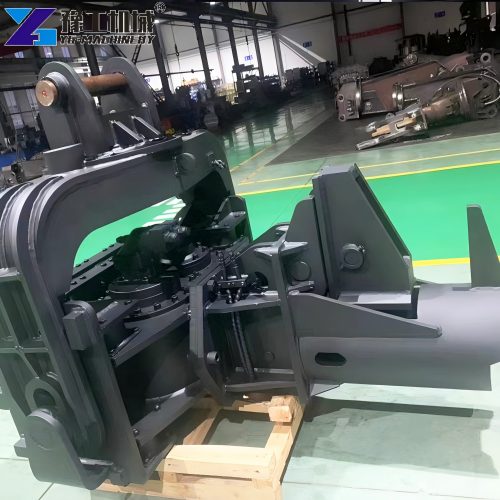

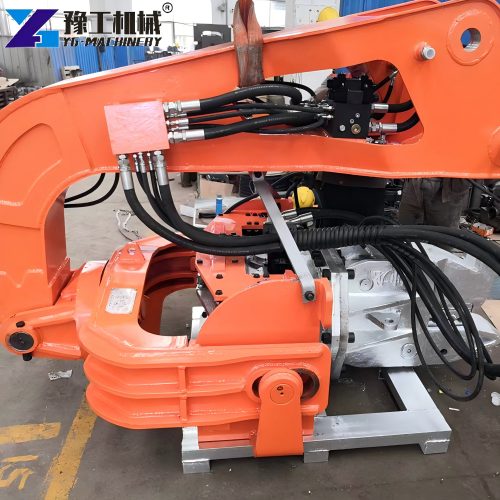

3. Hydraulic Vibratory Hammer Operation
The hydraulic vibratory hammer generates high-frequency vibrations through the excavator hydraulic system. These vibrations reduce friction between the pile and surrounding soil. As resistance decreases, the pile gradually enters the ground.
During operation, the operator continuously monitors penetration depth and vertical alignment. Different soil conditions may require adjustments to vibration force and operating speed. This approach helps maintain efficient and stable installation performance.
4. Inspection and Completion
After the pile reaches the required depth, the operator stops the equipment and performs a final inspection. The team checks depth, position, and alignment to ensure the installation meets project specifications. Once verified, construction proceeds to the next pile location.
Pile Driving Methods Under Different Geological Conditions
Different soil conditions require different piling approaches. Understanding ground characteristics helps improve efficiency and protect equipment performance.
1.Soft Soil and Clay
Soft soil usually provides lower resistance to pile penetration. Therefore, moderate vibration settings often achieve good installation results. However, operators should monitor pile alignment carefully because soft ground may affect stability during installation.
2.Sandy Soil
Sandy ground generally allows smooth penetration and efficient operation. Consistent vibration frequency helps maintain pile accuracy throughout the process. In addition, proper positioning reduces the possibility of unwanted pile movement.
3.Gravel and Mixed Soil
Mixed soil containing gravel creates greater resistance. As a result, operators may increase vibration force while reducing installation speed. Proper equipment selection becomes especially important when working in these conditions.
4.Hard Soil and Weathered Rock
Hard formations often require additional preparation. Many contractors combine drilling and vibration methods to improve efficiency. Larger piling models typically perform better in difficult geological environments and can handle higher resistance levels.
Excavator Pile Driver Vs Traditional Pile Driver
1.Mobility and Flexibility
An excavator-mounted piling system can move quickly between different work areas. Traditional pile drivers often require additional transportation equipment and longer setup times. Consequently, excavator-based solutions provide greater flexibility for dynamic construction projects.
2.Construction Efficiency
A vibro hammer for sheet pile driving allows contractors to perform multiple tasks with a single excavator. The machine can switch between excavation and piling operations when required. Therefore, project efficiency often improves and equipment utilization increases.
3.Operating Costs
Traditional piling equipment may require additional machinery and manpower. By comparison, excavator-mounted systems can reduce transportation expenses and simplify daily operations. Over time, contractors may benefit from lower overall operating costs.
4.Environmental Performance
Modern vibration technology generally produces lower noise levels than impact piling methods. Furthermore, fewer machines on site can contribute to reduced fuel consumption and simplified project management. These advantages make vibration piling suitable for many urban construction projects.
Buy YG Excavator Pile Driver

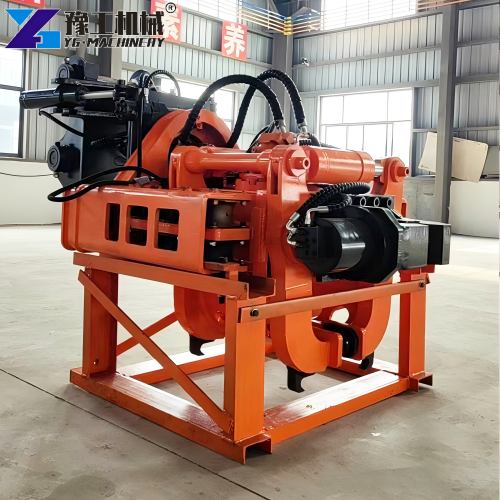

YG Machinery specializes in manufacturing reliable foundation construction equipment. Our excavator sheet pile driver features stable performance, durable components, and efficient vibration technology. We offer multiple models to match different excavator sizes and project requirements while providing professional technical support and after-sales service.
In addition to the mini excavator pile driver attachment, YG Machinery also supplies Excavator Orange Peel Grapple, Drum Cutter Machine, Hydraulic Shears For Excavator, Excavator Magnet Attachment, Hydraulic Pile Breaker, and Integrated Rock Drill and Splitter. These excavator attachments help customers handle demolition, recycling, rock excavation, material handling, and foundation construction projects more efficiently.
If you are looking for a suitable piling solution, contact YG Machinery today for expert advice and a competitive quotation.
