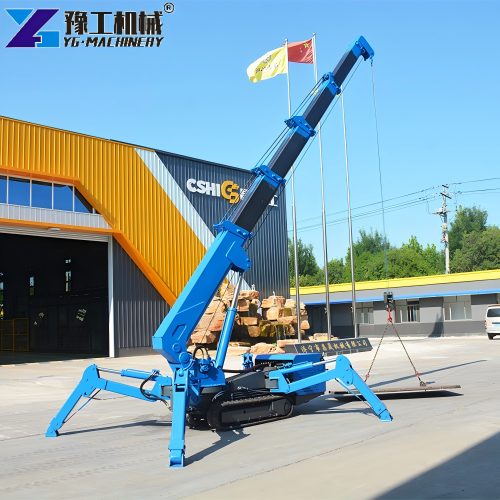

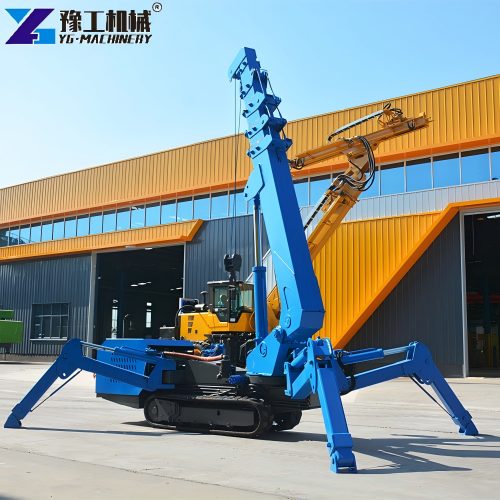

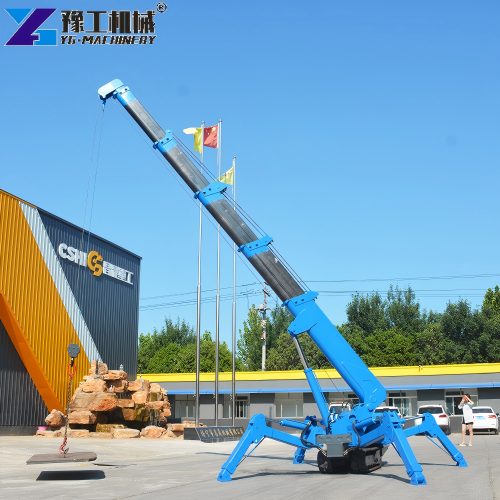

YG is a professional manufacturer that focuses on mini lifting construction machinery. The 5 Ton Spider Crane serves as a mid-size lifting solution for complex job sites. It acts as a flexible crawler spider crane and suits both indoor and outdoor projects well. This machine balances lifting capacity and flexible moving performance. It adapts to narrow passages, high-rise works and industrial maintenance tasks perfectly. YG follows standardized production processes to keep stable working performance for long term use.
5 Ton Spider Crane Technical Parameters
The table below shows complete practical parameters of this mid-size lifting machine.
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Application Scenarios of Mobile Spider Crane
This mobile spider crane fits a wide range of construction and industrial fields.

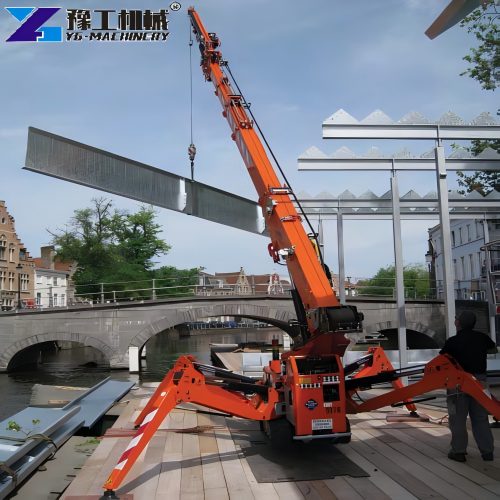

- Civil and commercial building construction. It passes narrow site roads easily. It completes material lifting and frame installation in dense building areas. Ordinary large cranes cannot enter such limited spaces.

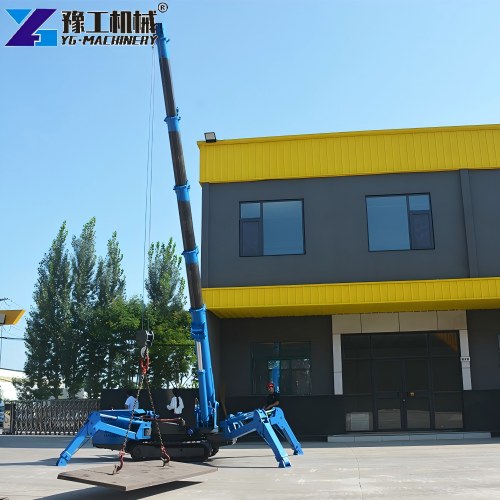

- High rise building exterior renovation. It handles window installation and wall repair work. It works steadily beside high buildings without occupying large ground space.
- Factory equipment installation and maintenance. It moves freely inside factory workshops. It lifts heavy mechanical parts and electrical devices with stable load capacity.
- Landscape and large tree engineering. It finishes tree transplantation and large rockery placement. It protects ground surface and keeps no obvious pressure damage.
- Indoor and basement operation tasks. Its compact body enters indoor floors and underground spaces. It transports heavy goods without damaging floors or walls.

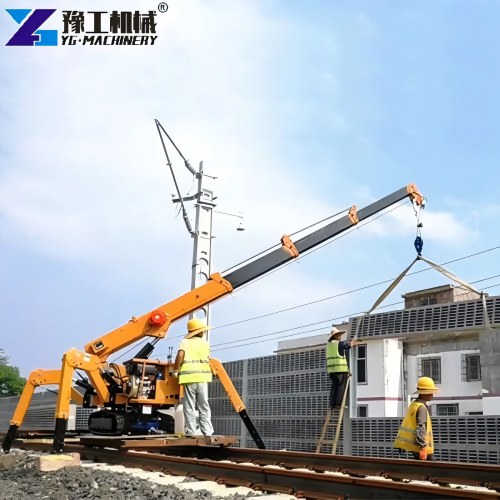

- Municipal and road facility maintenance. It assists in street lamp installation and guardrail replacement. It adapts to urban road narrow working environments.
Core Components And Working Principle Of Crawler Spider Crane
Core Components
- High strength telescopic boom. It adopts thickened steel structure for strong bearing force. It supports multi section stretching to meet different height needs.
- Hybrid power system. It combines diesel and electric power for flexible mode switching. It saves fuel consumption and lowers working noise.
- Heavy duty crawler chassis. It improves grip on uneven and muddy roads. It ensures stable walking during site transfer.
- 360 degree rotary mechanism. It realizes full angle rotating without dead lifting spots. It greatly improves working flexibility.
- Intelligent hydraulic control system. It delivers smooth lifting and stretching actions. It makes operation simple and stable for operators.
- Multi layer safety protection device. It includes overload limit and anti tipping functions. It reduces potential risks during daily operation.
Working Principle
The hybrid power system offers steady power output for the whole machine. The hydraulic system drives boom stretching, luffing and overall lifting movements. The crawler chassis supports free travel on all kinds of complex terrain. The rotary structure works with the boom to complete full-range lifting tasks. Built-in safety systems monitor real-time load conditions all the time to ensure safe operation.
Advantages Of YG Spider Lift Crane Compared With Other Models
YG spider lift crane has obvious comprehensive strengths against other tonnage models.
- Moderate load capacity for wider use. It has stronger lifting power than small tonnage cranes. It handles medium heavy tasks that 3 ton models cannot support. It avoids the high cost of oversize large cranes.
- Compact body for easy site access. It has smaller overall size than 8 ton and above cranes. It smoothly passes narrow doorways, alleys and indoor working areas. It owns better site adaptability in crowded urban areas.
- Balanced cost performance. It has reasonable purchase price for mid level lifting demands. It also saves shipping cost due to standard container loading quantity. Daily fuel and maintenance costs stay at a friendly level.
- Comfortable driving configuration. This model comes with an independent driving cabin. Operators can work for long hours with better comfort. Smaller tonnage cranes do not have such supporting design.
- Fast production and flexible customization. YG arranges production within 5 to 7 days for regular orders. It supports voltage, accessory and power configuration customization. Custom service will not add extra hidden fees.
- Durable structure and long service life. YG uses high quality raw materials and precise welding technology. Key parts pass repeated quality tests before delivery. The machine keeps stable performance in long term frequent use.
FAQ For 5 Ton Spider Crane
Yes, it supports full voltage customization. YG takes 380V as standard voltage and adjusts parameters freely for global clients with no extra charge.
A standard large container can hold 2 units. The reasonable body size optimizes shipping space and cuts down logistics cost greatly.
Yes, it is equipped with a complete driving seat. Only 3 ton and smaller mini models do not have cabin configuration for daily operation.
The normal lead time takes 5 to 7 working days. YG keeps sufficient spare parts stock to guarantee timely delivery for global buyers.
Yes, it adapts well to complex ground conditions. The crawler chassis enhances stability and allows normal walking on slopes and muddy roads.
Buy 5 Ton Spider Crane From YG Machinery
If you search for reliable lifting equipment, YG is your ideal cooperative supplier. YG adopts factory direct sales mode without middleman markup. It offers transparent and competitive overall cost for every buyer.
Apart from this model, YG provides complete series of lifting machines. You can choose 3 ton mini type for narrow light tasks. You can also pick 8 ton heavy duty type for large scale projects. YG can also customize super large tonnage cranes according to special job demands.
YG provides one stop service for global customers. It covers configuration selection, accessory matching and full shipping arrangement. Every machine completes strict quality inspection before shipment. You can contact YG team anytime to get a detailed quote and complete parameter list.
Overall, the 5 Ton Spider Crane is a cost effective mid size lifting choice. It combines flexible movement, strong load capacity and wide scenario adaptability. YG always insists on stable quality and thoughtful after sales service. We welcome global merchants and project contractors to send inquiries for long term cooperation.
