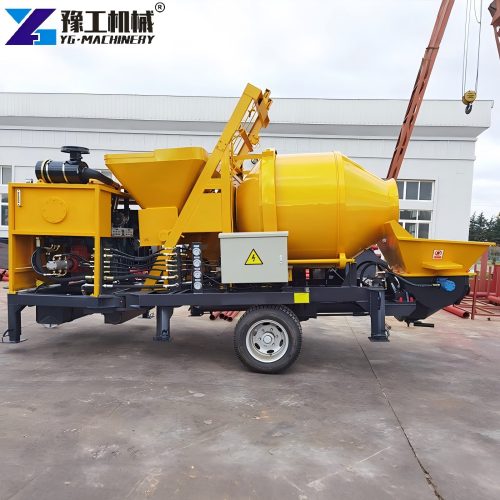

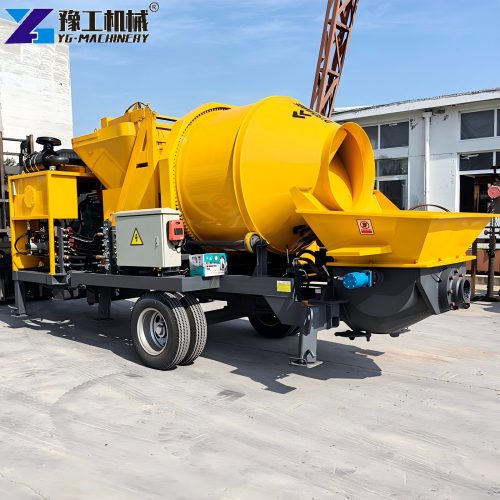

If you are searching for a competitive concrete mixer pump price, you are in the right place. A concrete mixer and pump is a two-in-one machine that mixes and delivers concrete at the same time. It combines a mixing drum with a hydraulic pumping system in one compact unit. As a result, contractors save time, reduce equipment costs, and complete projects faster. YG Machinery offers two reliable models — the YG-350 and YG-550 — designed for a wide range of construction projects, from small residential builds to large commercial sites.
Concrete Mixer Pump Parameters – YG-350 and YG-550 Specifications
The table below shows the key technical specifications for both models. These figures help you choose the right machine for your project requirements.
The YG-350 suits medium-scale projects well because it handles a wide particle size range (0.5–40 mm). The YG-550, on the other hand, delivers higher output at 40 M3/h and works best for large-volume pumping jobs. Both models are available as concrete mixer and pump for sale through YG Machinery at factory-direct prices.
| Model | YG-350 | YG-550 |
| Theoretical delivery volume | 20-30M3/h | 40M3/h |
| Bone particle diameter | 0.5-40mm | 20-40mm |
| Greatest pressure | 20mpa | 20mpa |
| Bore*Stroke | 180*1000mm | 200*1110mm |
| Motor Power | 45kw | 55kw |
| Oil pump power | 100(column)L/S | 140(column)L/S |
| Delivery pipe | 125mm | 125mm |
| Genset power | 150kw | 150kw |
| Machine size | 6100*2000*2700mm | 6200*2000*2700mm |
| Weight | 5500kg | 6500kg |
What Are the Core Components of a Concrete Mixer and Pump?
Understanding the main parts of a concrete mixer pump helps you operate and maintain it more effectively. Each component plays a specific role in the overall performance of the machine.
1. Mixing System
The mixing drum and rotating blades combine raw materials — cement, aggregates, and water — into a consistent concrete mix. A powerful drive motor keeps the blending process smooth and continuous.
2. Pumping System
The hydraulic cylinders, concrete pistons, and S-valve work together to push the mixed concrete through the delivery pipe. This system controls both the pumping speed and the discharge pressure, which reaches up to 20 MPa on both YG models.
3. Hydraulic System
The hydraulic unit includes the main pump, oil tank, and control valves. It powers both the mixing and pumping functions. Proper oil temperature management in this system directly affects performance and machine lifespan.
4. Electrical Control System
A PLC control panel manages the entire operation. It monitors real-time performance, triggers fault alarms, and supports remote control in some configurations. This system makes operation safer and easier for the user.
5. Chassis and Delivery Pipeline
The towable chassis allows easy movement between job sites. The 125 mm delivery pipe, along with bends and flexible hoses, transports concrete efficiently to the placement point. Together, these components ensure the machine adapts to different site layouts.
Why Are More Contractors Choosing a Concrete Mixer and Pump Over Traditional Methods?
Construction teams around the world are moving away from traditional setups. In the past, contractors used a separate mixer truck and a standalone pump. That approach required more equipment, more coordination, and higher overall costs. Today, a combined concrete mixer pump solves these problems in one machine.
First, it reduces the number of machines on site. Fewer machines mean fewer operators and lower fuel costs. Second, the continuous workflow eliminates waiting time between mixing and pumping. Third, a small concrete mixer with pump fits easily into tight spaces, narrow roads, and remote locations where larger equipment simply cannot reach. Fourth, this type of machine generally requires only two or three operators to run, which helps control labor costs on long-term projects.
Furthermore, the YG-350 and YG-550 are built for mobility. Their compact designs and towable frames make repositioning fast and simple. For contractors managing multiple project phases or locations, this flexibility adds real value. Overall, the combined design delivers better efficiency at a lower total cost than traditional two-machine setups.
How to Improve Pumping Efficiency in Hot Weather, Rainy Seasons, and Complex Sites？
Environmental conditions affect concrete quality and machine performance. However, with the right approach, you can maintain high efficiency in nearly any situation.
1. Working in High Temperatures
Heat speeds up concrete setting time, which can cause blockages in the pipeline. To slow the process down, use cooled water or chilled aggregates during mixing. Additionally, schedule pumping work during the cooler parts of the day — early morning or evening. Monitor the hydraulic oil temperature closely, because overheating reduces pump pressure and can damage seals.
2. Working During the Rainy Season
Rain adds moisture to aggregates, which changes the water-cement ratio. Always adjust the mix design before pumping to compensate for extra moisture. Cover the mixing hopper when not in use. Also, check all electrical connections for water tightness, and secure the delivery pipeline firmly to prevent movement on wet or slippery ground.
3. Working on Complex Job Sites
For high-rise buildings, tunnels, or mountain sites, plan the pipeline layout carefully. Minimize the number of bends, because each bend increases resistance and reduces output volume. For demanding long-distance or high-rise pumping, the YG-550 is a stronger choice due to its higher output capacity. Finally, clean the delivery pipeline thoroughly after every shift. Regular lubrication and flushing prevent concrete buildup and extend the life of the pipe and pistons.
What Factors Affect the Concrete Mixer Pump Price?
The concrete mixer pump price varies depending on several key factors. Knowing these factors helps you make a well-informed purchasing decision.
1. Output Capacity
Higher output means a higher price. The YG-550 delivers 40 M3/h, so it costs more than the YG-350, which is rated at 20–30 M3/h. Choose the capacity that matches your actual project demand to avoid overpaying.
2. Motor Power
A 55 kW motor requires more robust internal components than a 45 kW unit. As motor power increases, so does the cost of manufacturing and materials. This directly affects the final machine price.
3. Optional Configurations
Standard models come at a base price. However, adding remote control systems, extended delivery pipelines, or a built-in generator set increases the overall investment. Consider which options your project actually needs before choosing a configuration.
4. Brand and After-Sales Support
Established manufacturers like YG Machinery provide spare parts support, technical guidance, and warranty coverage. This adds long-term value and reduces maintenance costs over the machine’s service life.
5. Export Logistics
The destination country, shipping method (FOB or CIF), and local import duties all affect the total delivered price. Buyers in different regions may see meaningful differences in landed costs.
6. Currency Exchange Rates
Exchange rate fluctuations can shift the final figure for international buyers. Therefore, it is always a good idea to request a real-time quotation before making a final decision.
Concrete Mixer and Pump for Sale – YG Machinery
YG Machinery is a professional construction equipment manufacturer with extensive export experience. The company supplies machines to contractors and distributors across Asia, Africa, the Middle East, and beyond. Every machine leaves the factory after strict quality inspection to ensure reliable performance in the field.
When you source your concrete mixer and pump for sale from YG Machinery, you benefit from factory-direct pricing with no middlemen. The team also provides professional pre-sales consultations to help you select the right model, along with responsive after-sales technical support. Export documentation, spare parts supply, and operator training are all available upon request.
In addition to the concrete mixer pump, YG Machinery offers a full range of complementary construction equipment. If your project involves wall finishing or surface preparation, consider pairing the pump with a mortar spraying machine for fast, even plaster application. An automatic wall plastering machine can further speed up interior finishing work. For concrete floor projects, a laser screed machine delivers a precise and level surface with minimal manual effort. Sourcing multiple machines from YG Machinery simplifies logistics and ensures compatibility across your equipment lineup.
Contact the YG Machinery team today to receive an accurate concrete mixer pump price, detailed product specifications, and a customized solution for your project. Whether you need one machine or a full equipment package, the team is ready to assist.
