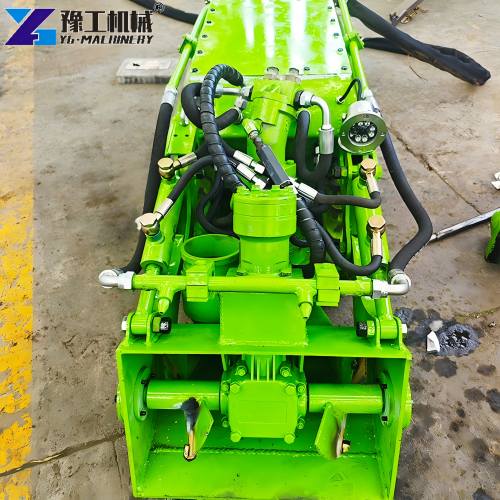

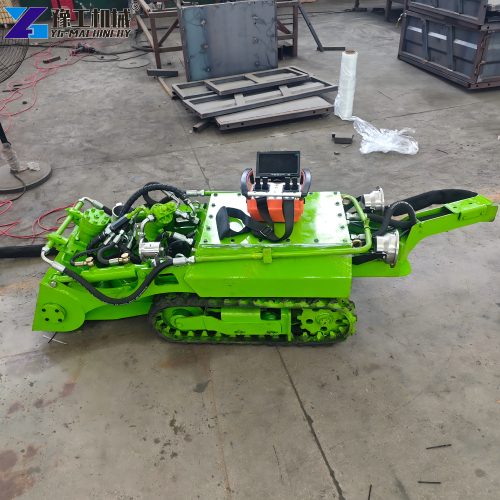

When port managers need a reliable sand dredging machine, they turn to YG Machinery. Our unmanned dredging robot works as an advanced underwater suction dredge. It removes sediment, sludge, and sand without emptying the water. The compact design moves easily in narrow canals, industrial ponds, and busy docks. You control everything from a safe distance with a wireless remote. This sand dredging machine cuts energy costs and keeps vessel traffic moving. In fact, it redefines what a modern dredging machine for sale should deliver.
Sand Dredging Machine Parameters – YG Series Dredging Robot
| Dredging Robot Parameter | ||||||
| Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
| Robot dimensions | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750mm | 1900*1200*750mm |
| Dredging width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track travel speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Robot weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump output diameter | 3inch | 3inch | 4inch | 4inch | 4inch | 4inch |
| Pump flow rate(cubic meters/ hour) | 100 m³ | 100m³ | 200m³ | 200m³ | 200m³ | 200m³ |

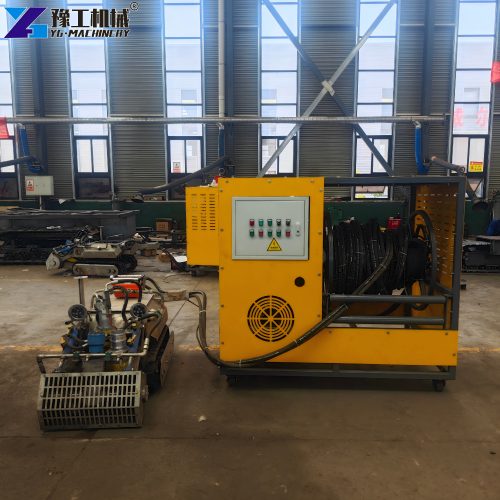

| Hydraulic station dimensions(mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main motor power | 22kw | 22kw | 30kw | 30kw | 30kw | 45kw |
| Hydraulic system pressure | 0-16Mpa | |||||
| Particle size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Reeling system speed | 0-10r/min | |||||
| Hydraulic hoses | 50m (Standard configuration) | |||||
| Control system | Wireless remote control | |||||
| Lighting system | Underwater LED lights *2 | |||||
These specifications help you match the right sand dredging machine to your project. Smaller models suit tight industrial tanks. Larger units handle wide river sections and ports with ease.
Why Ports Are Moving Away from Traditional Dredgers: 3 Key Advantages of Our Underwater Suction Dredge
Port authorities increasingly choose this submersible dredge over large cutter suction vessels. The reasons go beyond cost. This compact machine brings unique operational benefits.
- Zero interference with vessel traffic. The robot works entirely underwater. You do not need to close lanes or reroute ships. Port operations continue without interruption. The unit runs quietly along the quay wall. No floating pipelines disturb surface traffic.
- Pinpoint accuracy and local treatment. A traditional dredger often disturbs large areas. Our robot delivers targeted removal. Underwater LED lights and cameras guide the operator. You see the exact spot and clean only where needed. This is ideal for dock corners, bridge piers, and cable zones.
- Lower energy consumption and emissions. The electric-hydraulic power pack uses far less fuel than a diesel-driven cutter suction dredger. A 30 kW main motor can move up to 200 m³ of slurry per hour. That energy efficiency translates into lower operating costs and a smaller carbon footprint.
In addition, the equipment handles high-density sediment without extra booster pumps. Port teams appreciate the simple deployment. They can launch a unit like this within an hour. Maintenance is straightforward with easy access to the hydraulic and reeling systems.
How a Wastewater Pond Dredging Project Works with a Dredging Machine For Sale?
A wastewater treatment plant needed to remove sludge from a settling pond. They chose a YG-700 dredging robot. The project followed a clear six-step process. This workflow shows exactly how our equipment performs in real conditions.
- Site survey and plan. Engineers measured the pond depth and sludge thickness. They identified inlet and outlet locations. The team selected the YG-700 for its 200 m³/h flow and 38 mm particle capability. They prepared the hydraulic power pack on solid ground near the pond.
- Robot deployment. A small crane lowered the 380 kg robot into the water. No need to drain the pond. The operator connected the 50-meter hydraulic hoses and the discharge pipe. The machine sat evenly on the bottom with its tracks ready.
- Underwater suction and pumping. The operator activated the pump via wireless remote. The suction head began pulling sludge into the intake. Strong suction lifted settled solids without stirring the entire pond. The track travel speed of 3-15 m/min allowed methodical lane-by-lane coverage.
- Slurry transport. The pump pushed the slurry through the discharge hose to the shore. Because the hydraulic station delivers stable pressure, the flow remained steady over the full 50-meter distance. No additional booster unit was needed.
- Filtration and dewatering. On land, the slurry entered a screening and dewatering system. A vibrating screen separated large debris. Then a geotextile tube or filter press removed fine particles. The dried solids got safely transported off site.
- Clean water discharge. The separated water passed through a final settling stage. It met the plant’s quality standards and flowed back into the process water system. The pond returned to full capacity without any production downtime.
Why Future River Management Depends on Robotic Dredging Machines?
River authorities face growing pressure to control flooding and preserve ecosystems. At the same time, labor shortages and safety rules push them toward automation. A robotic dredge fits perfectly into this shift.
Smart water management platforms now integrate real-time data from sensors. Our equipment can feed slurry concentration, flow, and position data directly to a dashboard. Operators track progress remotely and adjust the dredging schedule based on actual sediment build-up. This data-driven approach replaces guesswork with precise maintenance cycles.
Digital operation records build a long-term health profile of the river. Each cleaning session generates a report. Over time, managers see trends and predict where silt will accumulate next. AI-assisted image recognition from underwater cameras can even detect cracks in concrete linings or erosion spots during the dredging pass. The machine becomes more than a simple tool. It becomes an inspection and monitoring asset.
Unmanned systems also reduce workplace risks. Workers no longer need to enter confined spaces or stand on unstable dredger decks. The remote control allows operation from a safe location. With a reliable submersible dredge like YG’s, river agencies can schedule night operations, monsoon preparation, and rapid flood response without assembling large crews.
Furthermore, governments now issue tenders that specifically mention robotic or remote-controlled dredging equipment. Owning a versatile dredging unit positions contractors to win these contracts. YG Machinery already supports several municipal river programs across Asia and Africa. The future points toward autonomous fleets. Get ahead with a proven dredge today.
FAQ About Sand Dredging Machines and Dredging Machines For Sale
The robot’s pump creates powerful suction at the dredging head. It draws in water and solids through a hose. The mixture then travels to the surface for separation. Because the pump is directly on the robot, suction remains strong even in high-density mud. This design eliminates the need for a separate booster station.
Yes. The YG-500 and YG-600 models are perfect for narrow channels. Their compact dimensions (1500x500x650 mm and 1500x600x650 mm) allow them to work under bridges and near embankments. They still offer a 100 m³/h flow rate, which is efficient enough for regular maintenance dredging.
A barge-mounted excavator has limited reach and accuracy. It also blocks navigation. Our equipment works underwater without disturbing traffic. It provides better precision, lower fuel consumption, and safer operation. You also get real-time visual feedback from the underwater cameras. That quality control is impossible with a blind excavator bucket.
YG Machinery supplies full documentation, remote commissioning assistance, and a 12-month warranty. We keep commonly used spare parts in stock. Our engineers can connect via video call to troubleshoot within hours. We also provide training materials and operational guidelines to help your team get started quickly.
YG Dredging Robots for Sale – Contact for Your Reliable Dredging Machine For Sale
Your next waterway project deserves a smart, safe, and efficient tool. YG Machinery’s dredging robot lineup answers the needs of ports, treatment plants, and river authorities. Every dredge comes with a proven hydraulic system, sturdy steel tracks, and a user-friendly remote control. No complex installation. No long crew training.
Contact our sales team with your project details. We will help you select the right model and configure the hose length, pump capacity, and particle handling. We ship globally and provide lifetime technical support. Invest in a dredging solution that delivers immediate returns through lower operating costs and higher uptime. Request a quotation today and see how YG transforms underwater cleaning.
