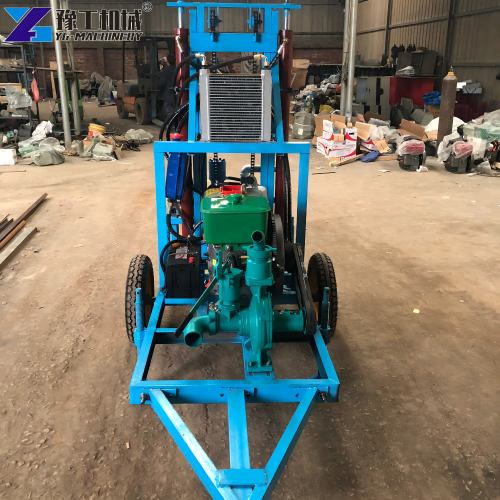

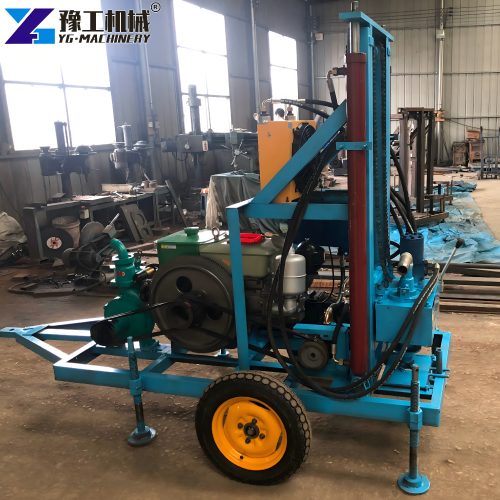

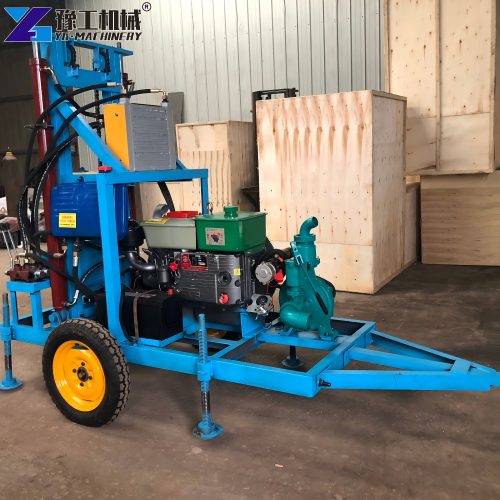

YG Machinery focuses on practical drilling solutions for water access projects around the world. The portable water well drilling machine for sale is designed for users who need a compact and efficient way to build water wells in rural or remote areas. It supports different soil conditions and helps users complete drilling work with lower cost and higher flexibility.
This portable water drilling machine is widely used in farmland irrigation, village water supply and small community projects. Because of its portable structure, it can be transported easily to areas where large rigs cannot reach. At the same time, it maintains stable drilling performance and supports continuous operation in different environments. For many contractors and farmers, it becomes a practical solution for solving water shortage problems.
Portable Water Well Drilling Machine for Sale Parameters
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
These configurations allow the machine to adapt to different geological and project conditions. Users can select suitable models based on drilling depth and working environment.

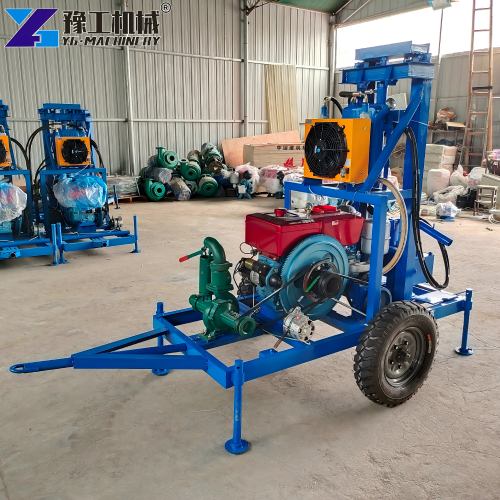

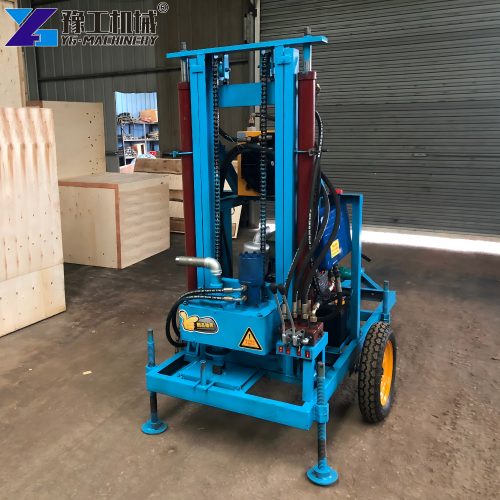

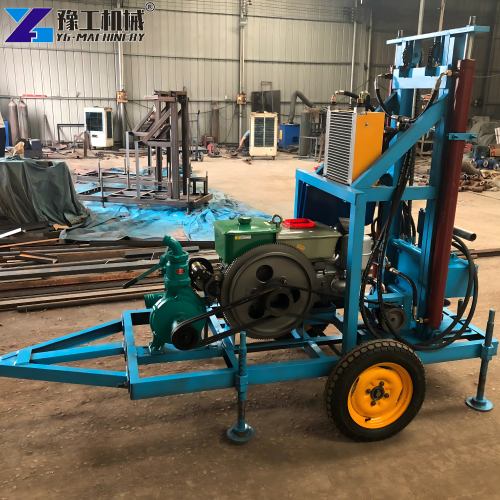

Small Borewell Machine for Different Wells and Ground Conditions
The small borewell machine is suitable for a wide range of water well applications, especially in rural and agricultural areas. It supports both shallow and medium-depth drilling projects.
It is commonly used for domestic drinking water wells, irrigation wells and livestock water supply wells. In rural regions, these applications are essential for daily life and agricultural production.
In terms of geology, the machine performs well in clay soil, sandy layers, mixed gravel and weathered rock. However, for extremely hard rock formations, additional drilling tools may be required.
Because of this flexibility, the small borewell machine becomes a reliable option for contractors working in different regions and soil conditions. It helps reduce project uncertainty and improves drilling efficiency.
Small Water Drilling Machine Working Principle and Workflow
The small water drilling machine uses a rotary drilling system combined with mud circulation to break and remove soil layers during operation. This method helps maintain hole stability and improves drilling speed.
First, the machine is positioned and stabilized at the drilling site. Proper setup ensures accurate drilling direction. Next, drill rods are connected and prepared for operation.
Then the drilling process begins. The drill bit rotates and gradually penetrates soil or rock layers. At the same time, circulating fluid carries cuttings out of the borehole to keep the hole clean.
As drilling continues, operators add drill rods to reach the target depth. Once the required depth is achieved, casing pipes are installed to protect the well structure. Finally, the well is cleaned and tested to ensure stable water output.
This working process is simple and effective. It allows small teams to complete drilling tasks without complex equipment support.
Advantages of Small Water Drilling Machine in Rural Projects
In rural and remote areas, water access often depends on simple and efficient drilling equipment. The portable water well drilling machine for sale plays an important role in solving these challenges.
- Easy transportation to remote areas:The machine has a compact structure and supports trailer or wheel movement. This makes it easier to transport to villages, farms and mountainous regions where large rigs cannot access. It helps reduce logistics difficulty and project delays.
- Lower investment and operating cost:Compared with large drilling rigs, the portable water drilling machine requires less initial investment. Maintenance is also simpler. This makes it suitable for small contractors, farmers and local engineering teams.
- Simple operation and low training requirement:The equipment is designed for practical field use. Operators can learn basic drilling steps in a short time. This reduces labor pressure and improves project efficiency in rural construction.
- Strong adaptability to different soil conditions:The machine can work in clay, sand and mixed soil layers. It maintains stable performance in most rural geological environments. This flexibility reduces the need for multiple equipment types.
- Suitable for small and medium water projects:It is widely used in irrigation wells, domestic water wells and livestock water supply systems. These applications are common in rural development projects and help improve local water access.
- Faster project completion:Because setup and operation are simple, drilling work can be completed in a shorter time. This is important for seasonal agricultural needs and emergency water supply projects.
YG Portable Water Well Drilling Machine for Sale Global Solution
YG Machinery provides reliable drilling equipment for global water supply projects. The portable water well drilling machine for sale is designed with durability and practical performance in mind, making it suitable for long-term field use.
We support customization based on drilling depth, power system and working environment. This helps customers choose the most suitable configuration for their specific projects.
At the same time, each machine is tested before delivery to ensure stable performance in real working conditions. YG Machinery also provides spare parts support and technical assistance to help users maintain long-term operation.
With global shipping service, customers can receive equipment efficiently and start projects quickly. If you are looking for a reliable drilling solution, YG Machinery’s portable water well drilling machine for sale can be a practical choice for rural water supply, agricultural wells and small infrastructure projects.
Besides this model, YG Machinery also supplies a full range of drilling and construction equipment to meet different engineering needs:
- Down the hole drilling rig for mining and rock drilling projects
- Hydraulic core drilling rig for geological exploration and sampling
- Horizontal directional drilling equipment for trenchless pipeline installation
- Rotary drilling rig for foundation and construction piling work
- Core drilling machine for mineral and rock core extraction projects
