In modern construction, achieving a smooth, durable plaster finish efficiently is a common challenge. Manual application is slow, labor-intensive, and can lead to inconsistent results. This is where a professional mortar sprayer machine becomes an indispensable tool. YG Machinery’s range of spraying equipment is engineered to automate the application of cement-based plasters and mortars, transforming how contractors approach wall finishing.A cement plaster spray machine is a pneumatic device designed to apply wet-mix materials like cement mortar, plaster, and render onto surfaces with high pressure. It consists of a hopper for material, a pumping system, and a spray gun. By using compressed air, it projects the mixture evenly across walls or ceilings.
Key Specifications of YG Mortar Sprayer Machines
Choosing the right equipment depends on your project’s scale and requirements. YG offers several models with varying capacities and power to suit different needs. The following table outlines the key technical parameters for our popular models to help you make an informed comparison.
| Model | YG311 | YG318 | YG500 | YG711 |
| Greatest Pressure | 3Mpa | 3Mpa | 3Mpa | 3Mpa |
| Capacity | 3㎡/h | 3㎡/h | 3㎡-4㎡/h | 4㎡/h |
| Applicable material ratio(water, ash, sand) | 0.7-1:1:3 | 0.7-1:1:3 | 0.7-1:1:3 | 0.7-1:1:3 |
| Main motor power | 4KW | 7.5KW | 8hp/12hp | 7.5KWstrength |
| Particle Size | ≤4mm | ≤8mm | ≤8mm | ≤8mm |
| Conveying Distance | H:30m/V:20m | H:50m/V:30m | H:50m/V:30m | H:50m/V:30m |
| Hopper Volume | 60L | 80L | 80L | 100L |
| The diameter of the feed pipe | 32mm | 32mm | 32mm | 32mm |
| Weight | 200KG | 320KG | 320KG | 320KG |
Applications of the Cement Plaster Spray Machine
The versatility of a modern mortar plaster spray machine makes it a valuable asset across a wide spectrum of construction and renovation projects. Its core function of applying mixes with speed, force, and consistency unlocks efficiency in several key areas, ordered from most common to specialized uses.
Building Construction for Walls and Ceilings:

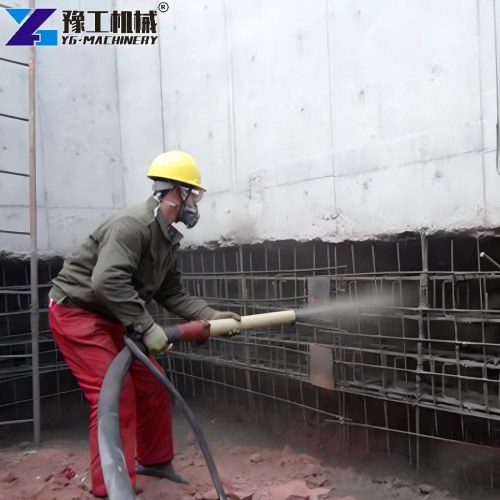

This is the primary and most frequent application. The machine is ideal for both interior and exterior wall plastering and rendering on new housing developments, apartment blocks, and commercial complexes. It uniformly applies the base coat and finishing layers, ensuring a smooth surface for painting or cladding. The speed of application significantly reduces project timelines for large-scale developments, from single-family homes to towering skyscrapers, making it a cornerstone tool for modern contractors.
Interior Renovation and Refurbishment:
For renovation projects, the cement mortar sprayer is perfect for refreshing interior walls and ceilings. It can efficiently apply new plaster over existing surfaces or on new drywall, creating a seamless finish. Its ability to spray onto ceilings eliminates the strenuous overhead manual labor associated with troweling, improving worker safety and application quality. This makes it indispensable for hotel renovations, office remodels, and home refurbishments.
Insulation and Acoustic Layer Application:
Beyond standard plaster, these machines are excellent for spraying specialized materials. They are commonly used to apply thermal insulation coatings, such as those containing EPS beads or perlite, directly onto exterior walls or in attics. Similarly, they can spray acoustic plaster mixes in theaters, recording studios, or multi-unit dwellings to enhance soundproofing. The machine ensures these functional layers are applied evenly and with proper adhesion.
Infrastructure Repair and Maintenance:

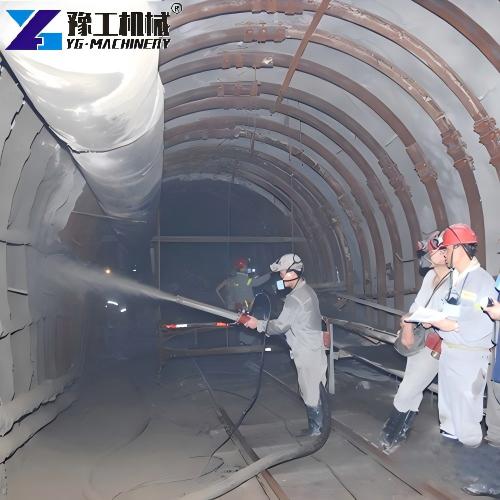

The cement mortar spray machine plays a crucial role in maintaining public and industrial infrastructure. It is used for repairing and refinishing concrete surfaces on bridges, tunnels, parking garages, and water treatment facilities. Its high-pressure application ensures the repair mortar bonds strongly with the existing substrate, restoring structural integrity and protecting against further environmental wear.
Fireproofing and Protective Coatings:
A critical safety application is the spraying of fire-resistant (intumescent) and other protective coatings onto structural steel beams, columns, and concrete surfaces in commercial and industrial buildings. The spray machine allows for the rapid, uniform application of these life-saving coatings to the required thickness, ensuring compliance with building fire codes. Interested in a machine for a specific application? Contact our team for a tailored recommendation.

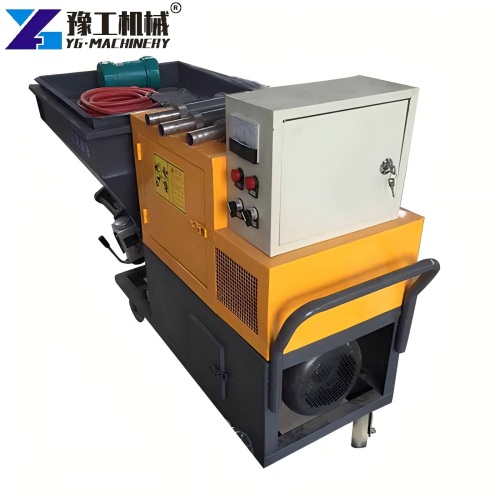

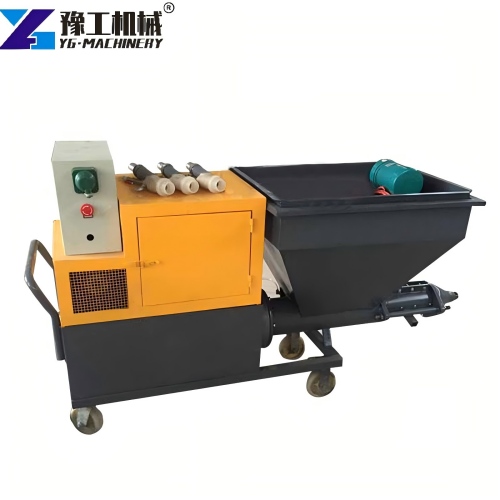

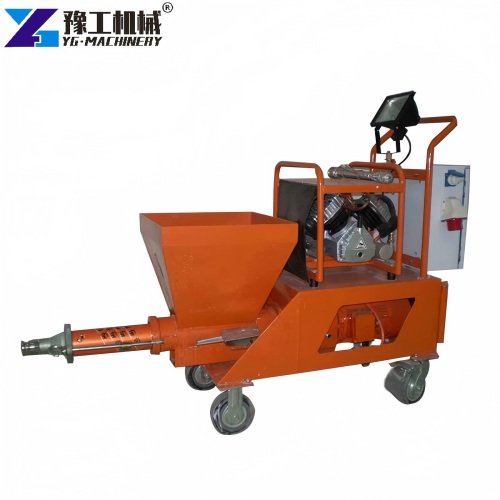

Main Components for Reliable Operation
To understand how a plaster spraying machine achieves consistent performance, it’s essential to know its key parts. Each component plays a critical role in the machine’s workflow, from material handling to final application. Here are the main components, listed in the order of the operational process:
Enlarged Hopper with Vibrating Screen:
The process begins at the hopper, the entry point for the mortar mix. YG machines feature an enlarged hopper designed for sufficient material loading, supporting continuous operation and reducing downtime for refilling. A built-in vibrating screen filters out oversized aggregates and debris at this initial stage, preventing potential blockages in the pumping system and ensuring only properly mixed material moves forward.
High-Flow Pump Head and Reinforced Spiral:
This is the core of the machine’s power. Crafted from wear-resistant materials, the high-flow pump head generates the pressure needed to move the mortar. Working in tandem with a reinforced spiral (auger) mechanism inside the hopper, it forcefully and consistently pushes the material into the delivery hose. The robust design of these components is crucial for handling thick mixes and providing a steady output.
Delivery Hose and High-Pressure Spray Gun:
The delivery hose acts as the pipeline, transporting the mortar from the pump to the application point. Built to withstand high internal pressure and physical abrasion, it ensures the mix travels over long distances without losing integrity. At the end of the hose, the high-pressure spray gun, operated by the user, controls the final application. Its nozzle atomizes the mortar into a focused, even spray pattern, allowing for precise and efficient coverage on the target surface.
Electrical Control Box with User Interface:
The control box is the command center. It houses the electrical systems and user-friendly controls, including switches and a pressure gauge. The pressure gauge provides real-time feedback, allowing the operator to monitor and adjust the spraying pressure for optimal performance based on the material and surface. This centralized control ensures safe and efficient operation.
Chassis with Mobile Wheels:
Mobility is key on a job site. The entire assembly is mounted on a sturdy steel chassis equipped with durable, mobile wheels. This design allows a single operator to easily move the heavy machine across different locations on a construction site, from one room to another or around a building exterior, significantly enhancing workflow flexibility.
Advantages of Using a YG Mortar Spraying Machine
Investing in a YG mortar spraying machine brings multiple tangible benefits to your construction workflow, directly impacting productivity and project quality. These advantages are listed in order of their perceived value to contractors and business owners.
1.Dramatic Increase in Efficiency and Speed:
Mechanical spraying is exponentially faster than manual labor. One machine can complete the work of several skilled plasterers, dramatically reducing project timelines and helping you meet tight deadlines, allowing you to take on more projects per year.
2.Significant Reduction in Overall Costs:
The efficiency gain directly slashes labor costs. Furthermore, precise mechanical application results in high material utilization, with waste often minimized, leading to substantial savings on raw materials. This combination lowers the total cost of ownership and improves project profitability.
3.Superior and Consistent Application Quality:
The machine delivers a uniform spray pattern and consistent pressure, resulting in an even layer thickness across the entire surface. This minimizes common issues like hollow spots, cracks, or weak adhesion, leading to a more durable, professional finish that reduces call-backs and enhances your reputation.
4.Enhanced On-Site Working Conditions:
The automated process significantly reduces the physical strain and fatigue associated with manual troweling. The design of YG machines also contributes to lower dust and noise levels on site, promoting a safer and healthier work environment for your crew.
5.Exceptional Versatility for Various Materials and Sites:
These machines are not limited to standard cement-sand mixes. They can effectively spray insulation mortar, repair compounds, and textured finishes. With a vertical conveying distance of up to 30 meters, they are perfectly suited for multi-story buildings and large halls without constant relocation.
6.Robust Construction for Long-Term Reliability:
Built with heavy-duty steel and quality components, YG sprayers are engineered for longevity in tough site conditions. Their reliable design ensures minimal downtime, and straightforward maintenance procedures contribute to a lower total cost of ownership and a strong return on investment. Ready to calculate your potential savings? Request a personalized efficiency report from YG.
Frequently Asked Questions About Mortar Sprayer Machines
A: The primary differences are in capacity and power. The YG-711 offers a higher output (4-6 m³/h) and a larger hopper (100L) compared to the YG-311 (3 m³/h, 60L). This makes the YG-711 better suited for large-scale, continuous projects, while the YG-311 is ideal for smaller jobs or sites with space constraints.
A: Yes, it can handle various mixes. While optimized for a standard 0.7-1:1:3 cement-sand ratio, YG machines are also capable of spraying gypsum-based plasters, lightweight insulating mortars, and certain waterproofing compounds, provided the aggregate size is within the machine’s limit (≤8mm).
A: Regular maintenance is straightforward and crucial for longevity. It primarily involves thoroughly cleaning the hopper, pump, and hoses with water immediately after each use to prevent material from hardening inside. Periodically checking seals, lubricating moving parts, and inspecting the electrical system as per the manual will ensure optimal performance.
A: Absolutely. YG provides comprehensive operational manuals and video guides with each machine. For larger orders or upon request, we can arrange on-site training sessions to ensure your team is fully confident in operating and performing basic maintenance on the equipment. Our technical support team is also available for remote assistance.
Your Trusted Partner in Construction Efficiency
YG Machinery specializes in the design and manufacturing of robust construction spraying equipment. Our commitment is rooted in continuous research and development, ensuring our machines incorporate practical innovations that address real on-site challenges. We maintain strict quality control through ISO-certified processes, using premium components to build machines that contractors can rely on day after day. This dedication has made our plaster mortar spraying machines a trusted choice on construction sites globally. Our partnership with you extends beyond the sale. YG offers clear warranty terms, a reliable global supply chain for genuine spare parts, and dedicated after-sales support. We understand that your productivity depends on your equipment running smoothly, and our team is committed to providing the assistance you need to keep your projects on track.
Take the next step towards transforming your plastering operations. Explore our full range of equipment, download detailed specification sheets, or speak directly with our experts to find the perfect mortar sprayer machine for your specific requirements. Request your free, no-obligation quote and model recommendation today and discover the YG advantage in construction efficiency.
