The Digger Ripper Tooth is a heavy-duty excavator attachment designed for breaking extremely tough ground conditions. It is widely used in construction, mining, road building, and land clearing projects where standard buckets cannot perform efficiently.
In real working environments, soil layers often become compacted due to pressure, moisture, or geological changes. As a result, excavation becomes slow and energy-consuming. The Digger Ripper Tooth solves this problem by concentrating force into a single sharp point, allowing machines to break through hard surfaces more easily.
In addition, this attachment reduces the need for blasting operations in many situations. This improves operational safety and helps lower overall project costs. It is especially useful in areas with weathered rock, frozen ground, or dense root systems.
YG Machinery focuses on producing durable and practical excavation tools. Therefore, this product is engineered with reinforced steel and optimized geometry to ensure stable performance even under continuous heavy load conditions.
Parameter of Digger Ripper Tooth
The Digger Ripper Tooth Technical Parameters are designed to match a wide range of excavators:
| Category | Unit | YG-00 | YG-01 | YG-02 | YG-04 | YG-06 | YG-08 | YG-08S | YG-10 | YG-14 | YG-17 | YG-20 |
| Total Length A | mm | 523 | 523 | 656 | 656 | 885 | 1080 | 1080 | 1290 | 1290 | 1500 | 1550 |
| Width B | mm | 130 | 130 | 180 | 180 | 240 | 345 | 345 | 400 | 400 | 465 | 465 |
| Thickness F | mm | 36 | 36 | 55 | 55 | 80 | 90 | 90 | 90 | 110 | 110 | 110 |
| Carrier | Ton | 1-2 | 3-4 | 4-6 | 6-9 | 12-16 | 20-23 | 23-26 | 26-30 | 30-40 | 40-52 | 50-90 |
| Weight | kg | 30 | 40 | 80 | 85 | 185 | 400 | 410 | 600 | 760 | 1030 | 1200 |
This product line supports both small and large excavators. Moreover, YG Machinery can adjust design specifications based on customer requirements such as working environment, rock hardness, and machine brand compatibility.
What is a Digger Ripper Tooth?
A Digger Ripper Tooth is a single-shank digging and breaking tool installed on excavators. It is designed to penetrate and fracture hard ground layers by applying concentrated force.
Unlike standard buckets that mainly scoop material, the ripper tooth focuses on breaking. This makes it especially effective in compact soil, frozen ground, and fractured rock layers. In many cases, it is used as a first-step tool before loading or further excavation.
Structurally, it features a reinforced steel body and a high-strength tooth tip. These components help maintain strength during repeated impact with hard surfaces. Therefore, it becomes a reliable tool for continuous heavy-duty work.
Working Principle of Root Ripper For Excavator
The Root Ripper For Excavator operates based on hydraulic force concentration and mechanical penetration.
First, the excavator positions the ripper tooth at the target surface. Then, the hydraulic arm applies strong downward pressure. This force is concentrated at the sharp tip of the tooth, increasing penetration ability.
As the tooth enters the ground, internal stress builds inside the soil or rock. When the stress exceeds the material strength, cracks form and expand. Finally, the surface breaks apart and becomes loose.
This working method offers several practical benefits. It reduces repeated digging cycles, improves energy efficiency, and increases working speed in hard soil environments. In addition, it allows operators to work more smoothly in uneven terrain.

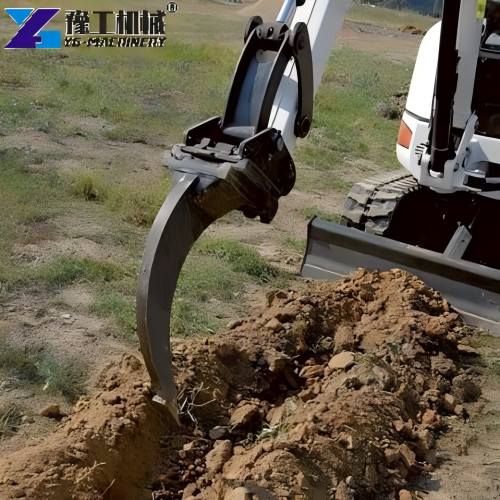

Application Areas of Rock Ripper For Excavator
The Rock Ripper For Excavator is widely used across different industries due to its strong breaking ability and stable performance.
- Construction Engineering:It is used for foundation preparation, trenching, and breaking compact soil layers. It helps prepare stable ground for building structures.
- Mining and Quarry Work:It supports pre-breaking of rock formations before excavation or crushing processes. This improves overall mining efficiency.
- Road Construction Projects:It is used to remove old asphalt layers and break hardened roadbeds. This helps speed up road reconstruction work.
- Forestry and Land Development:It removes deep tree roots and clears land for agricultural or construction use. This makes land preparation faster and easier.
- Frozen Soil Excavation:In cold regions, frozen ground becomes extremely hard. The ripper tooth helps break frozen layers and enables continuous digging.
- Municipal Infrastructure Work:It is applied in pipeline installation, drainage systems, and urban foundation projects where hard soil is present.

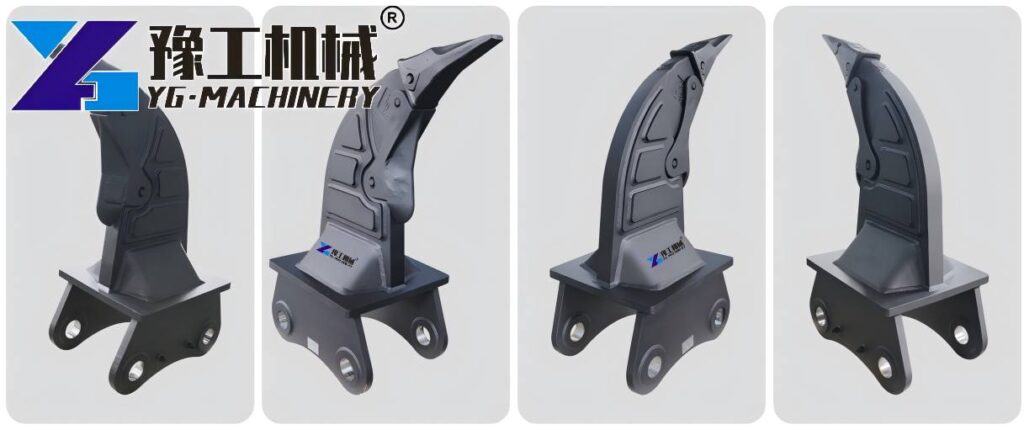

Advantages of Excavator Ripper Attachment For Sale
The Excavator Ripper Attachment For Sale from YG Machinery offers strong advantages for global construction projects.
- Reinforced Steel Structure:The body uses high-strength steel, which improves resistance to impact and wear during long-term operation.
- Efficient Penetration Design:The optimized tooth shape increases ground penetration ability. As a result, it reduces resistance during operation.
- Wide Compatibility Range:It matches excavators from 1 ton to 90 tons. This makes it suitable for different project scales.
- Stable Performance in Harsh Conditions:Even in rocky, frozen, or compact soil environments, it maintains stable working efficiency.
- Reduced Operating Cost:Because it improves breaking efficiency, it helps reduce fuel consumption and machine wear over time.
- Flexible Customization Options:YG Machinery can adjust structure, size, and connection type based on customer requirements. This ensures better machine matching.
- Simple Maintenance Structure:The design reduces unnecessary complex parts, making daily maintenance easier for operators.
Overall, this attachment provides a balance of durability, efficiency, and flexibility for modern excavation projects.
FAQ About Digger Ripper Tooth
It is suitable for excavators from 1 ton to 90 tons. Different models match different machine sizes to ensure stable performance.
It can handle weathered rock and medium-hard formations. For extremely hard rock, working methods may need adjustment based on site conditions.
It breaks hard layers first, which reduces resistance for follow-up digging. This makes the overall excavation process faster.
Yes, it works very well in forestry and land clearing projects. It can break deep and strong root systems effectively.
Yes, customization is available for size, thickness, and connection structure to match different excavators and working needs.
Buy Digger Ripper Tooth from YG Machinery
The Digger Ripper Tooth from YG Machinery is designed for global construction and mining projects that require strong and stable ground-breaking performance. We provide direct factory supply, competitive pricing, and technical support for different applications.
In addition to ripper teeth, YG Machinery also offers a complete range of excavator attachments, including drum cutter machine,hydraulic shears for excavator,hydraulic pile breaker,rock splitter for excavator,and integrated rock drill and splitter.
If you are planning to upgrade your excavator efficiency, you can contact us for a quotation or technical recommendation. Our team will help you choose the right model based on your working conditions and machine type.
