Hydraulic rock splitter for sale is becoming a practical choice for contractors who need safe and efficient rock breaking without blasting. In quarrying, foundation excavation, tunnel work, and concrete demolition, many projects now need more control, lower vibration, and cleaner operation. A hydraulic splitter can meet these needs while keeping the workflow simple on site.
YG Machinery provides hydraulic rock splitting equipment for rock excavation, mining, trenching, and demolition work. Our machine mainly includes a hydraulic power station and a splitting gun. During operation, high-pressure oil pushes the wedge system forward, and the rock breaks along the planned direction in a short time. As a result, this equipment works well for large rocks, concrete structures, and oversized stone blocks that need controlled splitting.
Hydraulic Rock Splitter for Sale Parameters
Before choosing a machine, buyers usually want to compare drilling depth, splitting force, and hole size. The table below shows the main specifications of the YG hydraulic rock splitter for sale.
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
From these figures, buyers can quickly see the difference between the three models. YG-250 is suitable for shallower drilling and medium rock splitting. YG-350 is often chosen for general quarrying and construction work. YG-450 fits deeper holes and larger rock masses. If your project needs higher output, a larger model often gives a better working rhythm.
What Are the Core Components of a Hydraulic Rock Splitter?
A hydraulic splitter for rock may look simple from the outside, but each part has a clear job. Once these parts work together, the machine can produce strong splitting force with stable control.
1. Hydraulic Power Station
The power station is the energy source of the whole system. It supplies high-pressure hydraulic oil to the splitter. YG can provide electric and diesel power stations. If your site has stable electricity, an electric station is often convenient. If you work in remote mountains, mines, or road projects, a diesel station may suit the job better.
2. Splitting Gun
The splitting gun is the working unit inserted into the drilled hole. It receives hydraulic pressure from the power station and transfers force to the wedge assembly. This part directly acts on the rock, so its quality affects efficiency and service life.
3. Center Wedge and Side Wedges
This wedge system is the key part of the machine. When hydraulic pressure pushes the center wedge forward, the two side wedges move outward. Then the rock receives strong lateral force and cracks along the desired line. This working principle helps the machine split hard rock in a more controlled way than impact breaking.
4. Hydraulic Hoses and Connectors
Hydraulic hoses connect the power station and the splitting gun. Their length depends on the jobsite layout. In practical work, many customers ask for longer hoses so the pump can stay in a safer or more convenient area.
5. Flow Divider and Spare Parts
If one pump works with two or more splitting guns, a flow divider is usually needed. Besides that, wedge blocks and seals are common wear parts. Proper spare parts planning can help reduce downtime during continuous work.
Hydraulic Rock Splitter Construction Process Explained
To use a hydraulic rock splitter for sale efficiently, operators need a clear workflow. The process is not complicated, but each step matters for safety, splitting effect, and tool life.
1. Mark the Splitting Line
First, inspect the rock condition and decide where the crack should run. Natural grain, layer direction, and the target block size all matter. A clear splitting line helps improve both accuracy and output.
2. Drill the Holes
Next, drill holes with the right diameter and depth. YG hydraulic splitters usually require holes around 42-46 mm, depending on the model. The hole depth should match the wedge length and project requirement. In most cases, the hole should not be too shallow, because shallow holes may reduce splitting effect and increase wedge wear.
3. Clean the Holes
After drilling, clean out dust, water, and broken debris. A clean hole helps the splitting gun enter smoothly and sit in the correct position. It also supports more stable force transfer during splitting.
4. Insert the Splitting Gun
Place the splitter into the drilled hole and align the wedge direction with the planned crack direction. This step is simple, but correct positioning can greatly affect the final breaking result.
5. Start the Hydraulic Pump
Once the system is ready, start the power station. High-pressure oil pushes the piston, and then the center wedge moves forward. At the same time, the side wedges expand outward and press strongly against the rock wall.
6. Wait for the Rock to Crack
Under strong splitting force, the rock begins to crack and open. The splitting time is often around 10-15 seconds, although the real result also depends on rock hardness, drilling quality, and crack layout. After one hole finishes, move to the next point and continue the work.
7. Remove and Maintain the Splitter Properly
After the pressure returns, remove the splitting gun carefully. Operators should avoid shaking it from side to side. In addition, regular lubrication of the wedges helps reduce wear. Clean maintenance after work can keep the machine in good condition for longer projects.
What Rocks and Geological Conditions Is It Suitable For?

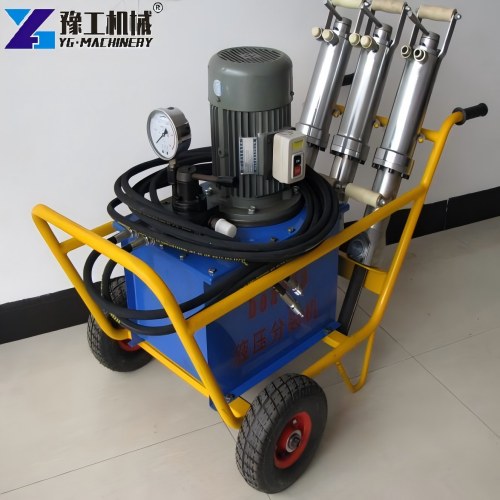

A portable hydraulic stone splitter is suitable for many hard and medium-hard materials. It is especially useful when blasting is restricted or when the project needs controlled cracking.
Common Rock Types
YG hydraulic splitters are often used on granite, basalt, limestone, sandstone, marble, and other hard natural stones. They are also useful for secondary breaking of oversized rocks after excavation or mining. In many quarry projects, large blocks need to be separated into smaller pieces for transport or processing. In that situation, hydraulic splitting is often a practical solution.
Concrete and Demolition Work
Besides natural rock, the machine also works on reinforced concrete, foundation blocks, concrete walls, and partial demolition areas. For example, if a contractor needs to remove a concrete section near existing structures, a hydraulic splitter can offer more control than hammer breaking.
Suitable Geological and Jobsite Conditions
This machine works well in quarry benches, foundation pits, tunnel openings, road trenching sites, and mountain excavation projects. It is also suitable for urban jobsites where noise, vibration, and flying debris need better control. Because the equipment is compact and flexible, it can work in spaces where large crushing machines are not convenient.
How to Choose the Right Machine for Your Project？
Choosing the right model is not only about force. It also depends on drilling depth, rock condition, working environment, and the number of guns you need.
1. Check Rock Hardness and Block Size
Harder rock and larger blocks often need stronger splitting force and deeper holes. If you mainly split medium rock in smaller sections, YG-250 may be enough. If you handle larger rock masses or want more capacity, YG-350 or YG-450 may be a better fit.
2. Match the Hole Depth and Hole Diameter
Your drilling equipment and your splitter should match. Before ordering, confirm the hole diameter and depth you can drill on site. This helps avoid mismatch between the splitter and the rock drill.
3. Choose Electric or Diesel Power
If electricity is easy to access, an electric hydraulic station may be the better choice. If the site is far from a stable power source, diesel power gives more flexibility. YG can recommend the right power option based on your project location.
4. Decide the Number of Splitting Guns
Small jobs may only need one gun. However, larger quarry or demolition projects often choose one pump with two or three guns to improve output. The right combination depends on project size, labor arrangement, and expected daily productivity.
5. Understand the Hydraulic Rock Splitter Price
Hydraulic rock splitter price is usually affected by model, power station type, number of splitting guns, hose length, and spare parts package. Therefore, there is no single fixed quote for every customer. To get an accurate hydraulic rock splitter price, it is best to share your rock type, drilling depth, preferred power source, and working quantity with the supplier.
YG Hydraulic Rock Splitter for Sale
YG Machinery supplies hydraulic rock splitter for sale for quarrying, mining, demolition, and construction projects. We offer different splitter models, electric or diesel hydraulic stations, hose solutions, and multi-gun matching plans. Our team can suggest a suitable machine according to your rock type, hole depth, and work output target.
In addition to the splitter itself, we can also provide practical support before shipment. This includes model selection advice, wearing parts suggestions, and packing recommendations for export. For customers who need a more integrated solution, we also offer integrated rock drill and splitter. This type of equipment can combine drilling and splitting functions in one workflow and may improve efficiency on certain rock excavation projects.
If you are looking for a hydraulic rock splitter for sale, welcome to contact YG Machinery for model recommendation and quotation. To help us offer the right solution, you can send your rock type, hole depth, required gun quantity, and destination country. Then we can provide a suitable machine plan and a detailed price reference as soon as possible.
