YG Machinery is a professional manufacturer focused on mini lifting machinery. As a classic model in the small spider crane series, this lifting machine fits complex and narrow working sites perfectly. It features compact crawler design, flexible movement and stable lifting performance. The equipment can adapt to indoor construction, urban renovation and many other working scenarios. Meanwhile, YG keeps complete production standards to ensure every machine works steadily in long-term use.
3 Ton Spider Crane Technical Parameters
The table below lists clear and practical parameters of YG classic mini crawler crane for your reference.
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Application Fields Of 3 Ton Spider Crane
In addition to basic lifting work, the crane covers multiple industry fields.
- Urban building renovation. It enters narrow urban alleys and residential corridors easily. It completes exterior wall repair, window installation and roof material lifting efficiently. Traditional large cranes cannot reach these tight areas.
- Factory industrial maintenance. It moves freely inside workshops with limited space. It installs mechanical parts, electrical equipment and production line components safely. It also handles daily equipment maintenance work well.
- Landscape and garden engineering. The machine works for tree pruning, tree transplanting and rockery placement. It protects ground surface without leaving heavy pressure marks. It is ideal for park and community landscape projects.
- Indoor construction work. Its small body size allows access to indoor floors and basement spaces. It finishes heavy material handling without damaging floors or walls.
- Warehouse and logistics handling. It stacks heavy goods and loads cargo in small logistics yards. It moves flexibly between shelves and improves overall work efficiency greatly.
Advantages Of YG Small Spider Crane
YG small spider crane owns many practical strengths compared with ordinary lifting equipment.
- Standard oil-electric hybrid design. All YG spider cranes come with factory-equipped oil-electric hybrid power. Users can switch power mode freely according to site conditions. It saves fuel cost and reduces on-site noise effectively.
- Free voltage customization. The classic 3 ton model uses 380V voltage as standard. YG can customize other voltage types based on customer demands. The customization service requires no extra charge for buyers.
- Flexible size and space adaptability. The whole machine keeps a compact overall structure. It passes narrow doorways, small passages and indoor working areas smoothly. It breaks the space limit of traditional large cranes.
- Optional high-standard emission power setup. YG offers multiple upgraded power options to meet EPA and Euro V emission needs. Buyers can upgrade configuration to match local environmental rules. Each upgrade has clear and transparent pricing.
- Fast production and delivery cycle. The 3 ton model has a short lead time of around 3 days. Other spider crane models need only 5 to 7 days for production. It helps buyers arrange project schedules in advance.

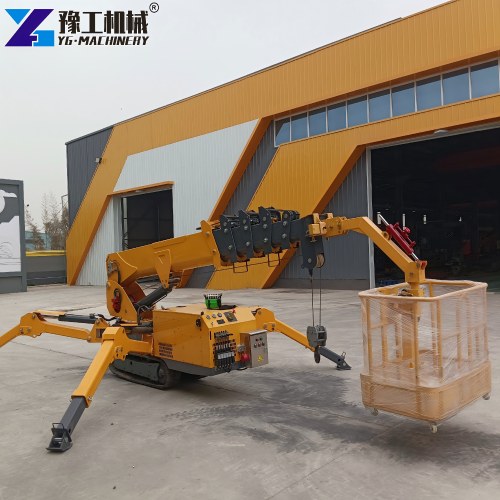

- Rich optional supporting parts. YG supplies 2-section fly jib in 2m and 3m sizes. It also provides matched glass suction cup for glass installation work. Buyers can match accessories according to actual job needs.
Spyder Crane For Sale Common FAQ
Yes, it supports voltage customization. YG sets 380V as standard voltage, and can adjust voltage for different country markets without extra cost.
A full container can load 5 to 6 units. The compact body design saves shipping space and cuts down overall logistics cost for buyers.
No, it has no driving cabin. Only 5 ton and 8 ton models are equipped with independent driving seats for long-time operation.
Yes, it can meet the two emission standards. Buyers can select upgraded power configurations, with clear additional pricing for each option.
The lead time is around 3 days. Sufficient raw material stock and mature production line support fast delivery for the hot-selling model.
Buy 3 Ton Spider Crane From YG Machinery
If you are looking for spyder crane for sale, YG is your reliable supplier choice. YG offers favorable spider crane price with factory direct sales. There are no middlemen to raise extra costs for global buyers.
Besides the mainstream 3 ton crawler model, YG also provides complete series models.You can choose 5 ton, 8 ton spider crane for larger lifting tasks.For special demands, YG can customize 1.5 ton mini models.Over 15 ton large cranes are also available on custom order with confirmed boom length.
YG provides one-stop service including configuration selection, accessory matching and arrangement of sea shipment. Every machine passes strict quality inspection before delivery. You can contact YG team anytime to get a detailed quote and technical parameter list.
Overall, the 3 Ton Spider Crane is a cost-effective small lifting solution. It combines flexible performance, low use cost and wide application ranges. YG always focuses on product quality and customer service, and welcomes global clients to inquire and cooperate.
