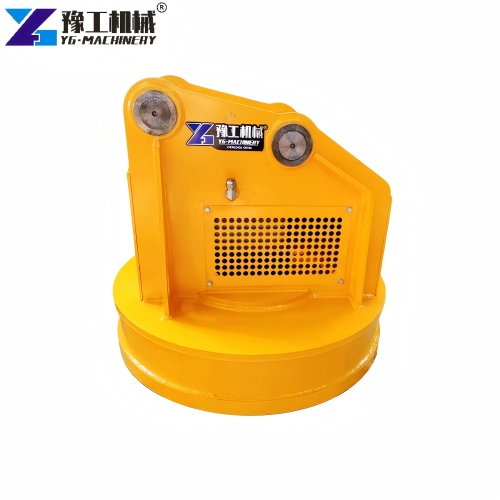

If you are looking for a faster and safer way to handle steel scrap, a hydraulic magnet is one of the most effective excavator attachments on the market today. YG Machinery designs and manufactures heavy-duty hydraulic magnets that work with excavators ranging from 12 tons to 36 tons. These machines help operators pick up irregular ferrous materials quickly, without relying on manual labor or traditional clamps. The hydraulic magnet uses electromagnetic force powered by a hydraulic-driven generator. Once energized, it attracts ferrous metal instantly. When the operator cuts the power, the material drops cleanly into the target area. This process saves time, reduces labor costs, and improves site safety. YG Machinery has supplied hydraulic magnets to clients in Southeast Asia, the Middle East, Africa, and Europe. Each unit goes through strict quality checks before shipment. Customers can also request custom configurations to match their specific excavator models.
Hydraulic Magnet Parameter – 1000T, 1200T, and 1300P Models
YG offers three standard models. Each one targets a different excavator weight class. The table below shows the key parameters for each model. Use it to find the right fit for your machine.
| Model | 1000T | 1200T | 1300P |
| Weight | 1450kg | 1950kg | 2150kg |
| Dimension | 1000*1350*1150mm | 1200*1650*1150mm | 1300*1750*1150mm |
| Magnet Power | 7000gs | 8000gs | 10000gs |
| Work Pressure | 20Mpa | 20Mpa | 20Mpa |
| Hydraulic Oil Flow | 45L/min | 75L/min | 85L/min |
| Generator Power | 8000W | 15000W | 20000W |
| Voltage | 100-500V | 100-500V | 100-500V |
| Applied Excavator | 12-18T | 18-25T | 25-36T |
How to Operate the Excavator Magnet Step by Step
Operating this attachment is straightforward. Most trained excavator operators can learn the process within a single shift. Here is a simple overview of the standard workflow.
1. Mount and Connect the Attachment
First, attach the unit to the excavator’s quick coupler. Then connect the hydraulic oil hoses and the power cable from the on-board generator. Make sure all fittings are secure before starting the machine.
2. Set the Pressure and Oil Flow
Next, adjust the hydraulic pressure and oil flow rate according to your model’s specifications. For example, the 1200T requires 75 L/min of hydraulic oil flow at 20 MPa. Setting these values correctly protects the system and ensures full performance.
3. Power On and Confirm Magnetization
Start the generator and allow it to reach stable output. The indicator light will confirm that the unit has reached its rated Gauss level. At this point, the attachment is ready for operation.
4. Pick Up and Release Material
Move the arm toward the scrap pile. The magnetic face will attract ferrous materials automatically on contact. Then swing the arm to the drop zone and cut the power. The load releases cleanly. Repeat the cycle to move large volumes of scrap in a short time. After each shift, inspect the magnet face, hydraulic hoses, and electrical connections. Regular maintenance extends the service life of the unit significantly.
Hydraulic Scrap Magnet vs. Traditional Lifting Clamps
Many operators wonder how a hydraulic scrap magnet compares to conventional lifting tools. The difference is significant, especially when handling irregular or loose ferrous materials.
Traditional clamps require a consistent shape to grip effectively. They also need additional workers to guide the load and ensure a secure hold. In contrast, this attachment attracts material the moment it makes contact. No clamping, no adjusting, and no extra hands needed. This leads to a major increase in cycle speed. In practice, the unit can complete three to five times more pick-up cycles per hour than a standard clamp. Moreover, the risk of dropped loads decreases because the operator controls everything from the cab. Traditional clamps, on the other hand, depend more on manual coordination, which increases the chance of accidents. For scrap yards, demolition sites, and steel processing plants, switching to an excavator magnet attachment typically delivers a fast return on investment. The reduction in labor alone often justifies the cost within the first few months of operation.
What Materials Can the Mini Excavator Magnet Attachment Handle
This attachment works specifically with ferrous metals. In other words, it attracts iron and steel-based materials. Here are the most common materials and application scenarios where it performs well.
Steel scrap and offcuts are the most typical use case. Recycling facilities use this type of attachment daily to sort and move loose metal pieces. It handles irregular shapes that clamps simply cannot grip. Scrap pipes and steel plates also respond well to the strong magnetic field. Even large, flat sheets lift cleanly without slipping. In demolition projects, the unit picks up rebar, iron beams, and broken steel structures from rubble piles with ease. Cast iron parts and worn mechanical components from factories are another common application. It clears work areas quickly, reducing downtime on the production floor. Compressed vehicle bodies at auto recycling centers are also a good match. The 1300P model, with its 10000 GS output, handles heavy compressed metal blocks without difficulty. However, this attachment does not attract non-ferrous metals such as copper, aluminum, or stainless steel. Operators should keep this in mind when working in mixed-material environments. Overall, it performs well across scrap recycling, demolition, port logistics, steel manufacturing, and foundry operations.
Buy YG Hydraulic Magnet – Get a Free Quote Today
YG Machinery sells directly from the factory. There are no middlemen, which means more competitive pricing and better after-sales support. Each unit ships with a one-year warranty and full technical documentation. The team also offers free engineer consultation to help customers select the right model for their excavator. Furthermore, YG supports custom configurations for non-standard machines. Delivery covers most major markets worldwide, including sea freight and door-to-door options. Many customers in the scrap recycling and demolition industries have reordered multiple units after their first purchase, which reflects the reliability of YG products in real working conditions. To request a quote or ask a technical question, contact YG Machinery through WhatsApp, email, or the inquiry form on the website. The team typically responds within 24 hours on business days. Whether you need one unit or a bulk order, YG is ready to support your project from selection to delivery.
Beyond the hydraulic magnet, YG Machinery also supplies a full range of excavator attachments to meet different job site needs. These include the Excavator Orange Peel Grapple, which is ideal for grabbing and sorting bulky scrap and waste materials. The Drum Cutter Machine suits rock excavation and tunnel work. Hydraulic Shears for Excavator make cutting through steel beams and vehicle bodies fast and efficient. The Excavator Pile Driver handles foundation work on construction sites. The Hydraulic Pile Breaker trims concrete piles cleanly after driving. The Integrated Rock Drill and Splitter combines drilling and splitting in one unit, saving time on hard rock projects. All attachments come from the same factory, with the same standard of quality control and after-sales support. Contact YG Machinery today to learn more about any of these products or to request a combined quote.
