A steel fabricator does not buy blasting width alone. The machine must produce a repeatable cleanliness and surface profile at a line speed that fits the coating process, while recovering usable abrasive and containing dust. Plate thickness, section geometry, rust condition, coating specification and downstream primer timing therefore belong in the same purchasing decision. This guide shows how to turn the required finish into practical machine, media and inspection requirements.
What Surface Result Must A Steel Shot Blaster Produce?
Begin with the coating specification and the acceptance standard used by the customer or paint supplier. Cleanliness describes how completely rust, mill scale, paint and contamination must be removed; surface profile describes the anchor pattern left for coating adhesion. These are related but not interchangeable. Aggressive blasting can remove scale quickly yet create a profile that is too deep for a thin coating, while a visually bright surface may still fail the specified cleanliness grade.
Record the incoming condition, steel grade, minimum thickness, maximum width and every section shape. Flat plate presents a predictable target distance, but beams, welded fabrications and recessed areas create shadow zones. If mixed workpieces will share one line, define the most demanding geometry and the normal production mix. The supplier can then assess wheel number, wheel position, opening size and conveyor arrangement rather than quoting from width alone.
Which Steel Shot Grade Matches The Required Profile?
Larger, harder shot generally transfers more impact energy and can create a stronger profile, but it may be unsuitable for thin plate or a fine coating system. Smaller media provides more impacts per kilogram and can improve coverage, although it may take longer to remove heavy scale. A practical operating mix often contains several particle sizes because media wears during use. The make-up addition should restore the working mix instead of replacing everything with one nominal new-shot size.
Ask the coating supplier for the acceptable profile range, then test the proposed abrasive on representative material. Check whether the target is plate, section steel or a welded assembly and whether the surface already carries heavy rust or scale. Media selection should protect thin edges and dimensional features while still cleaning the slowest areas. The test result becomes the process reference for conveyor speed and wheel output.
Once the required profile and workpiece range are known, send YG sample dimensions, photographs and the coating requirement so the blast arrangement can be reviewed.
How Are Blast Wheel Output And Conveyor Speed Balanced?
Wheel output controls the mass of abrasive striking the work, while conveyor speed controls exposure time. Increasing wheel output without considering coverage can concentrate wear and energy in one zone. Slowing the conveyor can improve cleaning, but it reduces line capacity and may overblast thin or already clean material. Commissioning should therefore use a controlled test matrix: hold the abrasive mix constant, adjust one variable at a time and measure both cleanliness and profile.
The published roller-conveyor range illustrates why the workpiece envelope matters. Models cover effective cleaning widths from 800 to 4000 mm, conveyor speed of 0.5–4 m/min and different shot quantities and power levels. The correct model is not automatically the widest. A buyer should compare normal plate width, feed opening, longest workpiece, hourly tonnage and the amount of product changeover expected.
| Parameter | YG-698 | YG-6915 | YG-6925 | YG-6940 |
| Effective Cleaning Width | 800 mm | 1500 mm | 2500 mm | 4000 mm |
| Feed Opening | 1000 × 400 mm | 1700 × 400 mm | 2700 × 800 mm | 4200 × 400 mm |
| Conveyor Speed | 0.5–4 m/min | 0.5–4 m/min | 0.5–4 m/min | 0.5–4 m/min |
| Steel Sheet Thickness | 3–60 mm | 1.5–60 mm | 3–60 mm | 4.5–100 mm |
| Shot Quantity | 4 × 180 kg/min | 4 × 250 kg/min | 6 × 250 kg/min | 8 × 360 kg/min |
| Total Power | 90 kW | 113.5 kW | 204.8 kW | 293.6 kW |
How Should Abrasive Recovery And Dust Control Be Planned?
Abrasive recovery determines whether the process remains stable after the first hours of production. The system must collect spent media, separate scale and fines, return usable shot and prevent oversized debris from reaching the wheels. Poor separation changes the operating mix, increases wheel wear and makes the surface result less predictable. Inspection access to elevators, separators, screens and storage hoppers should be included in the layout.

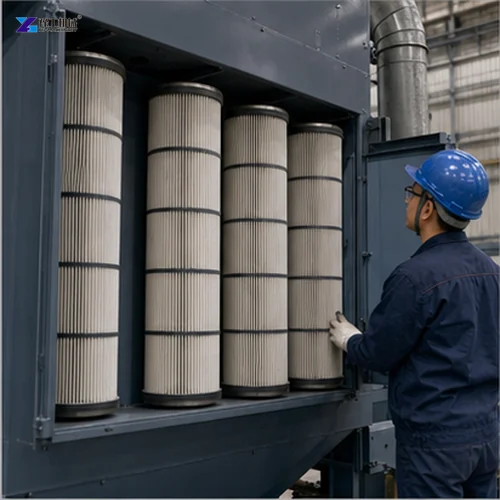

Dust collection is part of surface quality as well as housekeeping. The collector must match the enclosure airflow and contaminant load, with safe duct routing and a practical filter-cleaning plan. Operators should monitor differential pressure and inspect seals because air leakage can release dust and upset enclosure balance. Confirm local requirements for dust classification, disposal and fire protection before the equipment layout is frozen.
How Is Blasted Steel Accepted Before Coating?
Inspection should occur under suitable light immediately after blasting. Compare cleanliness with the specified reference, measure profile using an agreed method and check corners, welds and shadowed faces separately. Dust, soluble contamination or residual abrasive may require additional checks. Record conveyor speed, wheel current, abrasive mix and inspection results for the accepted setup so later shifts can reproduce it.
Coating delay matters because freshly blasted steel begins to react with the environment. Define the maximum permitted time between blasting and primer application for the actual humidity and handling conditions. Keep blasted steel dry and avoid bare-hand contamination. If the line stops, quarantine questionable work rather than allowing it to move into coating without review.
For related equipment ranges, review the YG steel shot blaster, industrial shot blasting equipment and portable shot blaster guide.
Steel Shot Blaster FAQ
Select shot size from the required profile, material thickness, incoming scale and coating specification. Confirm the choice with a representative blast test.
Carry-out, separator settings, leakage, broken media, workpiece geometry and operating mix all affect consumption. Track additions against processed tonnage.
It may be possible when the opening, wheel arrangement and conveying system cover both geometries, but shadow zones and handling must be tested.
Provide workpiece drawings, material and rust condition, required cleanliness and profile, hourly tonnage, coating system, available space, power and destination.
Define The Blasting Process Before Comparing Machines
A useful quotation starts with the accepted surface, workpiece envelope and production rate. Add the coating specification, abrasive preference, dust requirements and inspection method. YG can then compare wheel layout, conveyor width, media recovery and collector capacity as one process instead of treating the blaster as an isolated cabinet.
