A Singapore commercial renovation required accurate reinforced-concrete openings with controlled noise, water and debris. This case explains how the specified wall saw capacity, wireless operation and site method supported that requirement.
This guide covers complete parameters, setup, safety, operating cost and purchasing checks. Explore the YG construction machinery range or send your project details for model selection.
What Did The Singapore Wall Cutting Project Require?

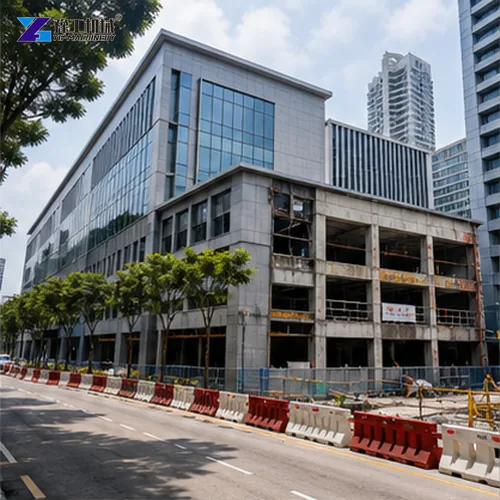

The application was a commercial renovation in Singapore where new structural and service openings had to be formed in reinforced concrete. The work area required precise edges, predictable scheduling and strict control of noise, water and debris. A track-mounted High Frequency Wall Saw was selected to keep the cut aligned and reduce uncontrolled impact on the surrounding structure.
Before production, the contractor needed to verify drawings, embedded services and the status of every proposed cut with the responsible engineer. Opening dimensions, cutting sequence, section weight and removal route were documented so the machine, lifting equipment and crew could be planned together.
Document the assumed concrete thickness, steel density and access condition beside every capacity calculation. This gives purchasing, engineering and site teams one shared baseline and prevents a catalogue maximum from being treated as guaranteed production under every condition. Apply this check whenever the High Frequency Wall Saw is moved to a new work area or configured for a different opening.
Why Use A High Frequency Wall Saw In Singapore?
The selected system provides a maximum published output of 16 kW with a 1200 mm blade and up to 510 mm cutting depth. Wireless control lets the operator monitor feed from a position clear of the blade line and falling-section zone. IP67 protection supports demanding wet-cutting conditions when the equipment is used according to its instructions.
For an occupied or time-sensitive renovation, controlled rail travel is more useful than aggressive impact. The concrete wall cutting machine creates a planned kerf that can be inspected, supported and removed in defined pieces.
Request a representative cutting trial or video that shows rail fixing, blade engagement, water control and the finished edge. Record blade specification and operating settings during the trial so the observed result can be compared with the planned application. Apply this check whenever the High Frequency Wall Saw is moved to a new work area or configured for a different opening.
Complete High Frequency Wall Saw Parameters
The table lists every published specification used for this Singapore configuration. Final voltage, blade package, rail length and accessories must be confirmed for the destination and project.
| Parameter | Published Specification |
| Maximum Cutting Depth | 510 mm |
| Maximum Blade Diameter | 1200 mm |
| Blade Mounting | 6 countersunk screws on a 110 mm circle |
| Motor | Water-cooled high-frequency motor |
| Maximum Output | 16 kW |
| Protection Class | IP67 |
| Saw Head Including Feed Motor | 27 kg |
| Main Motor | 18 kg |
| Control Unit Supply | 380–460 V, 50/60 Hz; single-phase option available |
| Control Unit Weight | 19 kg |
| Wireless Controller Weight | 2 kg |
Include every auxiliary item in the technical review: rails, anchors, guards, hoses or cables, water connectors, control equipment, installation tools and recommended consumables. Missing accessories often create more commissioning delay than the primary machine itself. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Was The Wall Saw Guide Rail Planned?

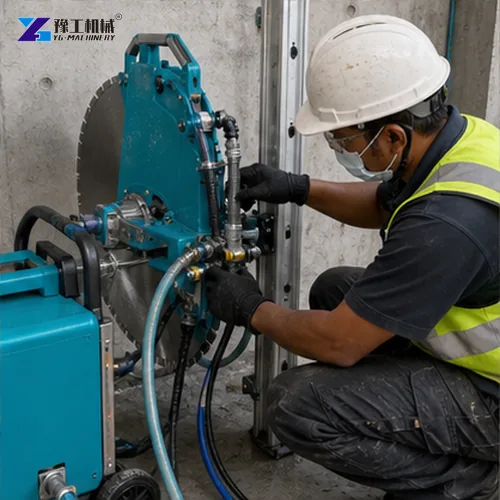

The cut line was transferred from approved drawings and checked against both faces of the wall. Anchor positions were selected outside critical edges and scanned areas. Rail alignment was verified before the blade was installed because a small setup error can affect the entire finished opening.
The crew also planned access for the 27 kg saw head, 18 kg main motor and 19 kg control unit. Component handling, not just total machine weight, determined how the system moved through the commercial building.
Assign inspection responsibility before equipment reaches site. The responsible person should approve the structure, layout, anchors, utilities and section-removal method, then record changes made during cutting. Controlled records make later quality review and troubleshooting much faster. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Were Water, Slurry And Dust Controlled?

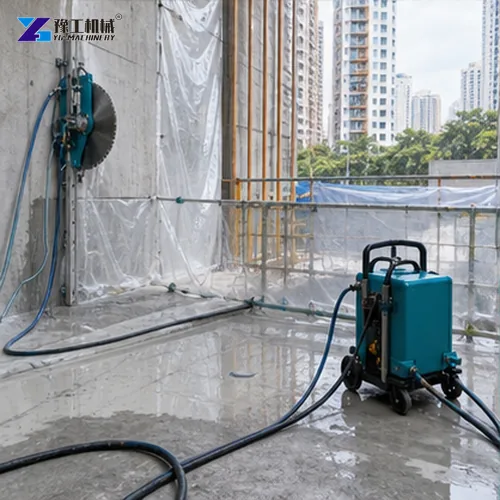

Water-cooled cutting suppressed airborne dust and protected blade life, but runoff needed physical containment. Barriers, wet vacuum equipment and collection containers were positioned before the first cut. Sensitive finishes and occupied routes were isolated from hoses and slurry.
The work method defined where collected material would settle and how it would be removed under site rules. This prevented a precise wall saw Singapore operation from creating avoidable cleanup or drainage problems.
Production estimates should include setup, scanning, rail relocation, blade changes, slurry collection and concrete removal. Calculate usable openings per shift rather than blade travel alone. This produces a realistic labor plan and prevents unsafe pressure to accelerate the final release cut. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Was Reinforced Concrete Cut Safely?

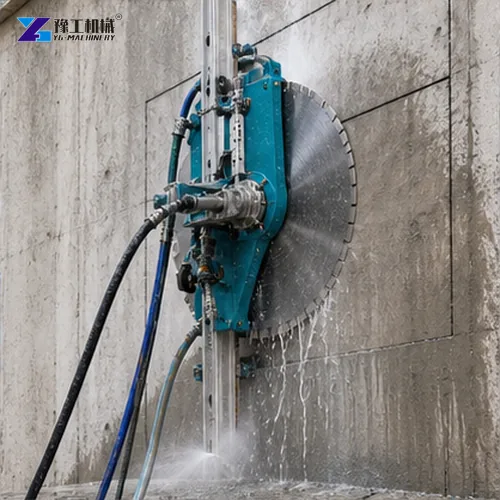

The team identified reinforcement and adjusted feed to blade load rather than forcing progress. Every cut section was supported before the final pass. Rated lifting points and an exclusion zone prevented the released concrete from becoming an uncontrolled load.

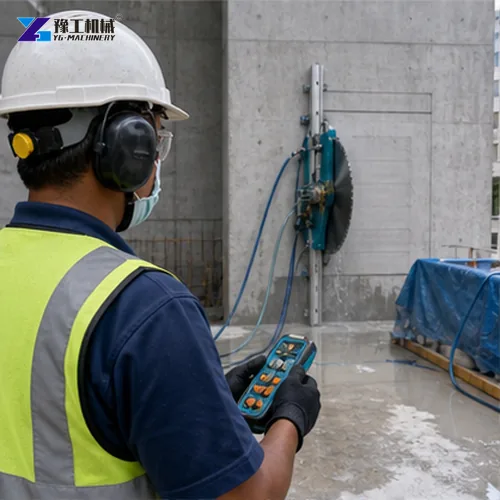

Wireless operation improved positioning but did not replace guarding, inspections or communication. The operator, spotter and lifting crew followed one sequence and stopped when visibility, water flow or support condition changed.
Prepare a maintenance schedule based on operating hours and observed condition. Inspect fasteners, rail surfaces, feed components, seals, connectors, guards and emergency controls. Keep critical wear parts clean and identified so replacements can be installed without mixing incompatible components. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
What Quality Checks Were Used?

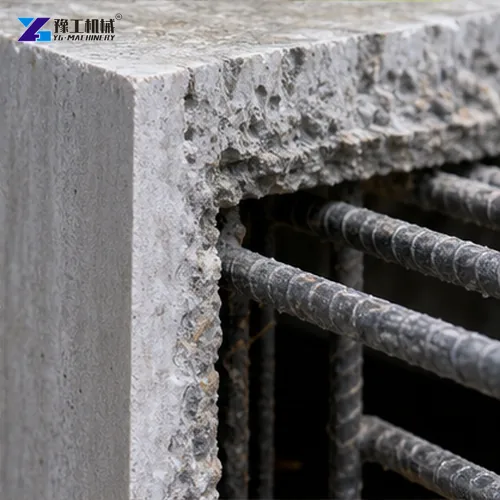

The opening was checked for location, size, edge condition and damage outside the cut zone. Rail position, blade condition and cooling flow were recorded during the work. A clean edge reduced later finishing and helped the next trade install its frame or building service accurately.
Acceptance focused on the approved drawing rather than cutting speed alone. That protected the schedule from rework and gave the buyer a measurable basis for evaluating the High Frequency Wall Saw.
Treat water and electricity as engineered site services. Confirm supply capacity, protection, hose or cable routing and isolation points before work. Keep connections outside standing water and protect routes from vehicles, sharp edges and falling concrete sections. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Should A Singapore Buyer Specify The System?
Provide wall thickness, opening sizes, concrete strength, reinforcement information, voltage, frequency, access limits, permitted work hours and water disposal rules. State whether wireless control, additional rails, spare blades and onsite commissioning are required.
Also confirm local electrical connection, lifting and occupational safety requirements with qualified Singapore professionals. The supplier can configure equipment, but project-specific approvals remain with the buyer and responsible site team.
Compare suppliers using a written compliance matrix. Mark each requirement as included, optional, excluded or requiring local preparation. This simple document exposes scope differences and gives the buyer a reliable basis for technical approval and final contract discussion. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
What Was The Practical Project Outcome?

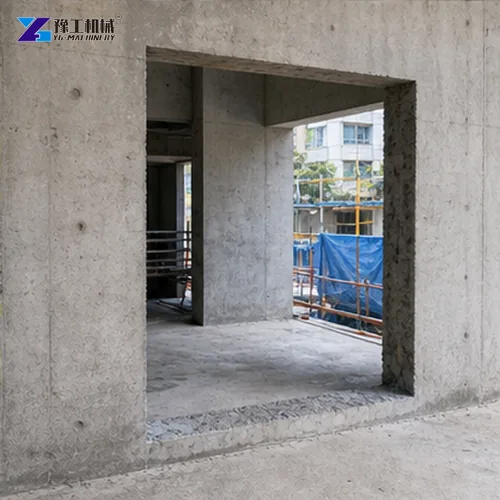

A planned track-mounted process delivered accurate openings while supporting noise, dust and schedule controls typical of commercial renovation. The case demonstrates how equipment selection, rail setup, cutting sequence and section removal must be designed as one method.
For a similar Singapore project, YG Machinery can prepare a High Frequency Wall Saw quotation based on drawings and site conditions. Include destination and delivery deadline so the package can account for freight, accessories and commissioning support.
Commissioning should progress through visual inspection, no-load checks, controlled trial cutting and acceptance of a measured opening. Train more than one operator in setup, normal adjustment, cleaning, fault response and safe shutdown, then keep the approved settings with the equipment. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
High Frequency Wall Saw FAQ
The published maximum cutting depth is 510 mm with a maximum 1200 mm blade.
The water-cooled high-frequency motor has a published maximum output of 16 kW.
The published configuration includes a wireless controller weighing 2 kg.
Send drawings, thickness, reinforcement, voltage, access, water controls, accessories, destination and schedule.
Request A High Frequency Wall Saw Recommendation
Send YG Machinery your drawings, wall thickness, reinforcement details, required openings, site utilities and destination. We will compare the published parameters and prepare a suitable High Frequency Wall Saw configuration and quotation.
