A Concrete Wall Saw Machine creates accurate openings in reinforced concrete for doors, windows, ventilation, utilities and controlled structural alteration. Buyers must match cutting depth, blade diameter, drive system and site utilities to the actual wall—not simply choose the largest model.
This guide covers complete parameters, setup, safety, operating cost and purchasing checks. Explore the YG construction machinery range or send your project details for model selection.
How Does A Concrete Wall Saw Machine Work?
A Concrete Wall Saw Machine mounts a diamond blade carriage on a rigid guide rail fixed to the structure. The feed mechanism moves the saw along a controlled line while the blade cuts concrete and reinforcement. This arrangement produces straighter openings than handheld cutting and lets the operator control depth, feed speed and blade position from a safer working location.
Hydraulic power packs transfer energy through pressure-rated hoses, while electric systems use a dedicated motor and control unit. In both designs, cooling water reduces blade temperature and captures airborne dust. The rail, anchors, blade guard and slurry collection plan must be treated as one complete concrete cutting machine system.
Document the assumed concrete thickness, steel density and access condition beside every capacity calculation. This gives purchasing, engineering and site teams one shared baseline and prevents a catalogue maximum from being treated as guaranteed production under every condition. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
Which Concrete Wall Saw Machine Model Fits The Required Depth?
Begin with the finished opening and the maximum section thickness, then allow for blade radius, mounting clearance and access from one or both sides. The published hydraulic YG600 reaches 620 mm and the YG700 reaches 730 mm. Published electric configurations cover 320, 420 and 520 mm depths with 800, 1000 and 1200 mm blades.
Do not select solely from maximum depth. Confirm available voltage, water supply, lifting method, wall orientation and the route for hoses or cables. A hydraulic wall saw can suit demanding continuous work, while an electric wall saw can simplify mobilization where a compatible electrical supply is available.
Request a representative cutting trial or video that shows rail fixing, blade engagement, water control and the finished edge. Record blade specification and operating settings during the trial so the observed result can be compared with the planned application. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.

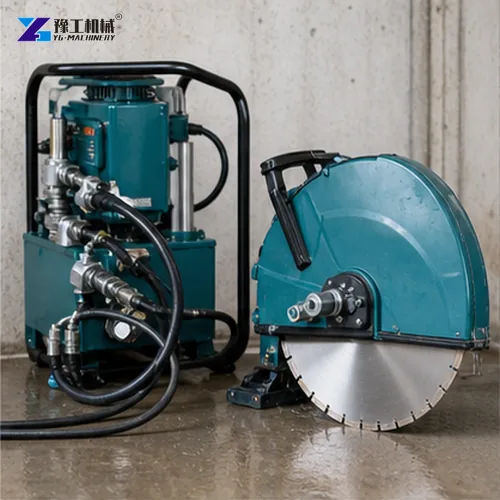

Complete Hydraulic Wall Saw Parameters
The following table preserves the complete published YG600 and YG700 comparison. Values should be confirmed on the final quotation because blade packages, voltage and accessories can be configured for the destination.
| Parameter | YG600 | YG700 |
| Power | 25 kW | 30 kW |
| Cooling | Air / water | Air / water |
| Rated Voltage | 380 V, 50 Hz | 380–420 V, 50–60 Hz |
| Pressure Stages | 3 | 3 |
| Maximum Operating Pressure | 200 bar / 20 MPa | 210 bar / 21 MPa |
| Oil Flow | 30–80 L/min | 40–100 L/min |
| Pump Dimensions | 600 × 650 × 1050 mm | 500 × 520 × 1100 mm |
| Pump Weight | 220 kg | 140 kg |
| Blade Diameter | 800–1400 mm | 800–1600 mm |
| Maximum Cutting Depth | 620 mm | 730 mm |
| Saw Maximum Pressure | 180 bar / 18 MPa | 200 bar / 20 MPa |
| Saw Maximum Oil Flow | 100 L/min | 100 L/min |
| Gearing | Gear | Gear |
| Saw Speeds | 450 / 950 / 1300 rpm | 450 / 850 / 1200 rpm |
| Saw Dimensions | 400 × 420 × 400 mm | 400 × 420 × 400 mm |
| Saw Weight | 38 kg | 39 kg |
Include every auxiliary item in the technical review: rails, anchors, guards, hoses or cables, water connectors, control equipment, installation tools and recommended consumables. Missing accessories often create more commissioning delay than the primary machine itself. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.

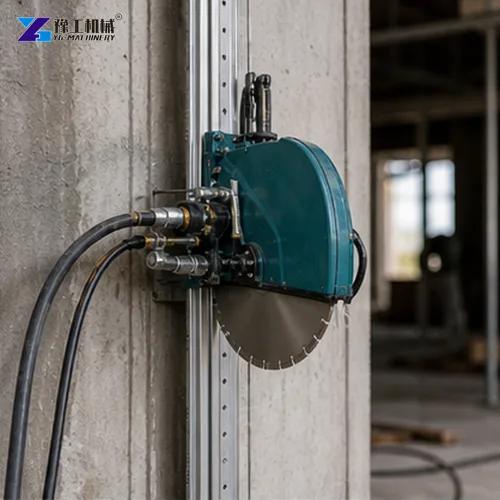

Complete Electric Wall Saw Parameters
The electric comparison includes the complete published depth, blade, power, speed, weight and dimensional data. Ask whether the quoted automation level includes automatic travel, remote control and the required guide rail.
| Parameter | YG800 | YG1000 | YG1200 |
| Automation | Manual | Semi-Automatic | Full Automatic |
| Maximum Cutting Depth | 320 mm | 420 mm | 520 mm |
| Blade Diameter | 800 mm | 1000 mm | 1200 mm |
| Power / Voltage | 7280 W / 220 V | 7580 W / 220 V | 7880 W / 220 V |
| Blade Speed | 400 rpm | 380 rpm | 350 rpm |
| Machine Weight | 35 kg | 38 kg | 45 kg |
| Dimensions | 55 × 55 × 78 cm | 55 × 55 × 88 cm | 55 × 55 × 98 cm |
Assign inspection responsibility before equipment reaches site. The responsible person should approve the structure, layout, anchors, utilities and section-removal method, then record changes made during cutting. Controlled records make later quality review and troubleshooting much faster. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Should Wall Saw Guide Rails Be Installed?
Survey the cut line, identify embedded services and obtain structural approval before drilling anchor holes. The mounting surface must carry rail and cutting reactions without movement. Align rail sections precisely, tighten anchors to the approved procedure and verify that the carriage travels freely before fitting the blade.
Plan the cutting sequence so the final concrete section remains supported. Large pieces can weigh several tonnes and must never be allowed to break free unexpectedly. Mark lifting points, install rated supports and define an exclusion zone before the concrete cutting machine starts.
Production estimates should include setup, scanning, rail relocation, blade changes, slurry collection and concrete removal. Calculate usable openings per shift rather than blade travel alone. This produces a realistic labor plan and prevents unsafe pressure to accelerate the final release cut. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Do Blade Diameter And Reinforcement Affect Cutting?
Blade diameter determines achievable depth but also changes torque, guard clearance and handling requirements. Select a blade bond and segment design for the concrete strength, aggregate and reinforcement. Heavy steel may reduce feed rate and increase water demand even when the nominal wall thickness is unchanged.
Use steady feed rather than forcing the blade. Sparks, vibration, changing motor load or a wandering cut are reasons to stop and inspect. A correctly matched wall saw blade cuts efficiently, preserves the drive system and helps produce an opening that needs less finishing.
Prepare a maintenance schedule based on operating hours and observed condition. Inspect fasteners, rail surfaces, feed components, seals, connectors, guards and emergency controls. Keep critical wear parts clean and identified so replacements can be installed without mixing incompatible components. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Should Cooling Water And Slurry Be Controlled?
Provide clean cooling water at the flow and pressure specified for the selected machine and blade. Position collection barriers before cutting, protect occupied rooms and prevent slurry entering drains without approval. Wet vacuum equipment and settlement containers make cleanup more predictable.
Water management is part of quality control. Inadequate flow can overheat the blade, while uncontrolled runoff creates slip hazards and property damage. Include hoses, connectors, filtration and disposal arrangements in the delivered concrete wall saw machine package.
Treat water and electricity as engineered site services. Confirm supply capacity, protection, hose or cable routing and isolation points before work. Keep connections outside standing water and protect routes from vehicles, sharp edges and falling concrete sections. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
Concrete Wall Saw Machine Safety Checklist
Confirm the structure, anchors, guards, emergency stop, cable or hose condition and blade direction before each shift. Isolate the work zone on both sides of the wall because the blade and removed section may be hazardous beyond the operator’s view. Use electrical protection suitable for wet cutting.
Only trained personnel should change blades or adjust the carriage. Disconnect and lock out power before service. The method statement should define stop conditions, communication, lifting responsibilities and the controlled removal of every cut section.
Compare suppliers using a written compliance matrix. Mark each requirement as included, optional, excluded or requiring local preparation. This simple document exposes scope differences and gives the buyer a reliable basis for technical approval and final contract discussion. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
How Much Does A Concrete Wall Saw Machine Cost?
Price depends on cutting depth, drive type, power pack, rails, blade package, remote controls, voltage and freight destination. Compare quotations using the same scope and request an itemized packing list, commissioning support, consumables and recommended spare parts.
Send wall thickness, opening dimensions, concrete condition, reinforcement details, site access, voltage and destination. These inputs allow YG Machinery to recommend a concrete wall saw configuration instead of quoting a machine that cannot be commissioned efficiently.
Commissioning should progress through visual inspection, no-load checks, controlled trial cutting and acceptance of a measured opening. Train more than one operator in setup, normal adjustment, cleaning, fault response and safe shutdown, then keep the approved settings with the equipment. Apply this check whenever the selected wall saw system is moved to a new work area or configured for a different opening.
Concrete Wall Saw Machine FAQ
Yes. Use a compatible diamond blade and operating settings, and account for reinforcement when estimating feed rate and blade wear.
The published YG700 reaches 730 mm with blades from 800 to 1600 mm.
The guide rail controls carriage movement and keeps the blade aligned through the planned opening.
Provide wall thickness, opening size, concrete and reinforcement, voltage, water supply, access and destination.
