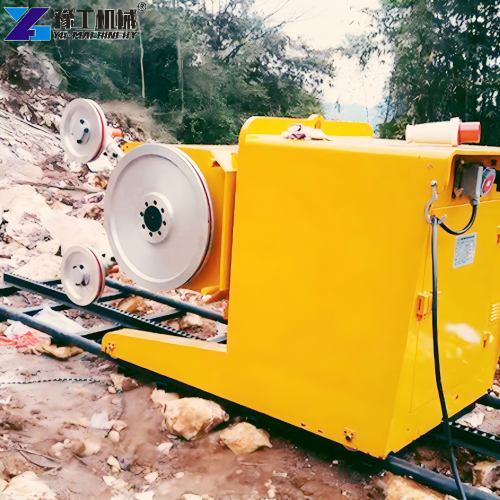

A concrete wire saw is a diamond-equipped cutting tool built for precise stone and concrete separation. Operators rely on it for granite quarrying, reinforced concrete demolition, and large-scale industrial cutting. Unlike traditional blasting methods, this machine uses a continuous diamond wire loop that moves at controlled speed. The wire gradually cuts through dense material with minimal vibration and dust. Many contractors choose this equipment because it protects surrounding structures during sensitive projects. YG Machinery designs each concrete wire saw for durability, easy maintenance, and consistent cutting performance across different job sites. This guide explains how the machine works and how buyers can select the right model.
Concrete Wire Saw Machine Parameters
The table below lists the technical specifications for this concrete wire saw. These figures cover wire saw wheel performance and hydraulic pump output. Engineers can use them to match the machine to project needs.
| Wire Saw Wheel Parameters | Hydraulic Pump Parameters | ||
| Wire Drive Mode | hydraulic | Motor Power | 22/25kw |
| Motor Type | HM-80, 2 Cylinders | Voltage | 220V/380V, 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Type | Gear Pump |
| Output Shaft Speed | 350/940/1300r/min | Main Drive Motor | 40-100L/min |
| Maximum Wire Length | 20m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Capacity | 17L |
| Wire Saw Wheel Weight | 64kg | Weight | 160kg |
| Motor Weight | 14kg | Size | 700*700*1200mm |
| Size | 1700*700*800mm |
How To Choose The Right Concrete Wire Cutting Machine?
Selecting a suitable concrete wire cutting machine depends on several practical factors. Buyers should review these points before placing an order.
- Choose Based On The Cutting Object Granite, marble, and reinforced concrete each demand different wire specifications. Harder stone needs a wire with a higher diamond bead density. Softer material allows faster feed speed without sacrificing wire life. Reviewing the material type first helps a concrete wire cutting machine perform efficiently on site.
- Choose Based On Cutting Depth Cutting depth determines the wire length and drive power needed for the job. A 20m maximum wire length suits large granite blocks and thick reinforced walls. Shallow cuts, however, work well with shorter loops and lower horsepower units. Matching depth requirements to a concrete wire saw setup avoids unnecessary equipment strain.
- Choose Based On The Construction Environment Confined spaces, underwater sites, and open quarries each call for different machine setups. Fully hydraulic feeding gives smoother control in tight or unstable areas. Outdoor mining sites often benefit from higher motor power for continuous operation. Environmental conditions directly influence the right drive mode and feeding method for each site.
- Choose Based On Budget Entry-level concrete wire cutting machine models suit smaller contractors handling occasional cutting projects. Higher-configured units fit large quarries running daily production schedules. Diamond wire saw price varies with motor power, wire length, and hydraulic pump capacity. Buyers should balance upfront cost against expected wire life and daily output.
Diamond Wire Saw For Concrete: Key Advantages In Mining
Mining operators increasingly choose a diamond wire saw for concrete and stone extraction. This equipment brings measurable benefits over traditional blasting or flame-cutting methods.
- Lower Stone Loss Blasting creates cracks that spread beyond the intended cutting line. Wire saw cutting follows a precise path, so operators lose far less usable stone. This precision protects material value during extraction.
- Higher Material Yield Because the cutting line stays accurate, quarries recover more finished blocks from each section. Fewer cracked or shattered pieces mean higher output per cubic meter of rock removed.
- Reduced Blasting Risk Removing explosives from the extraction process lowers safety incidents on site. Workers avoid flying debris, shockwaves, and unstable rock faces. This creates a calmer, more predictable working environment.
- Lower Labor Requirements A fully hydraulic feeding system reduces manual adjustment during operation. One or two operators can manage cutting tasks that once required larger blasting crews. This shift lowers daily labor costs across long-term projects.
These benefits explain why more quarries invest in a diamond wire saw for concrete extraction each year.
Case Study: Brazil Granite Mine Boosts Yield By 20 Percent
Client Background
A mid-sized granite quarry in Brazil supplied blocks to regional stone processors. The site handled dense, high-value granite with strict quality requirements from buyers.
Original Cutting Method
This quarry originally relied on blasting to separate granite sections. The method caused frequent micro-cracking, which reduced the number of usable blocks per blast.
Changes After Switching To Wire Saw Cutting
After adopting a concrete wire saw, the team achieved cleaner, straighter cuts. Cracked material dropped significantly, and block edges came out consistent and sellable.
Cost Changes
Equipment investment increased upfront, but wire and diamond bead costs remained manageable. Reduced material waste offset much of the added operating expense within months.
Return Analysis
Improved yield allowed the quarry to sell more finished granite from the same extraction volume. Management reported a 20 percent increase in usable output after the switch.
Customer Feedback
The site manager noted that cutting accuracy improved almost immediately after installation. He also mentioned that his crew adapted to the hydraulic feeding system within a short training period.
FAQ About Concrete Wire Saw Machines
Pricing depends on motor power, wire length, and hydraulic pump specifications. Basic models cost less. Higher-output units for large quarries carry a higher diamond wire saw price with added horsepower and drive capacity.
This machine supports a maximum wire length of 20 meters. That length lets operators cut large granite blocks and thick concrete walls without frequent repositioning.
Yes, the fully hydraulic feeding system supports stable operation in wet or submerged conditions. Many sewer, pipeline, and underwater demolition projects use this feeding method for consistent wire control.
The hydraulic pump operates at 22 to 25 kilowatts, running on 220V or 380V at 50Hz. This power range supports a working pressure between 15 and 20 Mpa for steady cutting force.
Yes, a diamond wire saw for concrete produces far less vibration and shockwave than blasting methods. This benefit protects nearby structures and lowers the risk of secondary cracking in surrounding rock.
Diamond Wire Saw Price – YG Factory Direct Rates
YG Machinery sells each wire saw directly from the factory floor. This approach removes middleman markups and keeps diamond wire saw price competitive for contractors and quarry operators. Buyers also gain direct access to technical support, spare parts, and custom configuration options. Beyond wire saw equipment, YG Machinery supplies a wide range of construction and mining machinery. The product line includes industrial shot blasting machines, skid steer track loaders, and small wheel loaders. Other equipment covers compact backhoe loaders, hydro seed machines, and tracked mini cranes. Additional machines include hydraulic stone splitters, concrete mixer and pumping machines, automatic brick making machines, and GRC machines. Contact the YG sales team today for a detailed quote and project consultation.
