If you are comparing road marker machine price, the first thing to understand is that there is no single price that fits every project. A cold paint machine for parking lots and a thermoplastic system for road construction use different working methods, components, and supporting equipment. Even two cold paint machines can have very different quotations when pump capacity, gun quantity, pressure, engine power, and accessories change.
For a contractor, the better question is not simply “Which machine is cheaper?” The real question is which configuration can complete your regular work without forcing you to pay for capacity you will rarely use. This guide focuses on the factors that actually affect purchase cost and helps you compare equipment from the perspective of daily construction work.
What Really Affects Road Marker Machine Price?
The marking method is usually the first factor that changes the quotation. Cold paint equipment sprays liquid coating directly onto the pavement, while thermoplastic equipment works with heated marking material and may require additional melting and bead-spreading equipment. That difference changes both the initial investment and the way the equipment is operated on site.
Configuration is the next major factor. A single-gun machine designed for normal striping work will usually have different pump, engine, flow, and weight requirements from a higher-output double-gun model. Optional spray guns, hoses, nozzles, glass bead systems, spare parts, and shipping arrangements can further change the final road marker machine price.
The most important cost factors normally include:
- Cold paint or thermoplastic marking method
- Single-gun or double-gun system
- Engine power
- Pump pressure and paint flow
- Required marking width
- Paint or material capacity
- Glass bead system
- Spare parts package
- Shipping destination
- Optional accessories
This is why quotations should always be compared using the same configuration. A lower base quotation may simply exclude components that another supplier has already included.
Road Marker Machine Parameters for Cold Paint Models
For buyers considering cold paint equipment, YG’s current configurations show how machine capability changes between single-gun and double-gun systems.
| Parameter | YG-6L Single Gun | YG-8L Double Gun |
| Engine Power | 4.3 HP | 7 HP |
| Paint Flow | 6 L/min | 8 L/min |
| Maximum Pressure | 25 MPa | 30 MPa |
| Spray Guns | Single Gun | Double Gun |
| Machine Weight | 72 kg | 128 kg |
The YG-6L is lighter and uses a single-gun configuration, which can be practical for parking lots, property maintenance, factory areas, and projects with frequent repositioning. The YG-8L provides higher paint flow, higher pressure, and a double-gun arrangement, making it more suitable for contractors who need greater output or more flexible line-marking work.
The most expensive configuration is not automatically the best choice. If most of your work involves one standard line at a time, paying for a larger system may not improve your actual project profitability. You can compare more details through our Cold Paint Road Marking Machine page.
Cold Paint or Thermoplastic: Which System Fits Your Work?
Cold paint machines are often selected for parking lots, warehouse traffic routes, factory safety markings, municipal maintenance, and other projects where flexibility matters. They require less material preparation than thermoplastic systems and can be moved between shorter marking sections relatively easily. For contractors handling mixed small and medium projects, this flexibility can be more valuable than maximum production capacity.

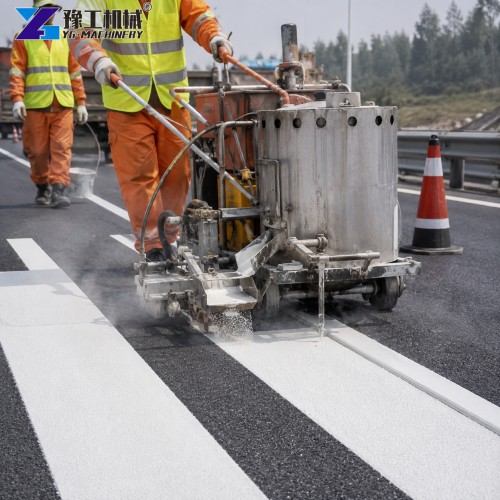

Thermoplastic machines are commonly considered when the project requires thicker pavement markings and heated material. A current YG thermoplastic configuration uses a 120 kg material bucket, supports approximately 100–450 mm marking widths, and has a machine weight of about 110 kg. Buyers should also consider whether a hot-melt kettle, bead system, or additional equipment is required to complete the full working system.
This difference has a direct effect on road marker machine price. A thermoplastic quotation should therefore be evaluated as a complete marking solution rather than comparing only the hand-push applicator with a cold paint machine.
Which Machine Makes More Sense for Your Projects?
Parking-lot contractors usually work with short lines, corners, arrows, disabled bays, loading zones, and frequent machine turns. In these conditions, maneuverability, easy cleaning, and quick preparation can matter more than maximum output. A lighter cold paint machine may therefore provide a better balance between investment and daily usability.
Road and municipal contractors often face a different situation. Long lines and repeated projects make output, coating requirements, and continuous working ability more important. When the project specification calls for thermoplastic material, the complete system should be selected around the expected daily workload rather than choosing equipment only by machine size.
Industrial facilities sit somewhere between these two situations. Factories and warehouses may need traffic lanes, pedestrian routes, safety zones, storage boundaries, and several different colors. The right machine should make frequent line changes manageable without creating excessive cleaning and setup time.

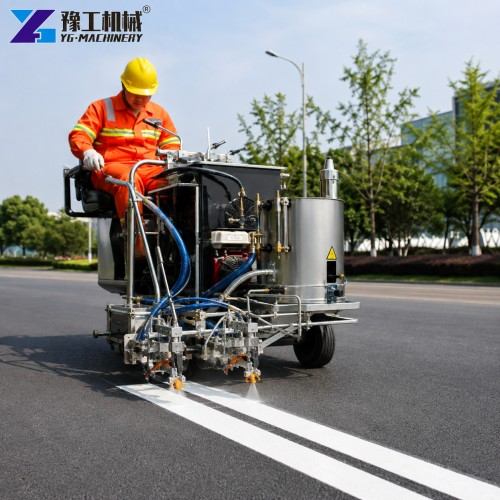

Is a Double-Gun Machine Worth the Extra Cost?
A double-gun system becomes valuable when its additional capability is actually used. Contractors handling larger sites may benefit from higher flow, wider working flexibility, or the ability to configure the guns for different marking tasks. When these advantages shorten project time, the higher initial investment can be easier to justify.
For smaller jobs, a single-gun machine may already complete the required work efficiently. It is lighter, simpler, and can be more convenient when operators regularly move between individual parking bays or short marking sections. Buying extra capacity that remains unused does not automatically lower your construction cost.
Instead of comparing only machine prices, compare the additional investment with the additional work the machine can complete. This gives you a much more useful picture of road marking machine cost.
The Lowest Quotation Is Not Always the Lowest Project Cost
A road marker continues to create costs after it reaches the job site. Paint consumption, fuel, cleaning materials, spray nozzles, filters, labor, transportation, and routine maintenance all influence the cost of every project. Operator technique also matters because excessive coating thickness or incorrect pressure can increase material consumption.
Equipment downtime should be considered as well. A small difference in purchase price may become insignificant if replacement parts are difficult to obtain or the machine repeatedly stops during busy projects. Contractors should therefore compare availability of common wear parts together with the initial road marker machine price.
Shipping is another easily overlooked item for overseas buyers. Machine weight, packing dimensions, destination port, shipping method, and additional equipment can all affect the landed cost. Ask suppliers to separate equipment and transportation costs so that different quotations can be compared fairly.
What Should a Complete Road Marker Quotation Include?
A professional quotation should make the equipment scope clear before you place an order. The machine model, engine, pump, gun quantity, included hoses, nozzles, spare parts, accessories, and delivery terms should all be identified. Thermoplastic quotations should also state whether the required heating and bead-spreading equipment is included.
Before choosing a supplier, confirm the following points:
- Exact machine model
- Cold paint or thermoplastic system
- Engine configuration
- Paint flow and pressure
- Number of spray guns
- Included hoses and nozzles
- Spare parts package
- Optional accessories
- Packing dimensions
- Warranty information
- Delivery terms
- Shipping cost
It is also useful to ask what is not included in the quotation. This often reveals the real difference between two apparently similar prices.
How to Choose Without Overpaying?
Start with your most common project rather than the largest project you may possibly receive in the future. Estimate the normal daily marking length, coating type, required line width, working surface, and number of projects completed each month. Then choose a machine with enough capacity to handle that workload comfortably.
If the business is expanding, some additional capacity can provide room for growth. However, buying a much larger machine simply because it looks more professional can increase investment without creating enough additional revenue. The best purchase is usually the configuration that matches regular work while leaving a reasonable operating margin.
For buyers who want to compare broader marking solutions, our Road Line Marking Machine range includes equipment for different pavement-marking applications.
Why Choose YG Machinery?
YG Machinery provides cold paint and thermoplastic road marking solutions for parking areas, industrial facilities, municipal projects, and road construction. Different configurations allow buyers to choose equipment according to coating type, workload, marking requirements, and project scale.
If you are checking road marker machine price, send us your paint type, required line width, daily workload, application, and destination country. YG can recommend a suitable configuration and prepare a quotation based on the equipment your project actually needs.
