A Helical Pile Driver installs screw foundations by applying controlled rotary torque while the mast guides the pile into the planned position. The YG-32S combines a 32 HP engine, 3500 N.m rotary head and 20 MPa hydraulic system on a 1.2-ton crawler chassis. Its compact 2300 x 1300 mm footprint helps contractors reach farms, greenhouses, solar sites and light building projects where a large piling rig would be difficult to move.
The machine should be selected as part of a foundation system, not as an isolated power unit. Pile diameter, shaft length, helix geometry, soil profile, design load and required installation torque must be reviewed together. A Screw Pile Driver can improve site organization when the crew has approved pile details and a defined quality record. A Ground Screw Machine also reduces the need to manage wet concrete on suitable projects, keeping the work zone easier to sequence.
Helical Pile Driver Configuration And Buyer Fit

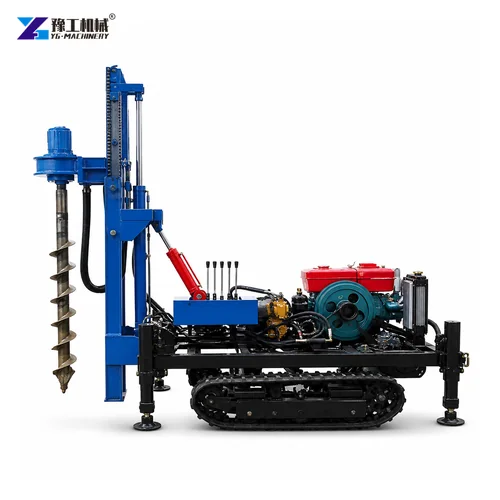

The YG-32S uses crawler travel, four hydraulic stabilizer legs and a vertical carriage with 2.8 meters of travel. This arrangement supports positioning on prepared ground and gives the operator a stable base before rotary installation begins. A 35-degree climbing rating helps site movement, but the access route still needs to be graded, checked for soft shoulders and kept clear of overhead or buried services.
Buyers should compare the 3500 N.m rotary-head rating with the foundation designer’s expected torque range. Torque is not simply a measure of engine size; it connects the equipment, pile geometry and soil response. The selected drive adaptor must match the pile head without excessive clearance. The quotation should therefore identify the pile connection, required tools and any extension or guidance components needed for the planned foundation.

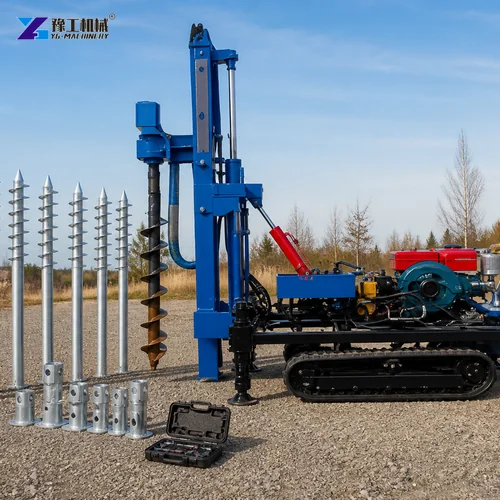

A Screw Pile Driver is most useful when pile positions are numerous enough to benefit from repeatable machine movement. Smaller dispersed jobs may value transport flexibility, while organized rows make crawler travel and layout control especially productive. The Ground Screw Machine package can be configured for greenhouse frames, solar structures, fencing, temporary facilities and other engineered foundations after the pile supplier confirms suitability.
Complete Helical Pile Driver Parameter Table
The following table contains the complete available YG-32S specification. Use every value when planning transport, access, hydraulic operation and installation scope. The 1-30 meter depth and 50-300 mm diameter entries describe the machine’s published working range; the actual screw foundation remains subject to pile design, site geology and the approved project method.
| Parameter | YG-32S Specification |
| Model | YG-32S |
| Rig Weight | 1.2 T |
| Dimensions (L x W x H) | 2300 x 1300 x 2200 mm |
| Engine Power | 32 HP |
| Rotary Head Torque | 3500 N.m |
| Hydraulic Oil Pump | Single Pump |
| Hydraulic Loading System | Cylinder Chain Pressure |
| Hydraulic Working Pressure | 20 MPa |
| Travel System | Crawler Gearbox |
| Travel Speed | 7-15 km/h |
| Cooling System | Hydraulic Cooler |
| Carriage Travel | 2.8 m |
| Piling Height | 1-3 m |
| Borehole Diameter | 50-300 mm |
| Borehole Depth | 1-30 m |
| Air Consumption | 6 m3/min |
| Suitable Rock Range | Medium Hard Rock, F=8-12 |
| Hydraulic Stabilizer Legs | 4 |
| Climbing Ability | 35 Degrees |
The 32 HP engine and single hydraulic pump support the travel, loading and rotary functions of this compact unit. A hydraulic cooler helps manage operating temperature during planned duty cycles. Buyers should confirm ambient conditions, fuel requirements, maintenance intervals and any destination-specific engine documentation before shipment. Final offers should also state whether the screw piles, adaptors and air system are included.
How Does A Screw Pile Driver Apply Foundation Torque?

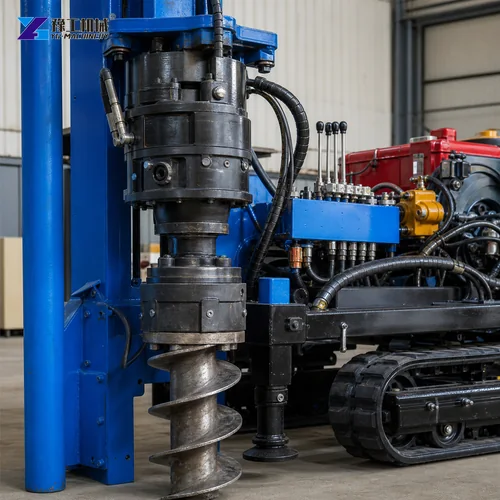

The drive head turns the pile while the carriage controls the installation direction and feed. The helix advances through the ground as the operator maintains alignment and watches the machine response. Installation torque should be recorded with the method required by the engineer. A sudden change can indicate a different soil layer, an obstruction or a pile condition that needs review before work continues.
Stable positioning protects the pile and the machine. Deploy the stabilizers on prepared bearing surfaces, establish the mast angle and verify the drive adaptor before applying load. The operator should avoid using the mast to force a misaligned pile back onto position. Correct the setup early, because a small angular error at the surface becomes a larger location error at depth.
The hydraulic working pressure is 20 MPa, but pressure is not a substitute for approved torque and pile limits. The project team must define stop criteria, maximum installation torque and response to refusal. This protects the foundation component while allowing the Helical Pile Driver to work within a documented installation plan.
Ground Screw Machine Applications And Foundation Types
Greenhouse and agricultural structures benefit from rapid row-by-row foundation work and reduced dependence on concrete curing. Solar arrays also require repeated positions across a large area, making layout control and efficient travel important. For cabins, light frames and temporary buildings, screw foundations can support a clean construction sequence when the foundation engineer approves the load and ground conditions.
The same equipment may support fencing, signs, walkways and utility structures, yet each application has different lateral, compression and uplift demands. The pile supplier should confirm shaft diameter, helix size, corrosion protection and connection detail. A Ground Screw Machine installs the specified component; it does not replace structural design or geotechnical assessment.
A compact Helical Pile Driver can work near existing operations when access, exclusion zones and underground services are controlled. Farms and industrial sites often remain active during installation. Separate machine travel from workers, animals, stored materials and public routes. Good logistics preserve the main benefit of a fast foundation process without creating avoidable delays around the work area.
Screw Pile Driver Access And Ground Checks
Begin with a site drawing that identifies pile coordinates, levels, finished connection heights and working direction. Mark buried utilities and verify permits before any ground penetration. Measure the narrowest gate, turning area, slope and surface bearing condition against the 2300 x 1300 x 2200 mm machine dimensions. Allow extra room for the pile, mast movement and safe operator visibility.
Soft topsoil, recent fill and steep transitions can affect stabilizer support and crawler movement. Prepare a firm route and use approved mats where required. A 35-degree climbing figure is a machine rating, not permission to travel on every slope. Cross slope, traction, edge distance and stopping control remain site-specific. The responsible supervisor should approve movement before the rig enters the installation row.
Confirm pile storage and handling as part of the setup. Long components need support that prevents bending, contamination and uncontrolled rolling. Arrange adaptors and tools by pile type. A well-planned Screw Pile Driver area lets the crew move from survey point to installation without searching for hardware or carrying components through the operating envelope.
Helical Pile Driver Operating Workflow
Use a repeatable sequence for every position: verify the survey mark, inspect the pile and drive connection, position the crawler, deploy the stabilizers, set the mast, connect the pile, begin slow rotation, monitor alignment and record the required installation data. Stop if the pile wobbles, the adaptor shifts, the machine support settles or the response differs sharply from the approved trial.
The operator and spotter need agreed signals and a clear exclusion zone. Workers should not stand under suspended components or beside a rotating pile. Keep hands away from the drive connection and isolate the machine before adjusting tooling. Weather, lighting and ground changes can alter visibility and support, so the pre-start inspection must reflect current conditions rather than yesterday’s setup.
After reaching the approved criterion, stop rotation, release the drive safely and verify the connection level and position. Protect completed piles from vehicle impact and record any deviation. Consistent records allow the project engineer to review the installed foundation and help the crew recognize trends before the next row begins.
Helical Pile Driver Maintenance And Ownership

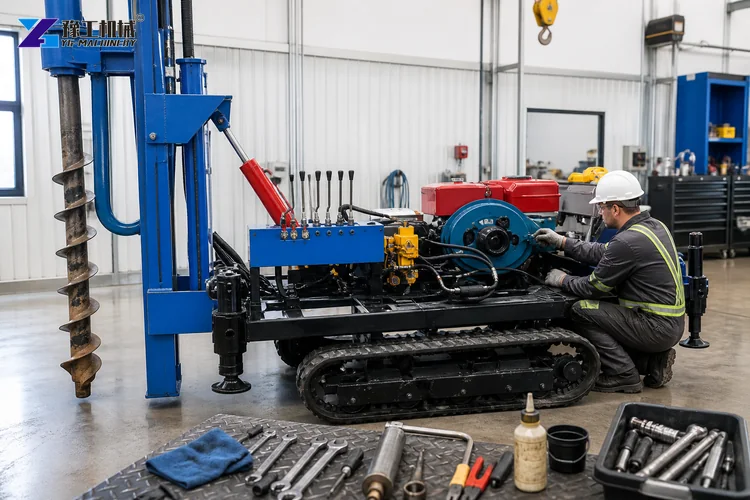

Daily inspection should cover the rotary head, drive adaptor, hydraulic hoses, fittings, cylinders, stabilizers, tracks, mast guides, cooling system and guarding. Look for leaks, loose fasteners, abnormal wear and damage from pile handling. Clean soil from access points before lubrication or service so contamination does not enter the hydraulic system.
Plan spare parts around normal wear and the destination’s support time. The starting package should identify filters, seals, hoses, adaptor wear parts, fasteners and service items for the engine and hydraulic system. Label parts against the exact YG-32S configuration. A low purchase price can lose its value if an essential connection or routine service item is unavailable when the installation schedule is active.

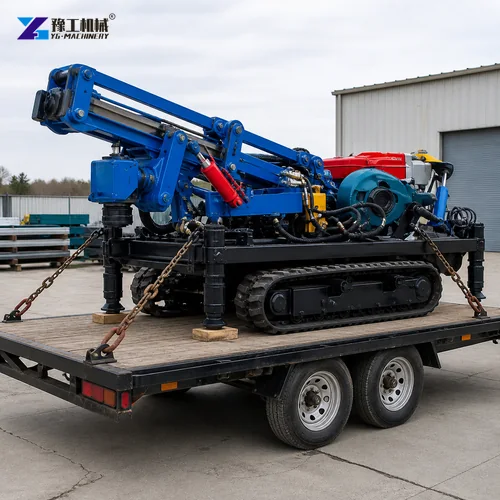

Transport cost should include the machine weight, dimensions, loading method, packaging and any pile or tooling shipment. Confirm whether piles travel with the rig or under a separate freight plan. The Helical Pile Driver should arrive with manuals, inspection records and a commissioning checklist so the receiving team can verify the complete scope before the first project.
Foundation Documentation And Warranty Scope
Ask for the operating manual, maintenance schedule, packing list, inspection record, engine information and available conformity documents before dispatch. Match each document to the machine serial number and quoted configuration. The receiving team should know which files travel with the equipment and which are supplied electronically. Early review gives the buyer time to prepare import, insurance and site records without delaying the shipment.
Warranty value depends on clear scope and a practical reporting process. Confirm the covered period, excluded wear items, required maintenance evidence and response channel for technical support. Keep service logs, photographs and replacement-part references with the machine record. When a question arises, accurate hours, symptoms and configuration details help the supplier respond faster than a general message that the equipment is not working.
Helical Pile Driver Purchase Checklist
Send the destination country, project type, soil report, pile drawing, shaft and helix sizes, planned depth, design loads, target torque, pile quantity, row spacing, access width, slope, altitude and expected working temperature. Add photographs of the site and proposed unloading area. These details let the sales and technical teams review whether the YG-32S operating envelope matches the foundation plan.
Request a quotation that separates the base machine, drive adaptors, pile handling tools, optional air equipment, screw piles, spare parts, packaging, freight, commissioning and training support. Confirm the Incoterm and buyer responsibilities. Review the existing solar pile driver page, the excavator pile driver range and the solar foundation guidance when comparing alternative installation systems.
Helical Pile Driver FAQ
The YG-32S rotary head is rated at 3500 N.m. The project engineer should confirm the required and maximum installation torque for the selected pile and soil conditions before work begins.
The published dimensions are 2300 x 1300 x 2200 mm and the rig weight is 1.2 tons. Allow additional operating room for pile handling, mast movement, stabilizers and safe access.
The machine has a published climbing ability of 35 degrees. Actual travel and setup depend on cross slope, ground bearing, traction, edges and the approved site method.
Provide the soil report, pile design, required torque, depth, load, pile quantity, layout, access conditions and destination. These details allow a YG specialist to review the complete configuration.
The quotation can identify the pile and tooling scope separately. Send the approved pile drawing so the adaptor, handling method and shipment package can be matched to the project.
Request A Helical Foundation Equipment Quote
Share your pile drawing, soil conditions, target torque, installation depth, site access and destination. A YG Machinery specialist can review the YG-32S configuration, required drive tools, spare parts and delivery scope for your project.
