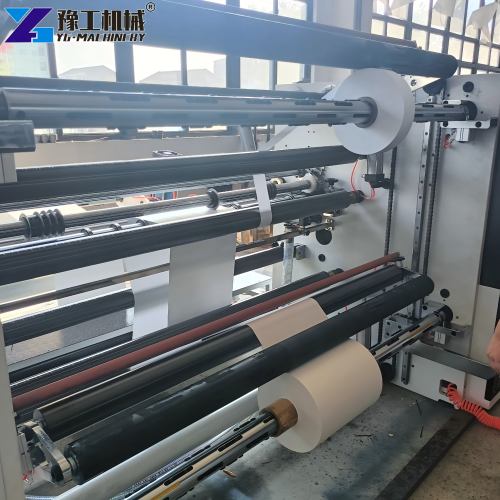

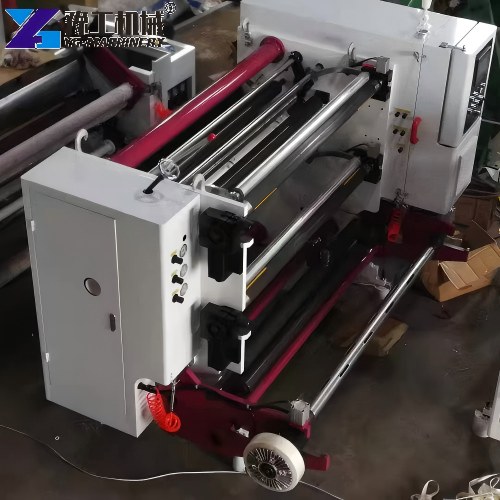

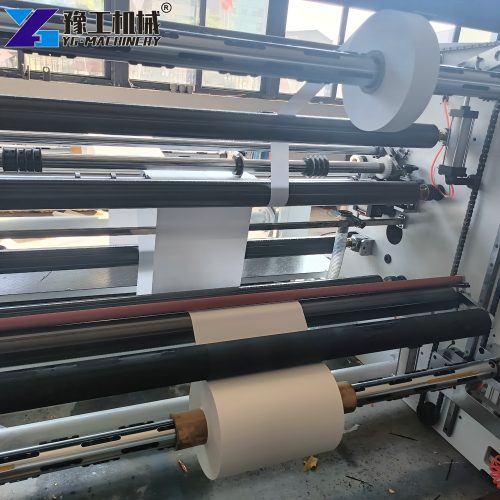

YG Machinery delivers an advanced automatic slitting machine built for high-speed converting of films, paper, and laminates. This equipment combines sturdy construction with smart control technology. It helps converters achieve clean cuts and tight roll quality every time. The machine handles web widths up to 1800mm and runs at speeds reaching 350 meters per minute. Many buyers compare the slitter rewinder machine price with long-term performance, and this model delivers strong value. Operators appreciate its user-friendly interface, while plant managers benefit from consistent output and reduced downtime. The design focuses on reliable operation, simple maintenance, and quick setup changes between jobs. With this automatic slitting machine, you get a solution that adapts to different materials without complicated adjustments.
Auto Slitting Machine Technical Parameters
Below you find the key specifications of our auto slitting machine series. These figures come from standard configurations and we offer custom options for specific needs.
| Model | YG- 1300 | YG- 1600 | YG- 1800 |
| Max width | 1300mm | 1600mm | 1800mm |
| Max Diameter for unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| Minimum width of slitting | 30mm | 30mm | 30mm |
| Max Diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| Speed | ≤350m/min | ≤350m/min | ≤350m/min |
| Total Power | 24kw | 26kw | 30kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 4000kg | 4500kg | 5500kg |
| Overall dimension(LxWxH) | 3300x3150x1930(mm) | 3300x3450x1930(mm) | 3300x3650x1930(mm) |
The table shows three workable widths that fit most converting operations. The auto slitting machine accepts master rolls up to 1400mm in diameter and rewinds finished rolls up to 1000mm. All models operate on a 380V/50Hz supply. The solid frame weight and compact footprint promise stability even at top speed. Customers evaluating the price often notice how the robust structure contributes to years of dependable service.
How an Automatic Roll Slitter Achieves High-Speed Precision?
Running at 350 meters per minute demands excellent engineering. Many people think high speed means lower cut quality, but our automatic roll slitter proves otherwise. Four core technologies work together to keep slit width accurate and roll edges clean.
Closed-Loop Tension Control
The system senses web tension in real time through precision load cells. It instantly adjusts unwind brake and rewind motor torque. You get steady material flow from start to finish. The web stays flat and does not wrinkle or stretch, which is critical when processing thin films. This controlled tension directly improves finished roll hardness and edge alignment.
Automatic Speed Compensation
Servo drives match the speed of all rotating sections during acceleration and deceleration. The master control calculates and synchronizes each shaft without manual intervention. As a result, cut length stays consistent even when the machine ramps up quickly. You avoid overshoot errors that lead to scrap. This compensation keeps every slit within a narrow tolerance window.
Intelligent Rewinding Technology
The rewind arms use taper tension profiles and adaptive pressure rollers. The system gradually reduces torque as roll diameter grows. This prevents telescoping and burrs on the roll edge. Operators can store multiple recipes for different materials. The automatic roll slitter recalls the right settings, which saves setup time and protects roll structure.
Real-Time Monitoring and Feedback
Laser sensors and ultrasonic units continuously measure unwind and rewind diameters. Edge guiding cameras detect web position and send correction signals to the steering frame. The PLC processes this data and displays clear status information. The operator sees warnings early and can respond before defects multiply. These monitoring tools give you peace of mind during long unattended runs.
YG Automatic Slitting Machine for Unmanned Production Lines
Modern converting plants seek full automation to reduce labor and improve consistency. Our automatic slitting machine serves as the core module in a lights-out slitting line. YG integrates upstream and downstream equipment for seamless material flow. Here are key stages that form the unmanned production trend.
- Automatic Loading
Shaftless hydraulic unwinds lift master rolls without crane assistance. A robotic arm positions the core and clamps it securely. The machine detects roll width and aligns automatically. Operators no longer need to handle heavy rolls manually, which lowers safety risks and speeds up changeover. - Automatic Slitting
The main slitter unit uses servo-driven knife holders that move into programmed positions. Recipes set clearances and overlap according to material thickness. The auto slitting machine starts the cycle, monitors tension, and adjusts speed independently. No manual measurement or trial passes are needed. - Automatic Inspection
Vision systems scan the web surface at full speed. They flag pinholes, gels, and coating streaks. Defect data links to roll length, so operators can remove bad sections during packaging. The inspection feedback also helps adjust slitting parameters for continuous improvement. - Automatic Packaging
After slitting, finished rolls exit the rewind shaft and move to a wrapping station. The line applies film, inserts labels, and can even stack rolls on pallets. This step eliminates repetitive manual packaging work and ensures consistent presentation. - AGV Logistics Integration
Automated guided vehicles carry master rolls to the unwind and transport finished pallets to the warehouse. The factory management system routes AGVs based on real-time inventory needs. This connection creates a continuous flow from raw material to shipping dock, with the machine at the center.
California, USA Case Study: The Slitter Rewinder Machine Price Advantage
A flexible packaging converter in California needed to replace older equipment. They processed BOPP and PET films for food labels and required a reliable machine.
Customer Background
The company operates a medium-sized converting facility serving West Coast brands. Their production volume was growing, and existing semi-automatic slitters could not keep pace. They wanted higher throughput without adding night shifts.
Customer Needs
The client required a slitter with minimum 300 m/min speed, consistent slit accuracy, and low maintenance. They also had a clear budget and carefully compared the price from several suppliers. Easy operator training and responsive support were important decision factors.
YG Solution
We recommended the YG-1600 automatic slitting machine with closed-loop tension control and intelligent rewind stations. Our team customized the knife holders for their typical slit widths and provided remote diagnostic access. Installation support and on-site training took place within two weeks.
Customer Feedback
The production manager shared: “We saw a 40% output increase in the first month. Setup time dropped and waste fell by nearly 6%. The slitter rewinder machine price made sense because reliability has been excellent. YG’s support team answered all questions quickly.” The fast return on investment confirmed the value of choosing a well-engineered automatic roll slitter.
YG Machinery – Your Reliable Automatic Slitting Machine Manufacturer and Beyond
YG Machinery builds dependable converting equipment and exports worldwide. Our slitter range covers standard and custom needs, and we back every project with installation guidance and after-sales care. Beyond slitting solutions, we supply complete production lines for other industries. Our diversified portfolio includes egg tray making machines, food trucks, generator sets, EV charging piles, tire recycling lines, and sandblasting rooms. This wide offering means we understand various manufacturing processes and can apply that knowledge to improve your slitting line.
If you evaluate the slitting equipment market, we invite you to contact us for a detailed quotation. Discuss the price for your required width and features. Our engineers will propose a configuration that matches your material and output goals. Reach out today to start the conversation and bring high-speed precision to your converting floor.
