A Chain Link Fence Machine turns raw wire into finished diamond mesh fencing through a continuous weaving process. YG Machinery designs this equipment for factories, workshops, and fencing contractors who need consistent mesh quality without manual labor. The machine feeds wire automatically, twists it into a diamond pattern, and winds the finished mesh onto a roll. Operators only set parameters and monitor the process, so production stays steady during long shifts. Wire diameter, mesh size, and roll width all adjust to match different fencing standards, letting one machine serve multiple markets. YG Machinery builds each unit with durable steel components for daily industrial use. Buyers gain a dependable tool that reduces labor costs and improves output over time.
Chain Link Fence Machine Parameters
| Model | YG-20-100 | YG-25-80 |
| Wire diameter | 1.6-4mm | 2-4mm |
| Mesh size | 20-100mm | 25-100mm |
| Mesh width | 0.5-4m | 0.5-4m |
| Speed | 70-80m²/h | 120-180m²/h |
| Mesh length | 30m, adjustable freely as per your request | |
| Mesh side | Knuckled and twisted, or knuckle, or twisted | |
| Raw material | Galvanized wire, PVC-coated wire, etc. | |
| Machine size | 4.2*2.2*1.7m | 6.7*1.43*1.8m |
| Weight | 2000kg | 4200kg |
| We can design the machine according to your wire diameter, mesh hole size, mesh width, and voltage. | ||
Both models handle galvanized wire and PVC-coated wire. Mesh length stays adjustable at 30 meters, and YG Machinery can customize this on request. Knuckled, twisted, or combined edge finishing options are also available. We can design the machine according to your wire diameter, mesh hole size, mesh width, and voltage.
Chain Link Making Machine Components and Working Principle
A Chain Link Making Machine contains several core parts that work together during production. Understanding these components helps operators run the equipment and troubleshoot issues quickly.
- Wire feeding system: This part unwinds raw wire from spools and feeds it into the weaving mechanism at steady tension.
- Mesh forming mechanism: Rotating dies bend the wire into a diamond pattern and control how tightly each shape forms.
- Drive motor and gearbox: The motor powers the weaving process. The gearbox adjusts speed for wire diameter and mesh size.
- Control panel: Operators set speed, mesh size, and other parameters here. Digital displays show real-time data for quick adjustments.
- Take-up roller: Finished mesh winds onto this roller automatically until it reaches the target length for replacement.
During operation, wire enters the feeding system, passes through the forming mechanism, and exits as woven mesh. This equipment repeats the cycle continuously, producing uniform mesh without manual intervention.
How the Wire Fence Making Machine Works in Production?
Setting up a Wire Fence Making Machine follows a straightforward sequence for smooth production.
- Wire preparation: Raw wire coils get loaded onto the feeding spools, and operators check diameter against machine specifications.
- Parameter setting: Mesh size, wire tension, and production speed get entered through the control panel to set the final pattern.
- Weaving process: The machine begins forming mesh automatically. Wire passes through forming dies, creating the diamond pattern link by link.
- Quality inspection: Operators check mesh uniformity periodically, catching tension or alignment issues early.
- Roll collection: Finished mesh winds onto the take-up roller until operators swap in a new roll at target length.
This process runs efficiently since the machine handles repetitive tasks. Operators focus instead on quality checks and parameter adjustments.

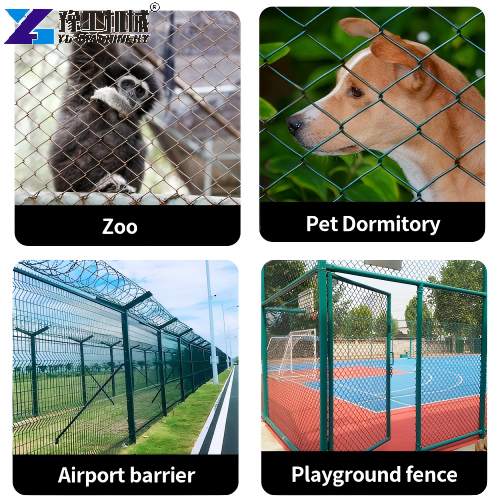

Applications of Automatic Chain Link Fence Machine
An Automatic Chain Link Fence Machine produces mesh suited for many settings. Buyers across various industries rely on this equipment for their fencing needs.
- Construction sites: Temporary fencing keeps unauthorized visitors out while maintaining site visibility for safety monitoring.
- Agricultural farms: Chain link mesh protects crops and livestock from wildlife intrusion while still allowing airflow and sunlight through.
- Sports facilities: Tennis courts, baseball fields, and playgrounds use this mesh for boundary fencing that withstands impact and weather.
- Highway and infrastructure projects: Roadside barriers and slope protection need durable mesh that resists corrosion and wind loads.
- Residential and commercial properties: Homeowners and businesses choose chain link fencing for affordable, low-maintenance boundaries.
Since mesh size and wire diameter adjust easily, one machine can supply products for all these markets at once.
Why Choose YG Chain Link Fence Machine?
YG Machinery designs equipment with several advantages for buyers seeking reliable production tools.
- Adjustable specifications: Wire diameter, mesh size, and roll width all adjust to customer requirements and fencing standards.
- Stable production speed: Output ranges from 70 to 180 square meters per hour, giving buyers flexibility for different order volumes.
- Durable construction: Steel frames and industrial-grade components withstand continuous operation, reducing downtime and maintenance costs.
- Simple operation: The control panel design makes training straightforward, so new operators can run the machine quickly.
- Custom engineering support: YG Machinery designs equipment based on specific wire diameter, mesh hole size, mesh width, and voltage needs.
These features help fencing manufacturers scale production while keeping quality consistent across every roll. The equipment design also keeps maintenance simple and parts accessible.
Frequently Asked Questions About Wire Fence Making Machine
This machine produces diamond-pattern wire mesh used for fencing applications. The weaving process shapes raw wire into interlocking links, creating a flexible yet sturdy mesh sheet.
Machine capacity depends on the model selected. YG Machinery offers models handling wire diameters from 1.6mm to 4mm, covering most common fencing wire specifications.
Yes, mesh size adjusts within the machine specifications. Buyers can set mesh hole dimensions between 20mm and 100mm to match specific project requirements.
Galvanized wire and PVC-coated wire both work well with this machine. This type resists rust effectively. The PVC coating adds color options and extra corrosion protection for outdoor use.
With proper maintenance, the equipment operates reliably for many years. Regular lubrication, timely part replacement, and routine inspection help extend machine lifespan.
Chain Link Fence Machine Professional Manufacturer – YG Machinery
YG Machinery manufactures wire mesh equipment for buyers across global markets. Our engineering team designs each unit based on real production needs. Beyond fencing equipment, YG Machinery also produces Egg Tray Manufacturing Machine lines and Paper Slitting Machine equipment. Mobile Kitchen Food Trailer units and Industrial Diesel Generator sets round out our range. We also supply Commercial Car Chargers, Tire Recycling Line systems, and Sand Blasting Chamber equipment. This wide range reflects our manufacturing capability across multiple industries. Every unit we ship undergoes quality testing before delivery, so buyers receive dependable equipment ready for immediate use. Our team also provides installation guidance and support after purchase. A single Chain Link Making Machine or a full production setup both benefit from our engineering expertise.
