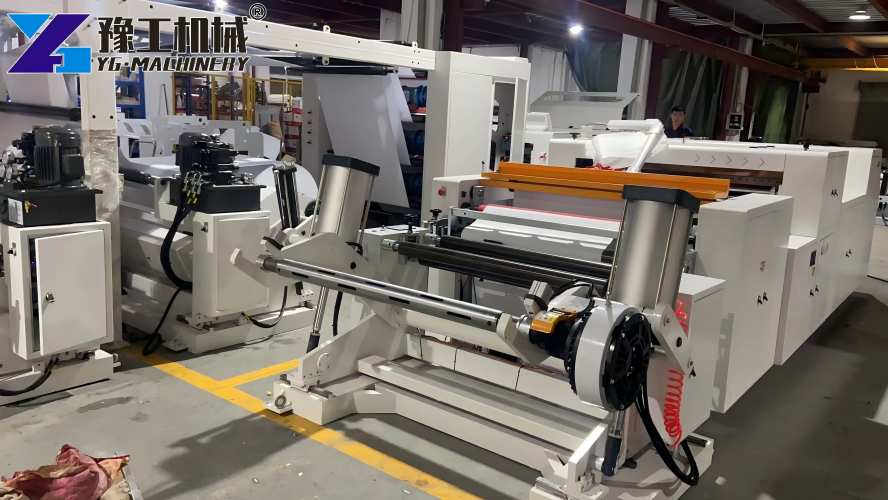

YG Machinery offers a reliable thermal paper slitting machine designed for high-output converting plants. This machine processes thermal jumbo rolls into narrow rolls for POS systems, ATMs, and ticket printers. It achieves clean cuts and tight rewinding. The slitter operates at speeds up to 350 meters per minute. You can choose working widths of 1300 mm, 1600 mm, or 1800 mm to match your production needs. Our design focuses on stability, low maintenance, and easy operation. Many converters use this equipment to produce millions of receipt rolls every year. We invite you to explore how our machine can help scale your business.
Technical Parameters of YG Thermal Paper Slitting Machine
We provide three standard models to fit different output requirements. Check the key specifications below.
| Model | YG- 1300 | YG- 1600 | YG- 1800 |
| Max width | 1300mm | 1600mm | 1800mm |
| Max Diameter for unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| Minimum width of slitting | 30mm | 30mm | 30mm |
| Max Diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| Speed | ≤350m/min | ≤350m/min | ≤350m/min |
| Total Power | 24kw | 26kw | 30kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 4000kg | 4500kg | 5500kg |
| Overall dimension(LxWxH) | 3300x3150x1930(mm) | 3300x3450x1930(mm) | 3300x3650x1930(mm) |

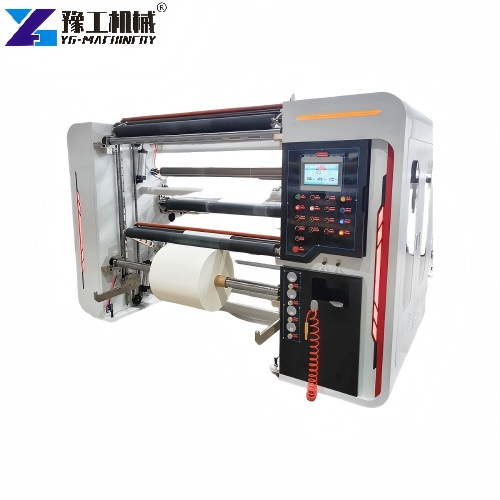

All models use servo-driven control and PLC touch screen. They also include automatic tension regulation and edge guiding. So you get consistent roll quality every time.
How a Thermal Paper Slitting Rewinding Machine Converts Jumbo Rolls into POS Paper?

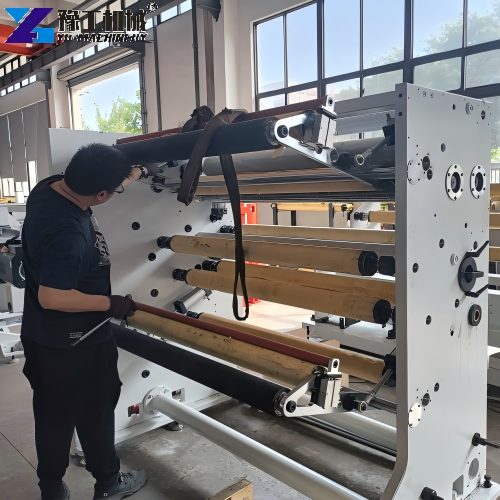

First, the factory receives large master rolls of thermal base paper. This paper has a heat-sensitive coating on one side. The coating changes color when heated by a thermal print head. Next, operators load the jumbo roll onto the unwinding shaft of the thermal paper slitting rewinding machine. The machine unwinds the web and passes it through a series of rollers. Circular blades or razor blades cut the web into narrower strips. The minimum slitting width reaches 30 mm.
After slitting, the strips travel to two rewinding shafts. There, the machine winds them into small, tight rolls. This slitting and rewinding action happens continuously. Then, the small rolls undergo print testing. A sample thermal printer checks the coating quality. If the image shows clear black marks, the rolls pass inspection. After testing, an automatic packaging system wraps each roll in shrink film. Workers box the rolls and add labels. Finally, the finished cash register rolls ship to supermarkets, banks, and retail stores. The entire process relies on a high-performance thermal paper slitting and rewinding machine to maintain efficiency and reduce waste.
Industries That Need a Thermal Paper Slitting Machine
Many sectors depend on converted thermal paper rolls. Here are the key users:
Supermarkets and retail chains need POS receipt rolls. They print millions of transactions daily. Banks and ATM operators use thermal journal rolls for record keeping. Restaurants and cafes rely on kitchen print rolls for order tickets. Medical facilities use thermal paper for ECG and ultrasound printouts. Lottery and gaming shops need secure ticket paper. Logistics companies use thermal labels for shipping. Each application demands uniform roll width, smooth edges, and reliable rewinding. A precise thermal paper slitting machine guarantees these qualities. YG Machinery serves all these industries with flexible configuration options.
Boost Daily Output with a Thermal Paper Roll Slitting Machine
To increase production, you can optimize several areas. Consider these four strategies:
High-Speed Slitting and Rewinding
Our thermal paper roll slitting machine runs at 350 m/min. Higher speed directly raises daily roll output. It processes wider jumbo rolls faster. You can produce more rolls per shift without sacrificing cut quality.
Automatic Roll Change and Duplex Rewinding
The machine features a dual-shaft rewinding station. It allows non-stop operation. While one shaft finishes a set, the other starts winding. Automatic roll change reduces downtime significantly. Your operators spend less time on manual changeovers.
Automated Packaging Integration
Connect the slitter to an automatic packaging line. The line wraps, seals, and stacks rolls without manual labor. This step removes a common bottleneck. Continuous flow from slitting to packaged carton boosts overall plant efficiency.
MES Production Management
Implement a Manufacturing Execution System. MES tracks real-time output, machine speed, and defect rates. Managers can spot slowdowns instantly. Data-driven decisions improve overall equipment effectiveness. A modern thermal paper roll slitting machine easily integrates with such systems via industrial Ethernet.
Adopting these methods helps converters achieve higher daily volumes with consistent quality.
How to Solve Static Issues in Thermal Paper Cutting Machine Workflow?
Static electricity can cause paper jams, dust attraction, and uneven rewinding. However, you can control it effectively. Apply these solutions:
Install Ionizing Bars
Place static eliminators close to the slitting blades and before the rewinding shafts. These bars release ions that neutralize surface charges. Our thermal paper cutting machine design includes mounting slots for easy installation.
Control Ambient Humidity
Maintain workshop humidity between 50% and 60% relative humidity. Moist air helps conduct electricity away from the paper web. Use industrial humidifiers during dry seasons. This simple step greatly reduces static buildup.
Ensure Proper Grounding
Connect all machine rollers, shafts, and frames to a reliable earth ground. A continuous path lets charges flow away safely. Check grounding connections during regular maintenance.
Optimize Slitting Speed and Blade Sharpness
Dull blades create more friction and static. Keep blades sharp. Also, adjust speed based on paper thickness. Thinner paper may require slightly lower speed to minimize static generation. A well-tuned thermal paper cutting machine experiences fewer static-related stops.
By combining these practices, you maintain smooth production and high roll quality.
Buy YG Thermal Paper Slitting Machine and Discover Our Full Product Range
YG Machinery delivers more than just slitting equipment. We are a comprehensive industrial machinery supplier. When you choose our thermal paper slitting machine, you get full life-cycle support. Our team assists with installation, training, and after-sales service. We also offer spare parts quickly.
Beyond paper converting, we manufacture other high-demand equipment. Our product line includes:
- Egg tray making machine
- Mobile Kitchen Food Trailer
- Industrial Diesel Generator
- EV charger (AC and DC)
- Tyre recycling line
- Sandblasting room
This means you can source multiple machines from one trusted partner. Contact YG today to request a quote for a thermal paper slitting machine. Let us help you expand your production capacity and enter new markets.
