A floor bead blaster prepares concrete and steel surfaces through controlled mechanical impact. It removes laitance, weak coatings, rust, dirt, and other surface contaminants. This concrete surface preparation machine also creates a uniform profile for new coatings or waterproof layers. Contractors can complete surface preparation without chemical stripping or extensive manual grinding.
Floor Bead Blaster Parameters
YG Machinery supplies three configurations for different working widths and project scales. Each concrete surface preparation machine configuration targets a different operating area. Actual output depends on surface hardness, coating thickness, travel speed, and operator control. Buyers should select a model according to both area and required surface profile.
| Working Width | 270 mm | 550/600 mm | 800 mm |
| Walking Speed | 0.5–20 m/min | 0.5–33 m/min | 0.5–33 m/min |
| Concrete Cleaning Efficiency | ≥180 m²/h | ≥400 m²/h | ≥600 m²/h |
| Steel Plate Cleaning Efficiency | 15–25 m²/h | 75–100 m²/h | 100–160 m²/h |
| Dust Pipe Diameter | 120 mm | 150 mm | 150 mm |
| Suggested Steel Shot Size | 1.2–1.5 mm | 1.5–1.8 mm | 1.5–1.8 mm |
| Shot Wheel Motor | 11 kW | 11 × 2 kW | 15 × 2 kW |
| Walking Motor | 0.5 kW | 1.5 kW | 1.5 kW |
| Machine Size | 1000 × 300 × 1100 mm | 1950 × 720/775 × 1400 mm | 1950 × 1020 × 1550 mm |
| Machine Weight | 150 kg | 570 kg | 700 kg |
| Power Requirement | 400 V, 50 Hz, 100 A CEE | 400 V, 50 Hz, 100 A CEE | 400 V, 50 Hz, 100 A CEE |
How Does the Machine Work?
The floor shot blasting machine uses a powered wheel to throw steel shot toward the floor. Each impact removes weak material and creates small surface indentations. A sealed housing keeps the blasting action close to the working area. The floor bead blaster then collects reusable shot and separates it from removed debris.

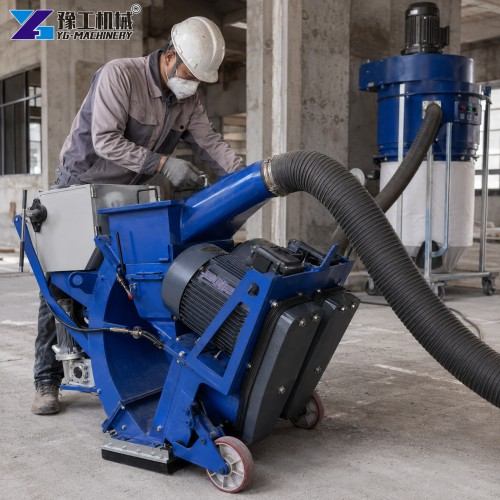

A connected dust collector creates negative pressure inside the blasting chamber. Dust and broken coating particles move through the collection line instead of spreading across the site. Recovered steel shot returns to the wheel for another cycle. This bead blaster floor machine uses a closed loop to reduce abrasive waste.
Travel speed directly affects the final surface condition. Slower movement increases impact density and produces a deeper profile. Faster movement creates lighter cleaning when the floor only needs minor preparation. Operators should test a small area before processing the complete surface.
Suitable Surface Preparation Projects
A floor bead blaster can support new construction, renovation, and industrial maintenance. It works best on dry, structurally sound surfaces with manageable unevenness. Project managers should inspect cracks, loose sections, and moisture before blasting. Damaged areas may need repair before mechanical preparation begins.
Common applications include:
- Removing concrete laitance before epoxy coating
- Roughening bridge decks before waterproofing
- Cleaning old factory and warehouse floors
- Removing traffic markings from roads

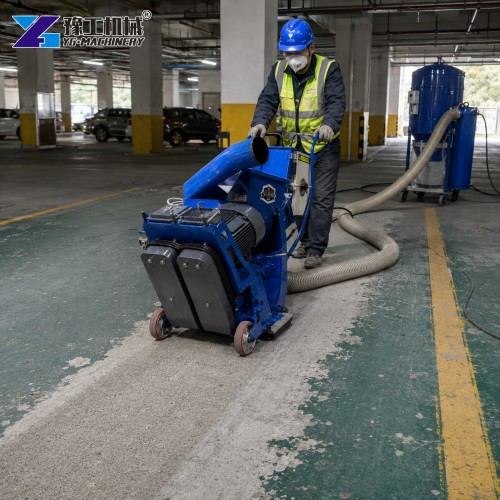

- Improving adhesion on parking garage floors
- Preparing steel plates for protective coating
- Restoring airport and port pavement surfaces
- Creating anti-slip texture on selected areas
Different applications require different surface profiles. A coating supplier may specify a target roughness or cleaning grade. The blasting speed, shot size, and number of passes should follow that requirement. Proper preparation can improve coating contact with the base material.
Floor Blasting Compared With Grinding
Grinding uses rotating diamond tools to cut and smooth the surface. Blasting uses high-speed steel shot to clean and texture the surface through impact. Grinding often produces a flatter finish, while blasting usually creates a more open profile. The correct method depends on the next construction process.
A floor shot blasting machine is useful when contractors need cleaning and roughening in one operation. It can remove laitance and expose a consistent texture across large areas. A matched dust collector also limits airborne dust during operation. However, corners and edges may still require separate handheld tools.
How to Choose the Right Working Width?
Working width affects productivity, access, transportation, and power demand. A wide machine can cover large open floors quickly but needs more operating space. A compact bead blaster floor machine moves easily through doors and corridors. Buyers should compare the narrowest access point with the total project size.

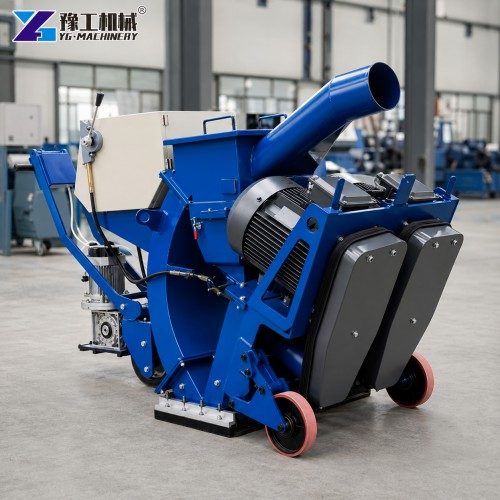

The YG-270 model has a 270 mm working width and a compact body. It suits small floors, narrow zones, repair areas, and projects with frequent movement. The YG550/600 uses two blast wheels and supports medium or large sites. The YG-850 offers higher output for open industrial floors, roads, and bridge decks.
Required productivity should not be calculated from floor area alone. Coating thickness, concrete hardness, and the target profile may reduce actual output. Multiple passes also increase total working time. A floor bead blaster should be selected using realistic site conditions rather than maximum theoretical capacity.
Steel Shot and Surface Profile Selection
Steel shot diameter influences cleaning strength and the final texture. Smaller shot creates more impacts and may leave a finer profile. Larger shot delivers stronger individual impact and can create deeper roughness. The machine and surface condition must support the selected abrasive size.
Operators should not mix excessive dust, broken shot, or foreign material into the recovery system. Contaminated abrasive can reduce blasting consistency and accelerate component wear. The separator, storage hopper, and magnetic components need regular inspection. Clean shot flow helps maintain even coverage across the working width.
Before large-scale work, test several travel speeds on a sample area. Compare the cleaned surface with coating or waterproofing requirements. Adjust the shot flow gradually instead of making large changes. Record the final settings so each working section receives similar treatment.
Operating Steps for Consistent Results
Good preparation begins before the machine starts. Remove loose debris, inspect the power connection, and confirm the dust collector capacity. Check the blast wheel, guard plates, directional sleeve, and seals. A complete inspection reduces uneven blasting and unexpected shutdowns.
During operation, follow these steps:
- Connect and test the dust collection system.
- Add clean steel shot within the recommended size range.
- Start the dust collector before the blast wheel.
- Lower the blasting chamber securely onto the surface.
- Move at a stable speed along straight, overlapping paths.
- Inspect the profile after the first test pass.
- Adjust speed or shot flow when necessary.
- Stop shot delivery before lifting the machine.
The operator should avoid sudden turns while blasting. Sharp movement can create visible marks or uneven surface texture. Overlapping passes need a consistent width throughout the work area. A planned route also reduces missed sections and unnecessary repeated blasting.
Maintenance and Wear-Part Control
A floor bead blaster works in a highly abrasive environment. Blast wheels, directional sleeves, liners, seals, and guard plates gradually wear during operation. Daily checks help identify thin or damaged parts before they affect the machine body. Timely replacement also supports stable blasting direction and shot recovery.
The dust collector needs equal attention. Blocked filters reduce suction and may allow dust to escape around the blasting chamber. Operators should empty the dust bin and follow the correct filter-cleaning procedure. Hoses must remain free from holes, crushing, and heavy internal buildup.
After each project, remove remaining abrasive and clean the recovery path. Inspect electrical cables, fasteners, wheels, and moving parts before storage. Keep the equipment in a dry area to reduce corrosion. Maintenance records can help predict future spare-part requirements.
Factors Affecting Floor Bead Blaster Price
Price changes with working width, blast-wheel quantity, motor power, and dust collector configuration. Larger machines normally require stronger electrical supply and more transportation space. Optional spare parts, cable length, and voltage customization also affect the quotation. Buyers should compare complete operating packages instead of machine bodies alone.
When requesting a quotation, provide the floor area, surface material, and existing coating condition. Include the required profile, daily schedule, and available power supply. Photos or short videos help the supplier understand the project. Clear information allows a more accurate model recommendation.
Why Choose YG Machinery?
YG Machinery provides compact and double-wheel blasting models for different project sizes. Our team can recommend a configuration based on floor area, access width, surface condition, and expected output. Complete systems can include the blasting machine, dust collector, hoses, and essential spare parts. Each unit is checked before delivery to support reliable operation.
Customers can also obtain selection guidance, operating support, and replacement-part assistance. The Concrete Floor Bead Blaster page provides detailed YG model information and technical data. Voltage and logistics options can be discussed for different markets. Contact YG Machinery for a floor bead blaster quotation based on your construction project.
