Cutting concrete piles on your job site does not have to be slow, costly, or dangerous. YG Machinery delivers a powerful hydraulic pile trimming tool that handles round and square piles in minutes. This attachment replaces outdated manual chipping methods and fits 20-ton to 40-ton excavators. In a recent U.S. bridge project, our solution cut pile trimming time by 60%. Read on to see how you can achieve similar results.
YG Pile Cutter Technical Parameters
The table below lists the main specifications for our hydraulic pile breaker. You can use this data to check if it matches your excavator and pile dimensions.
| Parameter Item | Specification Data |
| Module Quantity | 4-18 pieces |
| Round Pile Cutting Diameter | 400mm-2500mm |
| Square Pile Side Length | 250mm-650mm |
| Max System Working Pressure | 31.5MPa |
| Single Cylinder Maximum Pressure | 300KN |
| Maximum Single Cutting Height | ≤500mm |
| Matching Excavator Tonnage | 20T-40T |
| Optional Hydraulic Station | 15KW, 22KW, 30KW |
| Single Module Weight | 270KG-350KG |
Project Background: U.S. Bridge Foundation Pile Cutting
A contractor in Texas handled a large highway bridge expansion. The project required trimming over 600 concrete foundation piles. These piles ranged from 600mm to 1500mm in diameter. The original plan relied on manual labor with pneumatic hammers. Workers had to chip away excess concrete to expose the rebar. The general contractor soon realized that this method could not meet the tight eight-month schedule. They needed a faster, safer, and more consistent concrete pile cutting machine. That is when they contacted YG Machinery.
The Hidden Costs of Manual Pile Chipping
Slow and Labor-Intensive Process
Manual pile chipping is a tough and slow task. A crew often spends two to three hours on a single large pile. Delays on one pile cause a domino effect. Excavation, formwork, and pouring all get pushed back. For 600 piles, the math quickly shows a serious schedule problem.
Safety Risks on the Job Site
Workers using handheld breakers face flying concrete debris, dust, and intense vibration. Fatigue leads to mistakes. Hand-arm vibration syndrome and eye injuries are real threats. Every safety incident brings paperwork, potential fines, and low team morale. A concrete pile cutting machine removes workers from the direct hazard zone.
Poor Cut Quality and Extra Work
Manual chipping rarely produces a clean, level cut surface. Irregular breaks and cracked pile bodies are common. Repairing this damage adds hours of unplanned work and wastes materials. This also creates tension between the excavation crew and the project manager. You need a concrete pile cutting machine that delivers a clean break in one pass.
How a Hydraulic Pile Breaker Solved the Problem
Our team recommended a modular hydraulic pile breaker matched to a 30-ton excavator already on site. This hydraulic attachment changed the entire workflow.
Easy Setup with Modular Design

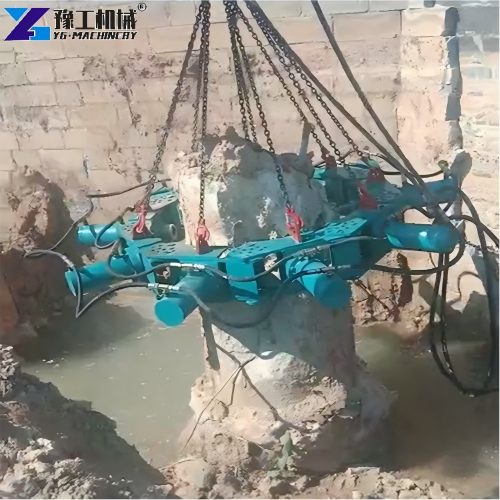

The crew connected the modules around the pile in under 15 minutes. They simply pinned the modules together and attached the hydraulic hoses. The modular design meant one excavator could handle different pile diameters by simply adding or removing modules. This flexibility proved vital as pile sizes varied across the bridge piers.
Fast, Precise Cuts in One Pass
The hydraulic pile breaker uses multiple cylinders to apply even pressure around the pile. The operator activates the system from inside the cab. In a single smooth action, the concrete cracks at the cut line. This method leaves the rebar undamaged and ready for the next construction step. The whole cutting cycle takes only five to ten minutes.
Safer Operation from the Excavator Cab
The excavator operator stays protected inside the cab during the entire process. Ground crew members stand at a safe distance. This one change eliminated direct exposure to dust and flying fragments. A safer job site also means better compliance with OSHA standards on U.S. projects.
Data-Driven Results: 60% Time Savings
We tracked the performance of the pile trimming equipment over one month. The numbers clearly show the upgrade.
| Metric | Manual Chipping | YG Concrete Pile Cutter |
| Average time per 1200mm pile | 2.5 hours | 1 hour |
| Piles completed per 10-hour shift | 4 | 10 |
| Workers required at pile head | 3 | 1 (operator) |
| Rework due to irregular cuts | Frequent | None |
| Safety incidents related to chipping | 2 minor injuries | 0 |
The team cut pile trimming time by 60%. They completed pile cutting work two weeks ahead of schedule. The project manager reallocated labor to other critical tasks, boosting overall productivity.
What Our U.S. Client Said
The site superintendent shared his feedback with us:
“We used to dread the pile chipping phase. It was noisy, dusty, and always behind schedule. YG’s hydraulic pile breaker turned it into the smoothest part of our day. The 60% time saving is real. My crew learned the setup in one morning. I wish we had found this concrete pile cutter years ago.”
— Project Superintendent, Texas Bridge Project
FAQ: Concrete Pile Cutter & Pile Chipping Machine

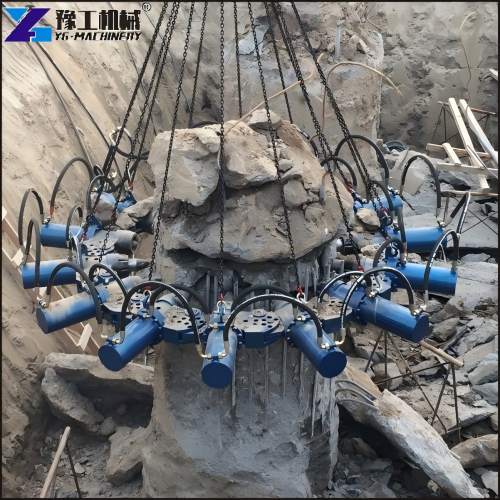

It is a hydraulic attachment that breaks off the top of a concrete pile cleanly. The modular ring clamps around the pile. Powered by the excavator’s hydraulic system, multiple cylinders push chisels inward. This applies uniform pressure that cracks the concrete at the desired cut line. The result is a level pile head with rebar intact.
Our standard hydraulic concrete pile breaker fits excavators from 20 tons to 40 tons. This range covers most urban construction, highway, and bridge foundation needs. Lighter excavators cannot supply enough hydraulic flow. Heavier machines require a custom-engineered solution. Our team helps you verify a match based on your excavator’s auxiliary circuit flow and pressure.
Yes. By adjusting the module arrangement, the same concrete pile cutting machine handles round piles with diameters of 400mm to 2500mm and square piles with side lengths of 250mm to 650mm. You only need to change the module combination, not the entire attachment. This saves equipment cost on mixed-foundation projects.
Daily maintenance is simple. Grease all pivot pins and chisel tips after each shift. Inspect hydraulic hoses for cuts or abrasion. Check the chisel edges for wear and rotate or replace them as needed. Weekly, verify the torque on all mounting bolts. This routine keeps your pile chipping machine working reliably and prevents sudden downtime.
